class PostData {
  // 圖片使用Resource資源，需用户自定義
  avatar: Resource = $r('app.media.background');
  name: string = '';
  message: string = '';
  images: Resource[] = [];
}

@Entry
@Component
struct ExpandGroupDemo {
  @State isExpand: boolean = false;
  @State @Watch('onItemClicked') selectedIndex: number = -1;

  // 數組中圖片均使用Resource資源，需用户自定義

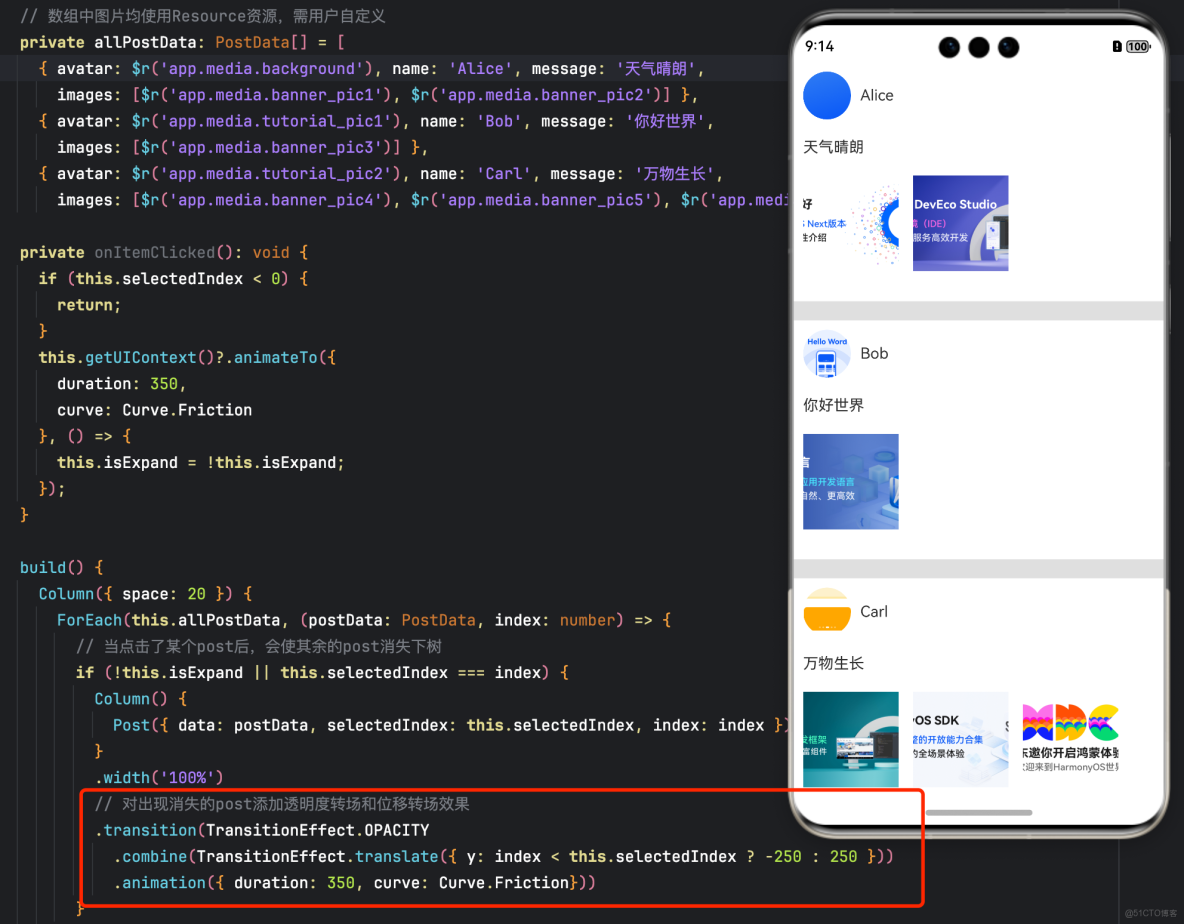

  private allPostData: PostData[] = [
    { avatar: $r('app.media.background'), name: 'Alice', message: '天氣晴朗',
      images: [$r('app.media.banner_pic1'), $r('app.media.banner_pic2')] },
    { avatar: $r('app.media.tutorial_pic1'), name: 'Bob', message: '你好世界',
      images: [$r('app.media.banner_pic3')] },
    { avatar: $r('app.media.tutorial_pic2'), name: 'Carl', message: '萬物生長',
      images: [$r('app.media.banner_pic4'), $r('app.media.banner_pic5'), $r('app.media.banner_pic0')] }];

  private onItemClicked(): void {
    if (this.selectedIndex < 0) {
      return;
    }
    this.getUIContext()?.animateTo({
      duration: 350,
      curve: Curve.Friction
    }, () => {
      this.isExpand = !this.isExpand;
    });
  }

  build() {
    Column({ space: 20 }) {
      ForEach(this.allPostData, (postData: PostData, index: number) => {
        // 當點擊了某個post後，會使其餘的post消失下樹
        if (!this.isExpand || this.selectedIndex === index) {
          Column() {
            Post({ data: postData, selectedIndex: this.selectedIndex, index: index })
          }
          .width('100%')
          // 對出現消失的post添加透明度轉場和位移轉場效果
          .transition(TransitionEffect.OPACITY
            .combine(TransitionEffect.translate({ y: index < this.selectedIndex ? -250 : 250 }))
            .animation({ duration: 350, curve: Curve.Friction}))
        }
      }, (postData: PostData, index: number) => index.toString())
    }
    .size({ width: '100%', height: '100%' })
    .backgroundColor('#40808080')
  }
}

@Component
export default struct  Post {
  @Link selectedIndex: number;

  @Prop data: PostData;
  @Prop index: number;

  @State itemHeight: number = 250;
  @State isExpand: boolean = false;
  @State expandImageSize: number = 100;
  @State avatarSize: number = 50;

  build() {
    Column({ space: 20 }) {
      Row({ space: 10 }) {
        Image(this.data.avatar)
          .size({ width: this.avatarSize, height: this.avatarSize })
          .borderRadius(this.avatarSize / 2)
          .clip(true)

        Text(this.data.name)
      }
      .justifyContent(FlexAlign.Start)

      Text(this.data.message)

      Row({ space: 15 }) {
        ForEach(this.data.images, (imageResource: Resource, index: number) => {
          Image(imageResource)
            .size({ width: this.expandImageSize, height: this.expandImageSize })
        }, (imageResource: Resource, index: number) => index.toString())
      }

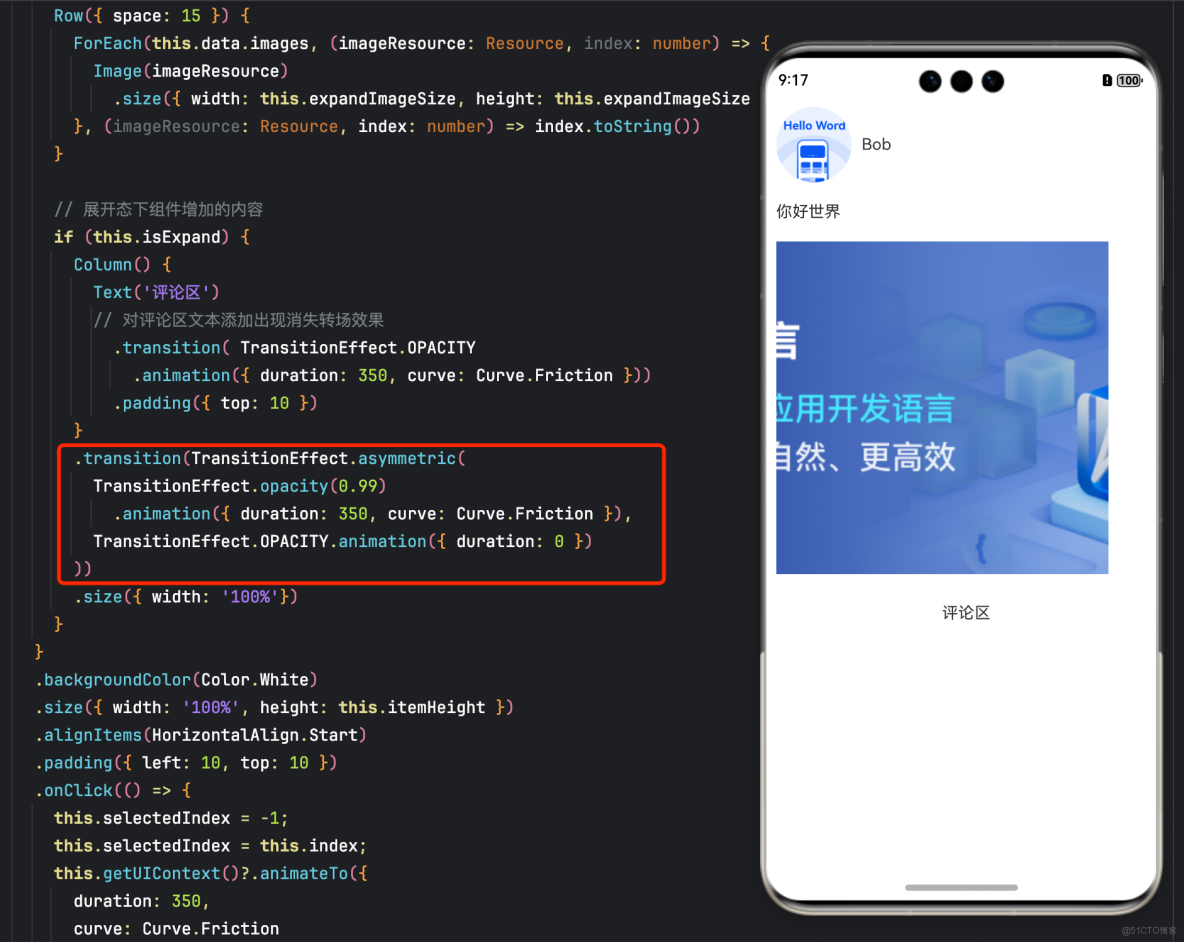

      // 展開態下組件增加的內容
      if (this.isExpand) {
        Column() {
          Text('評論區')
          // 對評論區文本添加出現消失轉場效果
            .transition( TransitionEffect.OPACITY
              .animation({ duration: 350, curve: Curve.Friction }))
            .padding({ top: 10 })
        }
        .transition(TransitionEffect.asymmetric(
          TransitionEffect.opacity(0.99)
            .animation({ duration: 350, curve: Curve.Friction }),
          TransitionEffect.OPACITY.animation({ duration: 0 })
        ))
        .size({ width: '100%'})
      }
    }
    .backgroundColor(Color.White)
    .size({ width: '100%', height: this.itemHeight })
    .alignItems(HorizontalAlign.Start)
    .padding({ left: 10, top: 10 })
    .onClick(() => {
      this.selectedIndex = -1;
      this.selectedIndex = this.index;
      this.getUIContext()?.animateTo({
        duration: 350,
        curve: Curve.Friction
      }, () => {
        // 對展開的post做寬高動畫，並對頭像尺寸和圖片尺寸加動畫
        this.isExpand = !this.isExpand;
        this.itemHeight = this.isExpand ? 780 : 250;
        this.avatarSize = this.isExpand ? 75: 50;
        this.expandImageSize = (this.isExpand && this.data.images.length > 0)
          ? (360 - (this.data.images.length + 1) * 15) / this.data.images.length : 100;
      })
    })
  }
}

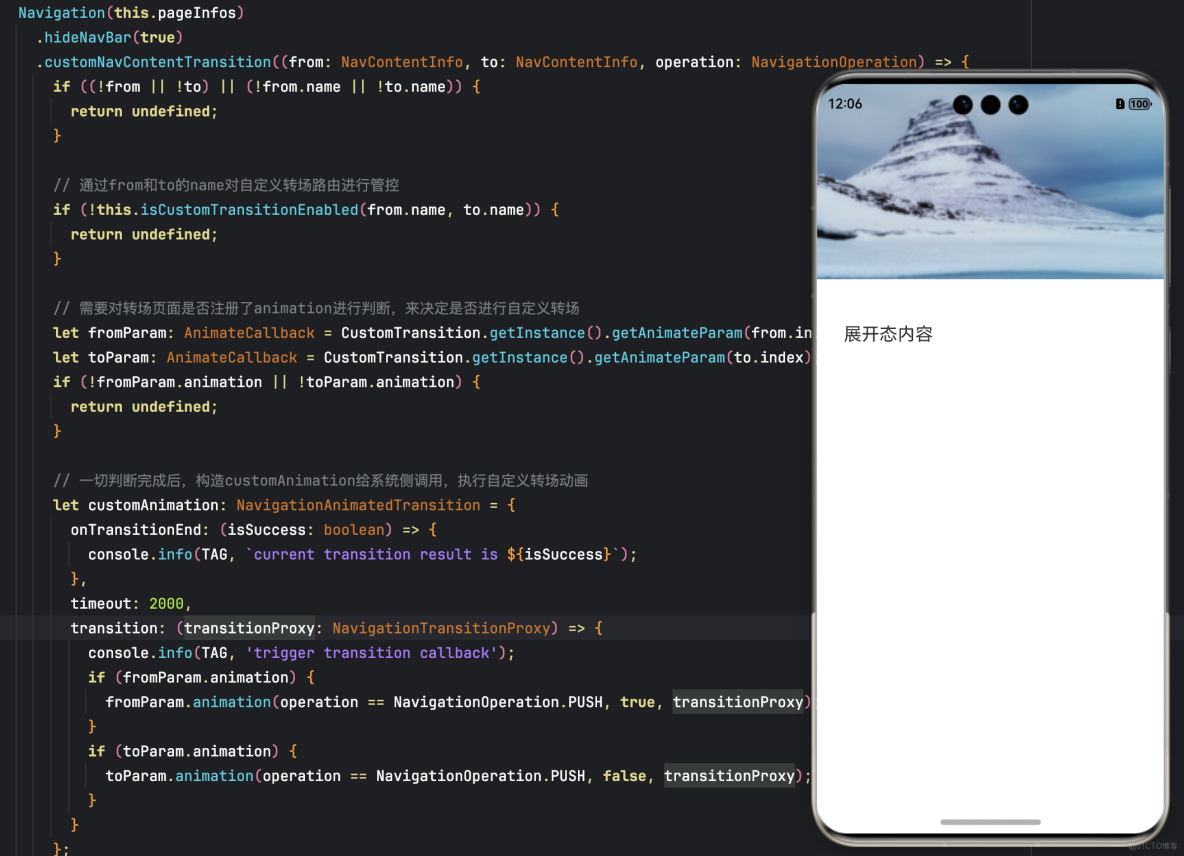

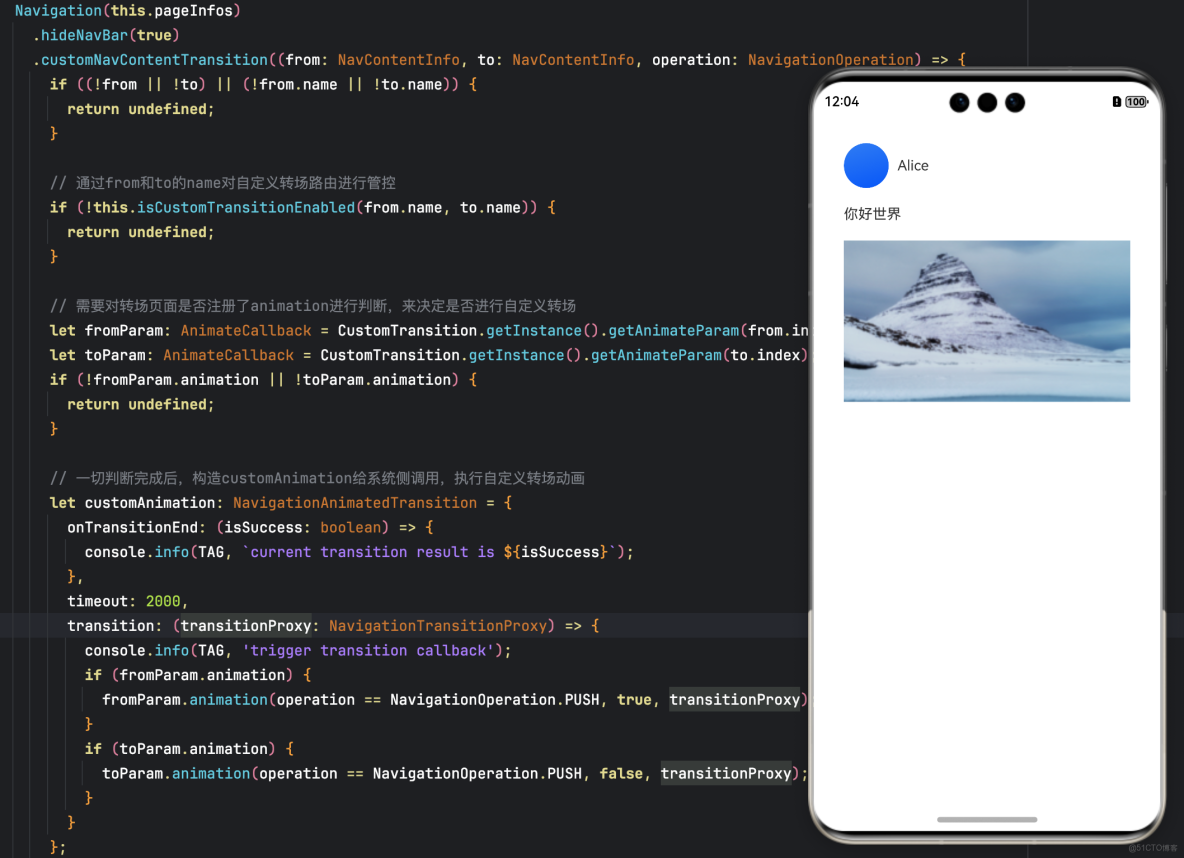

customNavContentTransition(delegate:(from: NavContentInfo, to: NavContentInfo, operation: NavigationOperation) => NavigationAnimatedTransition | undefined)

├──entry/src/main/ets                 // 代碼區
│  ├──CustomTransition
│  │  ├──AnimationProperties.ets      // 一鏡到底轉場動畫封裝
│  │  └──CustomNavigationUtils.ets    // Navigation自定義轉場動畫配置
│  ├──entryability
│  │  └──EntryAbility.ets             // 程序入口類
│  ├──NodeContainer
│  │  └──CustomComponent.ets          // 自定義佔位節點
│  ├──pages
│  │  ├──Index.ets                    // 導航頁面
│  │  ├──PageOne.ets                  // 縮略圖頁面
│  │  └──PageTwo.ets                  // 全屏展開頁面
│  └──utils
│     ├──ComponentAttrUtils.ets       // 組件位置獲取
│     └──WindowUtils.ets              // 窗口信息
└──entry/src/main/resources           // 資源文件

// 配置Navigation自定義轉場動畫
export interface AnimateCallback {
  animation: ((isPush: boolean, isExit: boolean, transitionProxy: NavigationTransitionProxy) => void | undefined)
    | undefined;
  timeout: (number | undefined) | undefined;
}

const customTransitionMap: Map<number, AnimateCallback> = new Map();

export class CustomTransition {
  private constructor() {};

  static delegate = new CustomTransition();

  static getInstance() {
    return CustomTransition.delegate;
  }

  // 註冊頁面的動畫回調，name是註冊頁面的動畫的回調
  // animationCallback是需要執行的動畫內容，timeout是轉場結束的超時時間
  registerNavParam(
    name: number,
    animationCallback: (operation: boolean, isExit: boolean, transitionProxy: NavigationTransitionProxy) => void,
    timeout: number): void {
    if (customTransitionMap.has(name)) {
      let param = customTransitionMap.get(name);
      if (param != undefined) {
        param.animation = animationCallback;
        param.timeout = timeout;
        return;
      }
    }
    let params: AnimateCallback = { timeout: timeout, animation: animationCallback };
    customTransitionMap.set(name, params);
  }

  unRegisterNavParam(name: number): void {
    customTransitionMap.delete(name);
  }

  getAnimateParam(name: number): AnimateCallback {
    let result: AnimateCallback = {
      animation: customTransitionMap.get(name)?.animation,
      timeout: customTransitionMap.get(name)?.timeout,
    };
    return result;
  }
}

// 獲取組件相對窗口的位置
import { componentUtils, UIContext } from '@kit.ArkUI';
import { JSON } from '@kit.ArkTS';

export class ComponentAttrUtils {
  // 根據組件的id獲取組件的位置信息
  public static getRectInfoById(context: UIContext, id: string): RectInfoInPx {
    if (!context || !id) {
      throw Error('object is empty');
    }
    let componentInfo: componentUtils.ComponentInfo = context.getComponentUtils().getRectangleById(id);

    if (!componentInfo) {
      throw Error('object is empty');
    }

    let rstRect: RectInfoInPx = new RectInfoInPx();
    const widthScaleGap = componentInfo.size.width * (1 - componentInfo.scale.x) / 2;
    const heightScaleGap = componentInfo.size.height * (1 - componentInfo.scale.y) / 2;
    rstRect.left = componentInfo.translate.x + componentInfo.windowOffset.x + widthScaleGap;
    rstRect.top = componentInfo.translate.y + componentInfo.windowOffset.y + heightScaleGap;
    rstRect.right =
      componentInfo.translate.x + componentInfo.windowOffset.x + componentInfo.size.width - widthScaleGap;
    rstRect.bottom =
      componentInfo.translate.y + componentInfo.windowOffset.y + componentInfo.size.height - heightScaleGap;
    rstRect.width = rstRect.right - rstRect.left;
    rstRect.height = rstRect.bottom - rstRect.top;
    return {
      left: rstRect.left,
      right: rstRect.right,
      top: rstRect.top,
      bottom: rstRect.bottom,
      width: rstRect.width,
      height: rstRect.height
    }
  }
}

export class RectInfoInPx {
  left: number = 0;
  top: number = 0;
  right: number = 0;
  bottom: number = 0;
  width: number = 0;
  height: number = 0;
}

export class RectJson {
  $rect: Array<number> = [];
}

// WindowUtils.ets
// 窗口信息
import { window } from '@kit.ArkUI';

export class WindowUtils {
  public static window: window.Window;
  public static windowWidth_px: number;
  public static windowHeight_px: number;
  public static topAvoidAreaHeight_px: number;
  public static navigationIndicatorHeight_px: number;
}

// CustomComponent.ets
// 自定義佔位節點，跨容器遷移能力
import { BuilderNode, FrameNode, NodeController } from '@kit.ArkUI';

@Builder
function CardBuilder() {
  // 圖片使用Resource資源，需用户自定義
  Image($r("app.media.card"))
    .width('100%')
    .id('card')
}

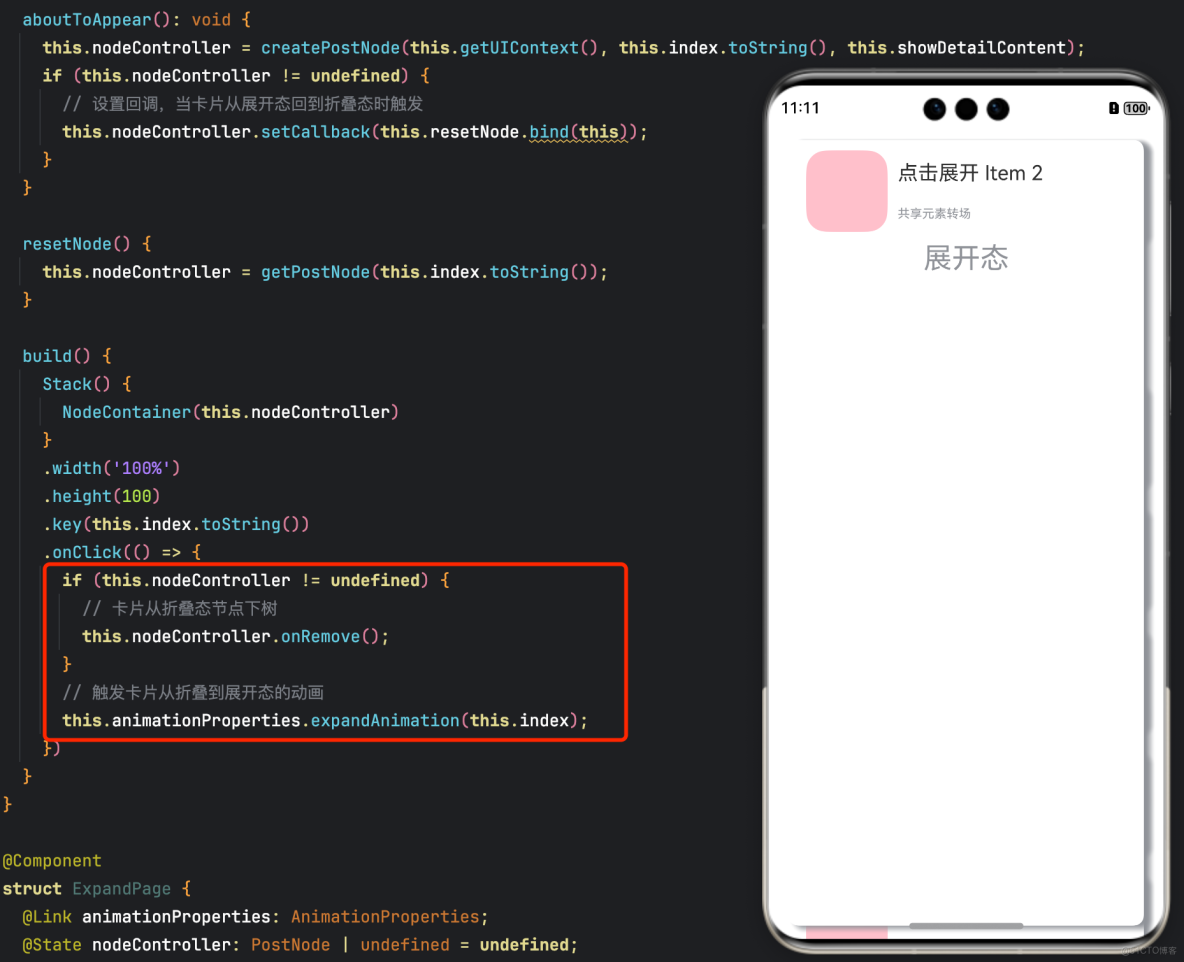

export class MyNodeController extends NodeController {
  private CardNode: BuilderNode<[]> | null = null;
  private wrapBuilder: WrappedBuilder<[]> = wrapBuilder(CardBuilder);
  private needCreate: boolean = false;
  private isRemove: boolean = false;

  constructor(create: boolean) {
    super();
    this.needCreate = create;
  }

  makeNode(uiContext: UIContext): FrameNode | null {
    if(this.isRemove == true){
      return null;
    }
    if (this.needCreate && this.CardNode == null) {
      this.CardNode = new BuilderNode(uiContext);
      this.CardNode.build(this.wrapBuilder)
    }
    if (this.CardNode == null) {
      return null;
    }
    return this.CardNode!.getFrameNode()!;
  }

  getNode(): BuilderNode<[]> | null {
    return this.CardNode;
  }

  setNode(node: BuilderNode<[]> | null) {
    this.CardNode = node;
    this.rebuild();
  }

  onRemove() {
    this.isRemove = true;
    this.rebuild();
    this.isRemove = false;
  }

  init(uiContext: UIContext) {
    this.CardNode = new BuilderNode(uiContext);
    this.CardNode.build(this.wrapBuilder)
  }
}

let myNode: MyNodeController | undefined;

export const createMyNode =
  (uiContext: UIContext) => {
    myNode = new MyNodeController(false);
    myNode.init(uiContext);
  }

export const getMyNode = (): MyNodeController | undefined => {
  return myNode;
}

// AnimationProperties.ets
// 一鏡到底轉場動畫封裝
import { curves, UIContext } from '@kit.ArkUI';
import { RectInfoInPx } from '../utils/ComponentAttrUtils';
import { WindowUtils } from '../utils/WindowUtils';
import { MyNodeController } from '../NodeContainer/CustomComponent';

const TAG: string = 'AnimationProperties';

const DEVICE_BORDER_RADIUS: number = 34;

// 將自定義一鏡到底轉場動畫進行封裝，其他界面也需要做自定義一鏡到底轉場的話，可以直接複用，減少工作量
@Observed
export class AnimationProperties {
  public navDestinationBgColor: ResourceColor = Color.Transparent;
  public translateX: number = 0;
  public translateY: number = 0;
  public scaleValue: number = 1;
  public clipWidth: Dimension = 0;
  public clipHeight: Dimension = 0;
  public radius: number = 0;
  public positionValue: number = 0;
  public showDetailContent: boolean = false;
  private uiContext: UIContext;

  constructor(uiContext: UIContext) {
    this.uiContext = uiContext
  }

  public doAnimation(cardItemInfo_px: RectInfoInPx, isPush: boolean, isExit: boolean,
                     transitionProxy: NavigationTransitionProxy, extraTranslateValue: number, prePageOnFinish: (index: MyNodeController) => void, myNodeController: MyNodeController | undefined): void {
    // 首先計算卡片的寬高與窗口寬高的比例
    let widthScaleRatio = cardItemInfo_px.width / WindowUtils.windowWidth_px;
    let heightScaleRatio = cardItemInfo_px.height / WindowUtils.windowHeight_px;
    let isUseWidthScale = widthScaleRatio > heightScaleRatio;
    let initScale: number = isUseWidthScale ? widthScaleRatio : heightScaleRatio;

    let initTranslateX: number = 0;
    let initTranslateY: number = 0;
    let initClipWidth: Dimension = 0;
    let initClipHeight: Dimension = 0;
    // 使得PageTwo卡片向上擴到狀態欄
    let initPositionValue: number = -this.uiContext.px2vp(WindowUtils.topAvoidAreaHeight_px + extraTranslateValue);

    if (isUseWidthScale) {
      initTranslateX = this.uiContext.px2vp(cardItemInfo_px.left - (WindowUtils.windowWidth_px - cardItemInfo_px.width) / 2);
      initClipWidth = '100%';
      initClipHeight = this.uiContext.px2vp((cardItemInfo_px.height) / initScale);
      initTranslateY = this.uiContext.px2vp(cardItemInfo_px.top - ((this.uiContext.vp2px(initClipHeight) - this.uiContext.vp2px(initClipHeight) * initScale) / 2));
    } else {
      initTranslateY = this.uiContext.px2vp(cardItemInfo_px.top - (WindowUtils.windowHeight_px - cardItemInfo_px.height) / 2);
      initClipHeight = '100%';
      initClipWidth = this.uiContext.px2vp((cardItemInfo_px.width) / initScale);
      initTranslateX = this.uiContext.px2vp(cardItemInfo_px.left - (WindowUtils.windowWidth_px / 2 - cardItemInfo_px.width / 2));
    }

    // 轉場動畫開始前通過計算scale、translate、position和clip height & width，確定節點遷移前後位置一致
    console.info(TAG, 'initScale: ' + initScale + ' initTranslateX ' + initTranslateX +
    ' initTranslateY ' + initTranslateY + ' initClipWidth ' + initClipWidth +
    ' initClipHeight ' + initClipHeight + ' initPositionValue ' + initPositionValue);
    // 轉場至新頁面
    if (isPush && !isExit) {
      this.scaleValue = initScale;
      this.translateX = initTranslateX;
      this.clipWidth = initClipWidth;
      this.clipHeight = initClipHeight;
      this.translateY = initTranslateY;
      this.positionValue = initPositionValue;

      this.uiContext?.animateTo({
        curve: curves.interpolatingSpring(0, 1, 328, 36),
        onFinish: () => {
          if (transitionProxy) {
            transitionProxy.finishTransition();
          }
        }
      }, () => {
        this.scaleValue = 1.0;
        this.translateX = 0;
        this.translateY = 0;
        this.clipWidth = '100%';
        this.clipHeight = '100%';
        // 頁面圓角與系統圓角一致
        this.radius = DEVICE_BORDER_RADIUS;
        this.showDetailContent = true;
      })

      this.uiContext?.animateTo({
        duration: 100,
        curve: Curve.Sharp,
      }, () => {
        // 頁面由透明逐漸變為設置背景色
        this.navDestinationBgColor = '#00ffffff';
      })

      // 返回舊頁面
    } else if (!isPush && isExit) {

      this.uiContext?.animateTo({
        duration: 350,
        curve: Curve.EaseInOut,
        onFinish: () => {
          if (transitionProxy) {
            transitionProxy.finishTransition();
          }
          prePageOnFinish(myNodeController);
          // 自定義節點從PageTwo下樹
          if (myNodeController != undefined) {
            (myNodeController as MyNodeController).onRemove();
          }
        }
      }, () => {
        this.scaleValue = initScale;
        this.translateX = initTranslateX;
        this.translateY = initTranslateY;
        this.radius = 0;
        this.clipWidth = initClipWidth;
        this.clipHeight = initClipHeight;
        this.showDetailContent = false;
      })

      this.uiContext?.animateTo({
        duration: 200,
        delay: 150,
        curve: Curve.Friction,
      }, () => {
        this.navDestinationBgColor = Color.Transparent;
      })
    }
  }
}

// PageOne.ets
import { CustomTransition } from '../CustomTransition/CustomNavigationUtils';
import { MyNodeController, createMyNode, getMyNode } from '../NodeContainer/CustomComponent';
import { ComponentAttrUtils, RectInfoInPx } from '../utils/ComponentAttrUtils';
import { WindowUtils } from '../utils/WindowUtils';

@Builder
export function PageOneBuilder() {
  PageOne();
}

@Component
export struct PageOne {
  private pageInfos: NavPathStack = new NavPathStack();
  private pageId: number = -1;
  @State myNodeController: MyNodeController | undefined = new MyNodeController(false);

  aboutToAppear(): void {
    let node = getMyNode();
    if (node == undefined) {
      // 新建自定義節點
      createMyNode(this.getUIContext());
    }
    this.myNodeController = getMyNode();
  }

  private doFinishTransition(): void {
    // PageTwo結束轉場時將節點從PageTwo遷移回PageOne
    this.myNodeController = getMyNode();
  }

  private registerCustomTransition(): void {
    // 註冊自定義動畫協議
    CustomTransition.getInstance().registerNavParam(this.pageId,
      (isPush: boolean, isExit: boolean, transitionProxy: NavigationTransitionProxy) => {}, 500);
  }

  private onCardClicked(): void {
    let cardItemInfo: RectInfoInPx =
      ComponentAttrUtils.getRectInfoById(WindowUtils.window.getUIContext(), 'card');
    let param: Record<string, Object> = {};
    param['cardItemInfo'] = cardItemInfo;
    param['doDefaultTransition'] = (myController: MyNodeController) => {
      this.doFinishTransition()
    };
    this.pageInfos.pushPath({ name: 'PageTwo', param: param });
    // 自定義節點從PageOne下樹
    if (this.myNodeController != undefined) {
      (this.myNodeController as MyNodeController).onRemove();
    }
  }

  build() {
    NavDestination() {
      Stack() {
        Column({ space: 20 }) {
          Row({ space: 10 }) {
            // 圖片使用Resource資源，需用户自定義
            Image($r("app.media.avatar"))
              .size({ width: 50, height: 50 })
              .borderRadius(25)
              .clip(true)

            Text('Alice')
          }
          .justifyContent(FlexAlign.Start)

          Text('你好世界')

          NodeContainer(this.myNodeController)
            .size({ width: 320, height: 250 })
            .onClick(() => {
              this.onCardClicked()
            })
        }
        .alignItems(HorizontalAlign.Start)
        .margin(30)
      }
    }
    .onReady((context: NavDestinationContext) => {
      this.pageInfos = context.pathStack;
      this.pageId = this.pageInfos.getAllPathName().length - 1;
      this.registerCustomTransition();
    })
    .onDisAppear(() => {
      CustomTransition.getInstance().unRegisterNavParam(this.pageId);
      // 自定義節點從PageOne下樹
      if (this.myNodeController != undefined) {
        (this.myNodeController as MyNodeController).onRemove();
      }
    })
  }
}

// PageTwo.ets
import { CustomTransition } from '../CustomTransition/CustomNavigationUtils';
import { AnimationProperties } from '../CustomTransition/AnimationProperties';
import { RectInfoInPx } from '../utils/ComponentAttrUtils';
import { getMyNode, MyNodeController } from '../NodeContainer/CustomComponent';

@Builder
export function PageTwoBuilder() {
  PageTwo();
}

@Component
export struct PageTwo {
  @State pageInfos: NavPathStack = new NavPathStack();
  @State animationProperties: AnimationProperties = new AnimationProperties(this.getUIContext());
  @State myNodeController: MyNodeController | undefined = new MyNodeController(false);

  private pageId: number = -1;

  private shouldDoDefaultTransition: boolean = false;
  private prePageDoFinishTransition: () => void = () => {};
  private cardItemInfo: RectInfoInPx = new RectInfoInPx();

  @StorageProp('windowSizeChanged') @Watch('unRegisterNavParam') windowSizeChangedTime: number = 0;
  @StorageProp('onConfigurationUpdate') @Watch('unRegisterNavParam') onConfigurationUpdateTime: number = 0;

  aboutToAppear(): void {
    // 遷移自定義節點至當前頁面
    this.myNodeController = getMyNode();
  }

  private unRegisterNavParam(): void {
    this.shouldDoDefaultTransition = true;
  }

  private onBackPressed(): boolean {
    if (this.shouldDoDefaultTransition) {
      CustomTransition.getInstance().unRegisterNavParam(this.pageId);
      this.pageInfos.pop();
      this.prePageDoFinishTransition();
      this.shouldDoDefaultTransition = false;
      return true;
    }
    this.pageInfos.pop();
    return true;
  }

  build() {
    NavDestination() {
      // Stack需要設置alignContent為TopStart，否則在高度變化過程中，截圖和內容都會隨高度重新佈局位置
      Stack({ alignContent: Alignment.TopStart }) {
        Stack({ alignContent: Alignment.TopStart }) {
          Column({space: 20}) {
            NodeContainer(this.myNodeController)
            if (this.animationProperties.showDetailContent)
              Text('展開態內容')
                .fontSize(20)
                .transition(TransitionEffect.OPACITY)
                .margin(30)
          }
          .alignItems(HorizontalAlign.Start)
        }
        .position({ y: this.animationProperties.positionValue })
      }
      .scale({ x: this.animationProperties.scaleValue, y: this.animationProperties.scaleValue })
      .translate({ x: this.animationProperties.translateX, y: this.animationProperties.translateY })
      .width(this.animationProperties.clipWidth)
      .height(this.animationProperties.clipHeight)
      .borderRadius(this.animationProperties.radius)
      // expandSafeArea使得Stack做沉浸式效果，向上擴到狀態欄，向下擴到導航條
      .expandSafeArea([SafeAreaType.SYSTEM])
      // 對高度進行裁切
      .clip(true)
    }
    .backgroundColor(this.animationProperties.navDestinationBgColor)
    .hideTitleBar(true)
    .onReady((context: NavDestinationContext) => {
      this.pageInfos = context.pathStack;
      this.pageId = this.pageInfos.getAllPathName().length - 1;
      let param = context.pathInfo?.param as Record<string, Object>;
      this.prePageDoFinishTransition = param['doDefaultTransition'] as () => void;
      this.cardItemInfo = param['cardItemInfo'] as RectInfoInPx;
      CustomTransition.getInstance().registerNavParam(this.pageId,
        (isPush: boolean, isExit: boolean, transitionProxy: NavigationTransitionProxy) => {
          this.animationProperties.doAnimation(
            this.cardItemInfo, isPush, isExit, transitionProxy, 0,
            this.prePageDoFinishTransition, this.myNodeController);
        }, 500);
    })
    .onBackPressed(() => {
      return this.onBackPressed();
    })
    .onDisAppear(() => {
      CustomTransition.getInstance().unRegisterNavParam(this.pageId);
    })
  }
}

// 工程配置文件module.json5中配置 {"routerMap": "$profile:route_map"}
// route_map.json
{
  "routerMap": [
    {
      "name": "PageOne",
      "pageSourceFile": "src/main/ets/pages/PageOne.ets",
      "buildFunction": "PageOneBuilder"
    },
    {
      "name": "PageTwo",
      "pageSourceFile": "src/main/ets/pages/PageTwo.ets",
      "buildFunction": "PageTwoBuilder"
    }
  ]
}

// EntryAbility.ets
// 程序入口處的onWindowStageCreate增加對窗口寬高等的抓取

import { AbilityConstant, UIAbility, Want } from '@kit.AbilityKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { display, window } from '@kit.ArkUI';
import { WindowUtils } from '../utils/WindowUtils';

const TAG: string = 'EntryAbility';

export default class EntryAbility extends UIAbility {
  private currentBreakPoint: string = '';

  onCreate(want: Want, launchParam: AbilityConstant.LaunchParam): void {
    hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onCreate');
  }

  onDestroy(): void {
    hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onDestroy');
  }

  onWindowStageCreate(windowStage: window.WindowStage): void {
    // Main window is created, set main page for this ability
    hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onWindowStageCreate');

    // 獲取窗口寬高
    WindowUtils.window = windowStage.getMainWindowSync();
    WindowUtils.windowWidth_px = WindowUtils.window.getWindowProperties().windowRect.width;
    WindowUtils.windowHeight_px = WindowUtils.window.getWindowProperties().windowRect.height;

    this.updateBreakpoint(WindowUtils.windowWidth_px);

    // 獲取上方避讓區(狀態欄等)高度
    let avoidArea = WindowUtils.window.getWindowAvoidArea(window.AvoidAreaType.TYPE_SYSTEM);
    WindowUtils.topAvoidAreaHeight_px = avoidArea.topRect.height;

    // 獲取導航條高度
    let navigationArea = WindowUtils.window.getWindowAvoidArea(window.AvoidAreaType.TYPE_NAVIGATION_INDICATOR);
    WindowUtils.navigationIndicatorHeight_px = navigationArea.bottomRect.height;

    hilog.info(0x0000, TAG, 'the width is ' + WindowUtils.windowWidth_px + '  ' + WindowUtils.windowHeight_px + '  ' +
    WindowUtils.topAvoidAreaHeight_px + '  ' + WindowUtils.navigationIndicatorHeight_px);

    // 監聽窗口尺寸、狀態欄高度及導航條高度的變化並更新
    try {
      WindowUtils.window.on('windowSizeChange', (data) => {
        hilog.info(0x0000, TAG, 'on windowSizeChange, the width is ' + data.width + ', the height is ' + data.height);
        WindowUtils.windowWidth_px = data.width;
        WindowUtils.windowHeight_px = data.height;
        this.updateBreakpoint(data.width);
        AppStorage.setOrCreate('windowSizeChanged', Date.now())
      })

      WindowUtils.window.on('avoidAreaChange', (data) => {
        if (data.type == window.AvoidAreaType.TYPE_SYSTEM) {
          let topRectHeight = data.area.topRect.height;
          hilog.info(0x0000, TAG, 'on avoidAreaChange, the top avoid area height is ' + topRectHeight);
          WindowUtils.topAvoidAreaHeight_px = topRectHeight;
        } else if (data.type == window.AvoidAreaType.TYPE_NAVIGATION_INDICATOR) {
          let bottomRectHeight = data.area.bottomRect.height;
          hilog.info(0x0000, TAG, 'on avoidAreaChange, the navigation indicator height is ' + bottomRectHeight);
          WindowUtils.navigationIndicatorHeight_px = bottomRectHeight;
        }
      })
    } catch (exception) {
      hilog.error(0x0000, TAG, `register failed. code: ${exception.code}, message: ${exception.message}`);
    }

    windowStage.loadContent('pages/Index', (err) => {
      if (err.code) {
        hilog.error(0x0000, 'testTag', 'Failed to load the content. Cause: %{public}s', JSON.stringify(err) ?? '');
        return;
      }
      hilog.info(0x0000, 'testTag', 'Succeeded in loading the content.');
    });
  }

  updateBreakpoint(width: number) {
    let windowWidthVp = width / (display.getDefaultDisplaySync().densityDPI / 160);
    let newBreakPoint: string = '';
    if (windowWidthVp < 400) {
      newBreakPoint = 'xs';
    } else if (windowWidthVp < 600) {
      newBreakPoint = 'sm';
    } else if (windowWidthVp < 800) {
      newBreakPoint = 'md';
    } else {
      newBreakPoint = 'lg';
    }
    if (this.currentBreakPoint !== newBreakPoint) {
      this.currentBreakPoint = newBreakPoint;
      // 使用狀態變量記錄當前斷點值
      AppStorage.setOrCreate('currentBreakpoint', this.currentBreakPoint);
    }
  }

  onWindowStageDestroy(): void {
    // Main window is destroyed, release UI related resources
    hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onWindowStageDestroy');
  }

  onForeground(): void {
    // Ability has brought to foreground
    hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onForeground');
  }

  onBackground(): void {
    // Ability has back to background
    hilog.info(0x0000, 'testTag', '%{public}s', 'Ability onBackground');
  }
}

// Index.ets
import { AnimateCallback, CustomTransition } from '../CustomTransition/CustomNavigationUtils';

const TAG: string = 'Index';

@Entry
@Component
struct Index {
  private pageInfos: NavPathStack = new NavPathStack();
  // 允許進行自定義轉場的頁面名稱
  private allowedCustomTransitionFromPageName: string[] = ['PageOne'];
  private allowedCustomTransitionToPageName: string[] = ['PageTwo'];

  aboutToAppear(): void {
    this.pageInfos.pushPath({ name: 'PageOne' });
  }

  private isCustomTransitionEnabled(fromName: string, toName: string): boolean {
    // 點擊和返回均需要進行自定義轉場，因此需要分別判斷
    if ((this.allowedCustomTransitionFromPageName.includes(fromName)
      && this.allowedCustomTransitionToPageName.includes(toName))
      || (this.allowedCustomTransitionFromPageName.includes(toName)
        && this.allowedCustomTransitionToPageName.includes(fromName))) {
      return true;
    }
    return false;
  }

  build() {
    Navigation(this.pageInfos)
      .hideNavBar(true)
      .customNavContentTransition((from: NavContentInfo, to: NavContentInfo, operation: NavigationOperation) => {
        if ((!from || !to) || (!from.name || !to.name)) {
          return undefined;
        }

        // 通過from和to的name對自定義轉場路由進行管控
        if (!this.isCustomTransitionEnabled(from.name, to.name)) {
          return undefined;
        }

        // 需要對轉場頁面是否註冊了animation進行判斷，來決定是否進行自定義轉場
        let fromParam: AnimateCallback = CustomTransition.getInstance().getAnimateParam(from.index);
        let toParam: AnimateCallback = CustomTransition.getInstance().getAnimateParam(to.index);
        if (!fromParam.animation || !toParam.animation) {
          return undefined;
        }

        // 一切判斷完成後，構造customAnimation給系統側調用，執行自定義轉場動畫
        let customAnimation: NavigationAnimatedTransition = {
          onTransitionEnd: (isSuccess: boolean) => {
            console.info(TAG, `current transition result is ${isSuccess}`);
          },
          timeout: 2000,
          transition: (transitionProxy: NavigationTransitionProxy) => {
            console.info(TAG, 'trigger transition callback');
            if (fromParam.animation) {
              fromParam.animation(operation == NavigationOperation.PUSH, true, transitionProxy);
            }
            if (toParam.animation) {
              toParam.animation(operation == NavigationOperation.PUSH, false, transitionProxy);
            }
          }
        };
        return customAnimation;
      })
  }
}

├──entry/src/main/ets                 // 代碼區
│  ├──entryability
│  │  └──EntryAbility.ets             // 程序入口類
│  ├──NodeContainer
│  │  └──CustomComponent.ets          // 自定義佔位節點
│  ├──pages
│  │  └──Index.ets                    // 進行共享元素轉場的主頁面
│  └──utils
│     ├──ComponentAttrUtils.ets       // 組件位置獲取
│     └──WindowUtils.ets              // 窗口信息
└──entry/src/main/resources           // 資源文件

// CustomComponent.ets
// 自定義佔位節點，跨容器遷移能力
import { BuilderNode, FrameNode, NodeController } from '@kit.ArkUI';

@Builder
function CardBuilder() {
  // 圖片使用Resource資源，需用户自定義
  Image($r("app.media.flower"))
    // 避免第一次加載圖片時圖片閃爍
    .syncLoad(true)
}

export class MyNodeController extends NodeController {
  private CardNode: BuilderNode<[]> | null = null;
  private wrapBuilder: WrappedBuilder<[]> = wrapBuilder(CardBuilder);
  private needCreate: boolean = false;
  private isRemove: boolean = false;

  constructor(create: boolean) {
    super();
    this.needCreate = create;
  }

  makeNode(uiContext: UIContext): FrameNode | null {
    if(this.isRemove == true){
      return null;
    }
    if (this.needCreate && this.CardNode == null) {
      this.CardNode = new BuilderNode(uiContext);
      this.CardNode.build(this.wrapBuilder)
    }
    if (this.CardNode == null) {
      return null;
    }
    return this.CardNode!.getFrameNode()!;
  }

  getNode(): BuilderNode<[]> | null {
    return this.CardNode;
  }

  setNode(node: BuilderNode<[]> | null) {
    this.CardNode = node;
    this.rebuild();
  }

  onRemove() {
    this.isRemove = true;
    this.rebuild();
    this.isRemove = false;
  }

  init(uiContext: UIContext) {
    this.CardNode = new BuilderNode(uiContext);
    this.CardNode.build(this.wrapBuilder)
  }
}

let myNode: MyNodeController | undefined;

export const createMyNode =
  (uiContext: UIContext) => {
    myNode = new MyNodeController(false);
    myNode.init(uiContext);
  }

export const getMyNode = (): MyNodeController | undefined => {
  return myNode;
}

// ComponentAttrUtils.ets
// 獲取組件相對窗口的位置
import { componentUtils, UIContext } from '@kit.ArkUI';
import { JSON } from '@kit.ArkTS';

export class ComponentAttrUtils {
  // 根據組件的id獲取組件的位置信息
  public static getRectInfoById(context: UIContext, id: string): RectInfoInPx {
    if (!context || !id) {
      throw Error('object is empty');
    }
    let componentInfo: componentUtils.ComponentInfo = context.getComponentUtils().getRectangleById(id);

    if (!componentInfo) {
      throw Error('object is empty');
    }

    let rstRect: RectInfoInPx = new RectInfoInPx();
    const widthScaleGap = componentInfo.size.width * (1 - componentInfo.scale.x) / 2;
    const heightScaleGap = componentInfo.size.height * (1 - componentInfo.scale.y) / 2;
    rstRect.left = componentInfo.translate.x + componentInfo.windowOffset.x + widthScaleGap;
    rstRect.top = componentInfo.translate.y + componentInfo.windowOffset.y + heightScaleGap;
    rstRect.right =
      componentInfo.translate.x + componentInfo.windowOffset.x + componentInfo.size.width - widthScaleGap;
    rstRect.bottom =
      componentInfo.translate.y + componentInfo.windowOffset.y + componentInfo.size.height - heightScaleGap;
    rstRect.width = rstRect.right - rstRect.left;
    rstRect.height = rstRect.bottom - rstRect.top;
    return {
      left: rstRect.left,
      right: rstRect.right,
      top: rstRect.top,
      bottom: rstRect.bottom,
      width: rstRect.width,
      height: rstRect.height
    }
  }
}

export class RectInfoInPx {
  left: number = 0;
  top: number = 0;
  right: number = 0;
  bottom: number = 0;
  width: number = 0;
  height: number = 0;
}

export class RectJson {
  $rect: Array<number> = [];
}

// index.ets
import { MyNodeController, createMyNode, getMyNode } from '../NodeContainer/CustomComponent';
import { ComponentAttrUtils, RectInfoInPx } from '../utils/ComponentAttrUtils';
import { WindowUtils } from '../utils/WindowUtils';
import { inspector } from '@kit.ArkUI'

class AnimationInfo {
  scale: number = 0;
  translateX: number = 0;
  translateY: number = 0;
  clipWidth: Dimension = 0;
  clipHeight: Dimension = 0;
}

@Entry
@Component
struct Index {
  @State isShowSheet: boolean = false;
  @State isShowImage: boolean = false;
  @State isShowOverlay: boolean = false;
  @State isAnimating: boolean = false;
  @State isEnabled: boolean = true;

  @State scaleValue: number = 0;
  @State translateX: number = 0;
  @State translateY: number = 0;
  @State clipWidth: Dimension = 0;
  @State clipHeight: Dimension = 0;
  @State radius: number = 0;
  // 原圖的透明度
  @State opacityDegree: number = 1;

  // 抓取照片原位置信息
  private originInfo: AnimationInfo = new AnimationInfo;
  // 抓取照片在半模態頁上位置信息
  private targetInfo: AnimationInfo = new AnimationInfo;
  // 半模態高度
  private bindSheetHeight: number = 450;
  // 半模態上圖片圓角
  private sheetRadius: number = 20;

  // 設置半模態上圖片的佈局監聽
  listener:inspector.ComponentObserver = this.getUIContext().getUIInspector().createComponentObserver('target');
  aboutToAppear(): void {
    // 設置半模態上圖片的佈局完成回調
    let onLayoutComplete:()=>void=():void=>{
      // 目標圖片佈局完成時抓取佈局信息
      this.targetInfo = this.calculateData('target');
      // 僅半模態正確佈局且此時無動畫時觸發一鏡到底動畫
      if (this.targetInfo.scale != 0 && this.targetInfo.clipWidth != 0 && this.targetInfo.clipHeight != 0 && !this.isAnimating) {
        this.isAnimating = true;
        // 用於一鏡到底的模態頁的屬性動畫
        this.getUIContext()?.animateTo({
          duration: 1000,
          curve: Curve.Friction,
          onFinish: () => {
            // 模態轉場頁（overlay）上的自定義節點下樹
            this.isShowOverlay = false;
            // 半模態上的自定義節點上樹，由此完成節點遷移
            this.isShowImage = true;
          }
        }, () => {
          this.scaleValue = this.targetInfo.scale;
          this.translateX = this.targetInfo.translateX;
          this.clipWidth = this.targetInfo.clipWidth;
          this.clipHeight = this.targetInfo.clipHeight;
          // 修正因半模態高度和縮放導致的高度差
          this.translateY = this.targetInfo.translateY +
            (this.getUIContext().px2vp(WindowUtils.windowHeight_px) - this.bindSheetHeight
              - this.getUIContext().px2vp(WindowUtils.navigationIndicatorHeight_px) - this.getUIContext().px2vp(WindowUtils.topAvoidAreaHeight_px));
          // 修正因縮放導致的圓角差異
          this.radius = this.sheetRadius / this.scaleValue
        })
        // 原圖從透明到出現的動畫
        this.getUIContext()?.animateTo({
          duration: 2000,
          curve: Curve.Friction,
        }, () => {
          this.opacityDegree = 1;
        })
      }
    }
    // 打開佈局監聽
    this.listener.on('layout', onLayoutComplete)
  }

  // 獲取對應id的組件相對窗口左上角的屬性
  calculateData(id: string): AnimationInfo {
    let itemInfo: RectInfoInPx =
      ComponentAttrUtils.getRectInfoById(WindowUtils.window.getUIContext(), id);
    // 首先計算圖片的寬高與窗口寬高的比例
    let widthScaleRatio = itemInfo.width / WindowUtils.windowWidth_px;
    let heightScaleRatio = itemInfo.height / WindowUtils.windowHeight_px;
    let isUseWidthScale = widthScaleRatio > heightScaleRatio;
    let itemScale: number = isUseWidthScale ? widthScaleRatio : heightScaleRatio;
    let itemTranslateX: number = 0;
    let itemClipWidth: Dimension = 0;
    let itemClipHeight: Dimension = 0;
    let itemTranslateY: number = 0;

    if (isUseWidthScale) {
      itemTranslateX = this.getUIContext().px2vp(itemInfo.left - (WindowUtils.windowWidth_px - itemInfo.width) / 2);
      itemClipWidth = '100%';
      itemClipHeight = this.getUIContext().px2vp((itemInfo.height) / itemScale);
      itemTranslateY = this.getUIContext().px2vp(itemInfo.top - ((this.getUIContext().vp2px(itemClipHeight) - this.getUIContext().vp2px(itemClipHeight) * itemScale) / 2));
    } else {
      itemTranslateY = this.getUIContext().px2vp(itemInfo.top - (WindowUtils.windowHeight_px - itemInfo.height) / 2);
      itemClipHeight = '100%';
      itemClipWidth = this.getUIContext().px2vp((itemInfo.width) / itemScale);
      itemTranslateX = this.getUIContext().px2vp(itemInfo.left - (WindowUtils.windowWidth_px / 2 - itemInfo.width / 2));
    }

    return {
      scale: itemScale,
      translateX: itemTranslateX ,
      translateY: itemTranslateY,
      clipWidth: itemClipWidth,
      clipHeight: itemClipHeight,
    }
  }

  // 照片頁
  build() {
    Column() {
      Text('照片')
        .textAlign(TextAlign.Start)
        .width('100%')
        .fontSize(30)
        .padding(20)
      // 圖片使用Resource資源，需用户自定義
      Image($r("app.media.flower"))
        .opacity(this.opacityDegree)
        .width('90%')
        .id('origin')// 掛載半模態頁
        .enabled(this.isEnabled)
        .onClick(() => {
          // 獲取原始圖像的位置信息，將模態頁上圖片移動縮放至該位置
          this.originInfo = this.calculateData('origin');
          this.scaleValue = this.originInfo.scale;
          this.translateX = this.originInfo.translateX;
          this.translateY = this.originInfo.translateY;
          this.clipWidth = this.originInfo.clipWidth;
          this.clipHeight = this.originInfo.clipHeight;
          this.radius = 0;
          this.opacityDegree = 0;
          // 啓動半模態頁和模態頁
          this.isShowSheet = true;
          this.isShowOverlay = true;
          // 設置原圖為不可交互抗打斷
          this.isEnabled = false;
        })
    }
    .width('100%')
    .height('100%')
    .padding({ top: 20 })
    .alignItems(HorizontalAlign.Center)

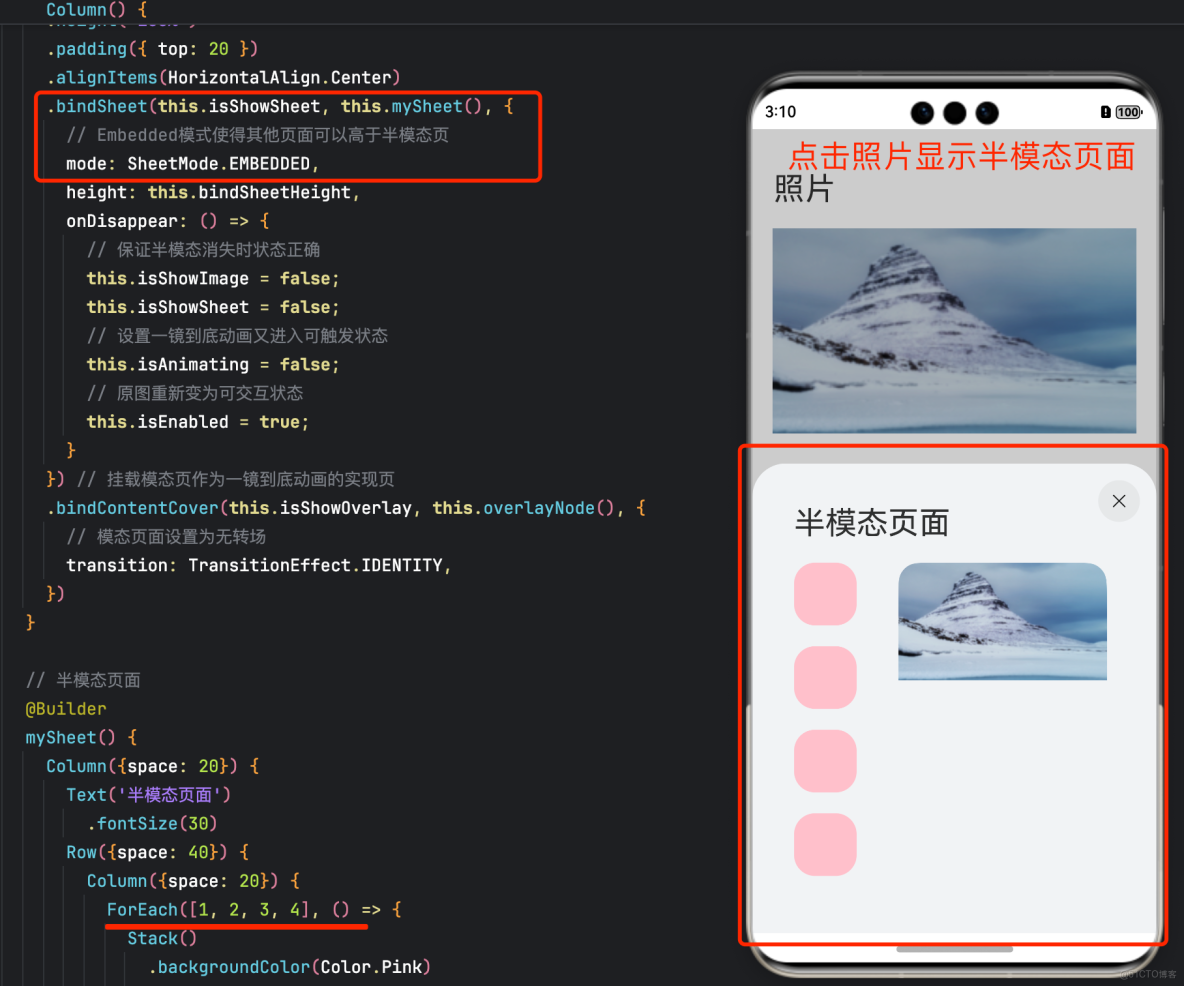

    .bindSheet(this.isShowSheet, this.mySheet(), {
      // Embedded模式使得其他頁面可以高於半模態頁
      mode: SheetMode.EMBEDDED,
      height: this.bindSheetHeight,
      onDisappear: () => {
        // 保證半模態消失時狀態正確
        this.isShowImage = false;
        this.isShowSheet = false;
        // 設置一鏡到底動畫又進入可觸發狀態
        this.isAnimating = false;
        // 原圖重新變為可交互狀態
        this.isEnabled = true;
      }
    }) // 掛載模態頁作為一鏡到底動畫的實現頁
    .bindContentCover(this.isShowOverlay, this.overlayNode(), {
      // 模態頁面設置為無轉場
      transition: TransitionEffect.IDENTITY,
    })
  }

  // 半模態頁面
  @Builder
  mySheet() {
    Column({space: 20}) {
      Text('半模態頁面')
        .fontSize(30)
      Row({space: 40}) {
        Column({space: 20}) {
          ForEach([1, 2, 3, 4], () => {
            Stack()
              .backgroundColor(Color.Pink)
              .borderRadius(20)
              .width(60)
              .height(60)
          })
        }
        Column() {
          if (this.isShowImage) {
            // 半模態頁面的自定義圖片節點
            ImageNode()
          }
          else {
            // 抓取佈局和佔位用，實際不顯示
            // 圖片使用Resource資源，需用户自定義
            Image($r("app.media.flower"))
              .visibility(Visibility.Hidden)
          }
        }
        .height(300)
        .width(200)
        .borderRadius(20)
        .clip(true)
        .id('target')
      }
      .alignItems(VerticalAlign.Top)
    }
    .alignItems(HorizontalAlign.Start)
    .height('100%')
    .width('100%')
    .margin(40)
  }

  @Builder
  overlayNode() {
    // Stack需要設置alignContent為TopStart，否則在高度變化過程中，截圖和內容都會隨高度重新佈局位置
    Stack({ alignContent: Alignment.TopStart }) {
      ImageNode()
    }
    .scale({ x: this.scaleValue, y: this.scaleValue, centerX: undefined, centerY: undefined})
    .translate({ x: this.translateX, y: this.translateY })
    .width(this.clipWidth)
    .height(this.clipHeight)
    .borderRadius(this.radius)
    .clip(true)
  }
}

@Component
struct ImageNode {
  @State myNodeController: MyNodeController | undefined = new MyNodeController(false);

  aboutToAppear(): void {
    // 獲取自定義節點
    let node = getMyNode();
    if (node == undefined) {
      // 新建自定義節點
      createMyNode(this.getUIContext());
    }
    this.myNodeController = getMyNode();
  }

  aboutToDisappear(): void {
    if (this.myNodeController != undefined) {
      // 節點下樹
      this.myNodeController.onRemove();
    }
  }
  build() {
    NodeContainer(this.myNodeController)
  }
}

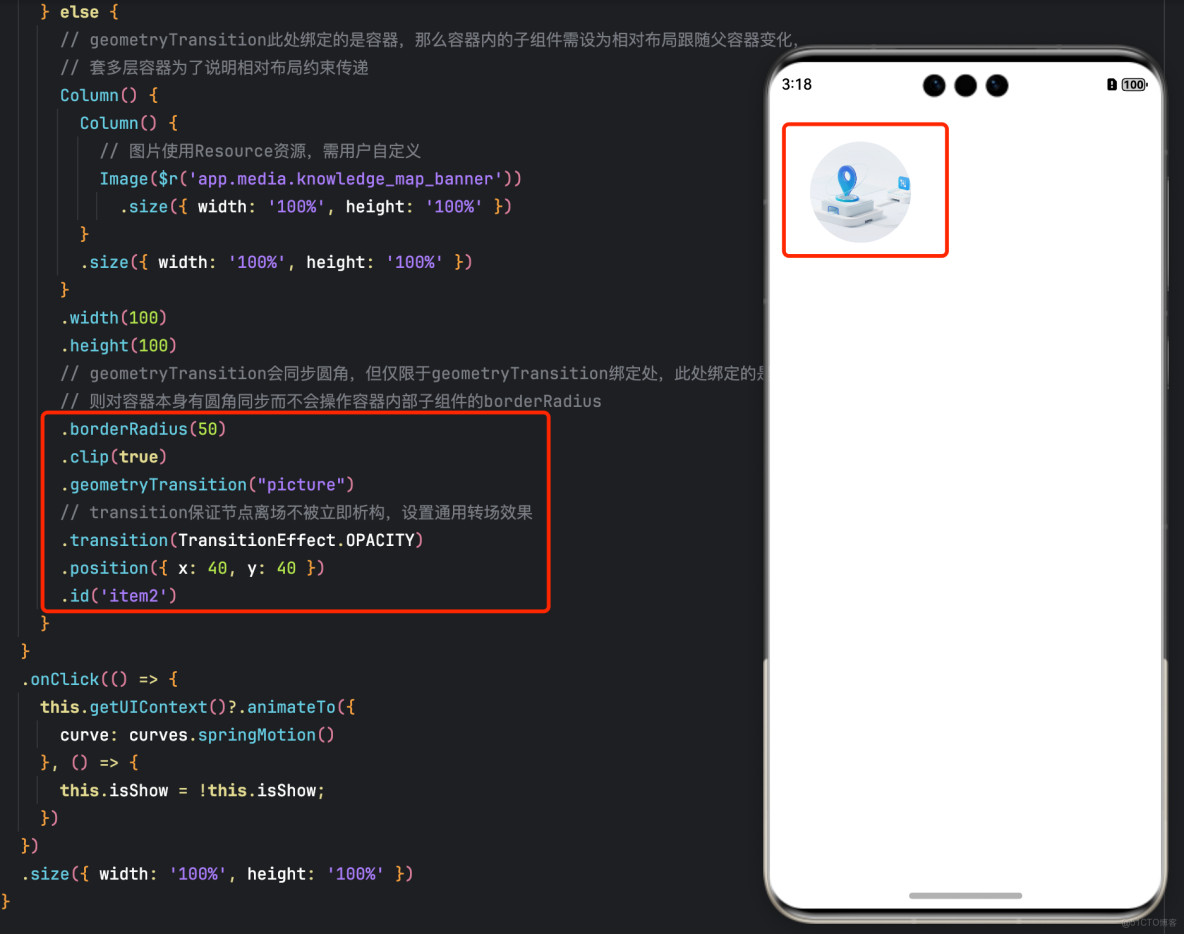

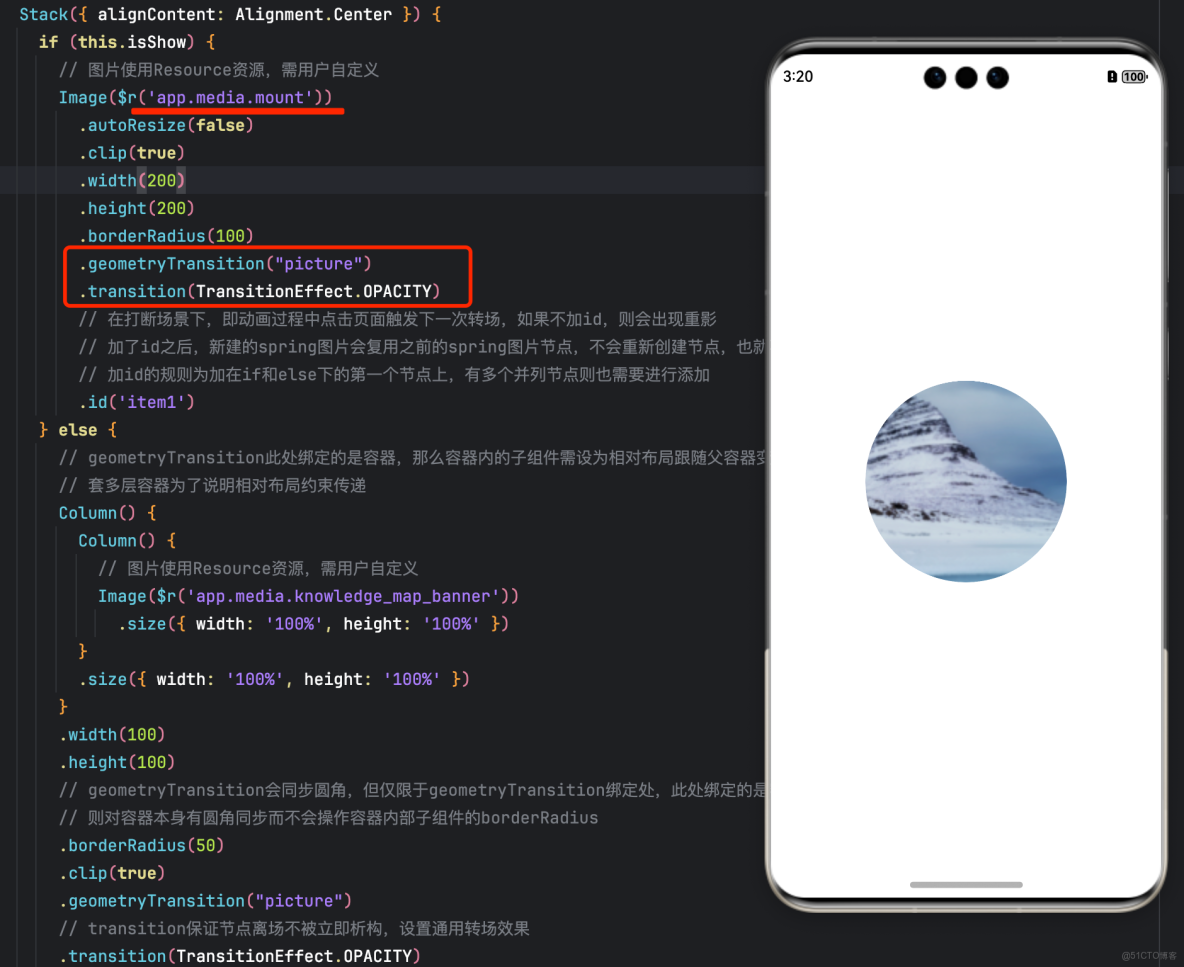

import { curves } from '@kit.ArkUI';

@Entry
@Component
struct IfElseGeometryTransition {
  @State isShow: boolean = false;

  build() {
    Stack({ alignContent: Alignment.Center }) {
      if (this.isShow) {
        // 圖片使用Resource資源，需用户自定義
        Image($r('app.media.spring'))
          .autoResize(false)
          .clip(true)
          .width(200)
          .height(200)
          .borderRadius(100)
          .geometryTransition("picture")
          .transition(TransitionEffect.OPACITY)
          // 在打斷場景下，即動畫過程中點擊頁面觸發下一次轉場，如果不加id，則會出現重影
          // 加了id之後，新建的spring圖片會複用之前的spring圖片節點，不會重新創建節點，也就不會有重影問題
          // 加id的規則為加在if和else下的第一個節點上，有多個並列節點則也需要進行添加
          .id('item1')
      } else {
        // geometryTransition此處綁定的是容器，那麼容器內的子組件需設為相對佈局跟隨父容器變化，
        // 套多層容器為了説明相對佈局約束傳遞
        Column() {
          Column() {
            // 圖片使用Resource資源，需用户自定義
            Image($r('app.media.sky'))
              .size({ width: '100%', height: '100%' })
          }
          .size({ width: '100%', height: '100%' })
        }
        .width(100)
        .height(100)
        // geometryTransition會同步圓角，但僅限於geometryTransition綁定處，此處綁定的是容器
        // 則對容器本身有圓角同步而不會操作容器內部子組件的borderRadius
        .borderRadius(50)
        .clip(true)
        .geometryTransition("picture")
        // transition保證節點離場不被立即析構，設置通用轉場效果
        .transition(TransitionEffect.OPACITY)
        .position({ x: 40, y: 40 })
        .id('item2')
      }
    }
    .onClick(() => {
      this.getUIContext()?.animateTo({
        curve: curves.springMotion()
      }, () => {
        this.isShow = !this.isShow;
      })
    })
    .size({ width: '100%', height: '100%' })
  }
}

class PostData {
  // 圖片使用Resource資源，需用户自定義
  avatar: Resource = $r('app.media.mount');
  name: string = '';
  message: string = '';
  images: Resource[] = [];
}

@Entry
@Component
struct GeometryTransitionDemo2 {
  @State isPersonalPageShow: boolean = false;
  @State selectedIndex: number = 0;
  @State alphaValue: number = 1;

  // 數組中圖片均使用Resource資源，需用户自定義
  private allPostData: PostData[] = [
    { avatar: $r('app.media.background'), name: 'Alice', message: '天氣晴朗',
      images: [$r('app.media.banner_pic1'), $r('app.media.banner_pic2')] },
    { avatar: $r('app.media.tutorial_pic1'), name: 'Bob', message: '你好世界',
      images: [$r('app.media.banner_pic3')] },
    { avatar: $r('app.media.tutorial_pic2'), name: 'Carl', message: '萬物生長',
      images: [$r('app.media.banner_pic4'), $r('app.media.banner_pic5'), $r('app.media.banner_pic0')] }];


  private onAvatarClicked(index: number): void {
    this.selectedIndex = index;
    this.getUIContext()?.animateTo({
      duration: 350,
      curve: Curve.Friction
    }, () => {
      this.isPersonalPageShow = !this.isPersonalPageShow;
      this.alphaValue = 0;
    });
  }

  private onPersonalPageBack(index: number): void {
    this.getUIContext()?.animateTo({
      duration: 350,
      curve: Curve.Friction
    }, () => {
      this.isPersonalPageShow = !this.isPersonalPageShow;
      this.alphaValue = 1;
    });
  }

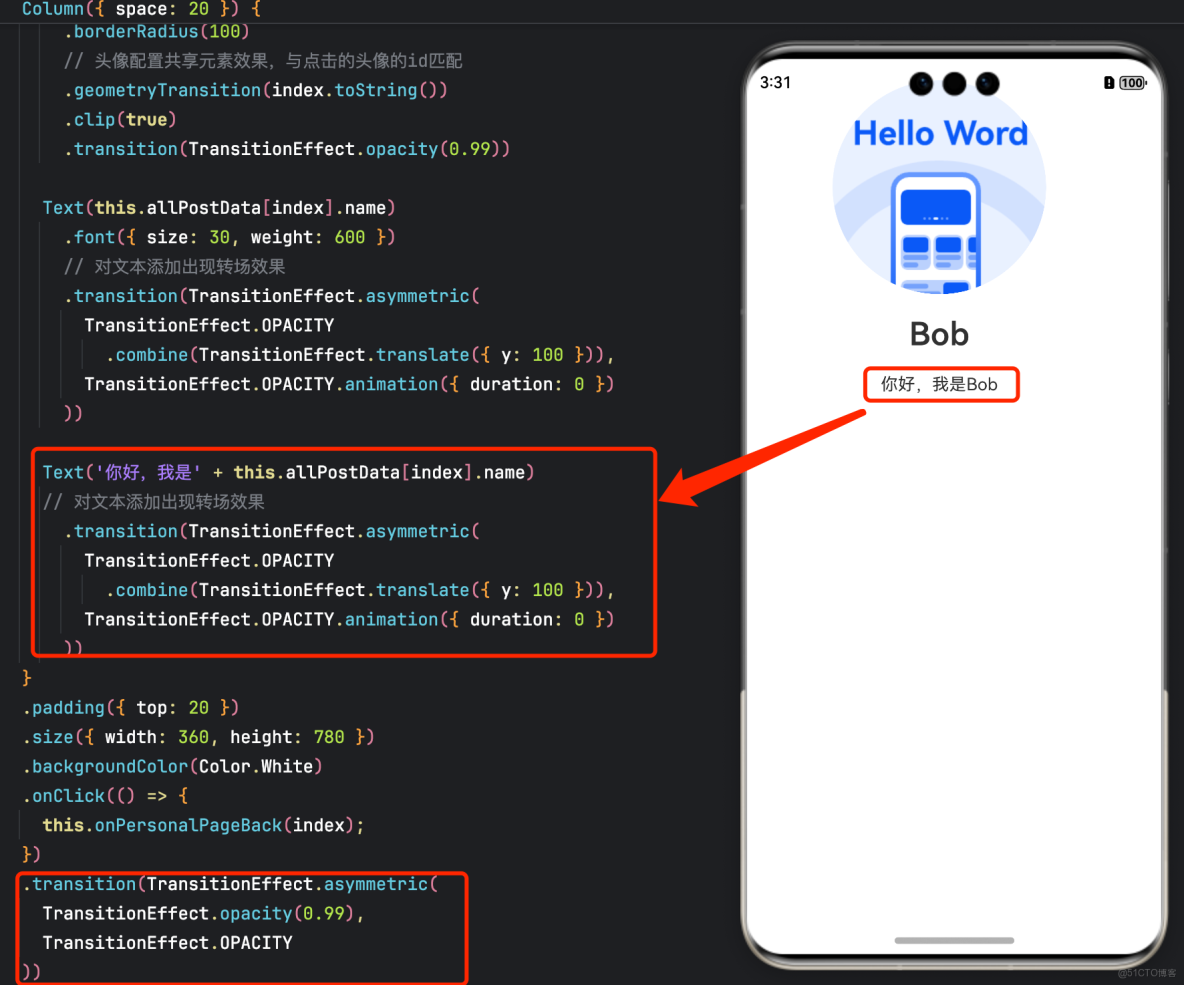

  @Builder
  PersonalPageBuilder(index: number) {
    Column({ space: 20 }) {
      Image(this.allPostData[index].avatar)
        .size({ width: 200, height: 200 })
        .borderRadius(100)
        // 頭像配置共享元素效果，與點擊的頭像的id匹配
        .geometryTransition(index.toString())
        .clip(true)
        .transition(TransitionEffect.opacity(0.99))

      Text(this.allPostData[index].name)
        .font({ size: 30, weight: 600 })
        // 對文本添加出現轉場效果
        .transition(TransitionEffect.asymmetric(
          TransitionEffect.OPACITY
            .combine(TransitionEffect.translate({ y: 100 })),
          TransitionEffect.OPACITY.animation({ duration: 0 })
        ))

      Text('你好，我是' + this.allPostData[index].name)
      // 對文本添加出現轉場效果
        .transition(TransitionEffect.asymmetric(
          TransitionEffect.OPACITY
            .combine(TransitionEffect.translate({ y: 100 })),
          TransitionEffect.OPACITY.animation({ duration: 0 })
        ))
    }
    .padding({ top: 20 })
    .size({ width: 360, height: 780 })
    .backgroundColor(Color.White)
    .onClick(() => {
      this.onPersonalPageBack(index);
    })
    .transition(TransitionEffect.asymmetric(
      TransitionEffect.opacity(0.99),
      TransitionEffect.OPACITY
    ))
  }

  build() {
    Column({ space: 20 }) {
      ForEach(this.allPostData, (postData: PostData, index: number) => {
        Column() {
          Post({ data: postData, index: index, onAvatarClicked: (index: number) => { this.onAvatarClicked(index) } })
        }
        .width('100%')
      }, (postData: PostData, index: number) => index.toString())
    }
    .size({ width: '100%', height: '100%' })
    .backgroundColor('#40808080')
    .bindContentCover(this.isPersonalPageShow,
      this.PersonalPageBuilder(this.selectedIndex), { modalTransition: ModalTransition.NONE })
    .opacity(this.alphaValue)
  }
}

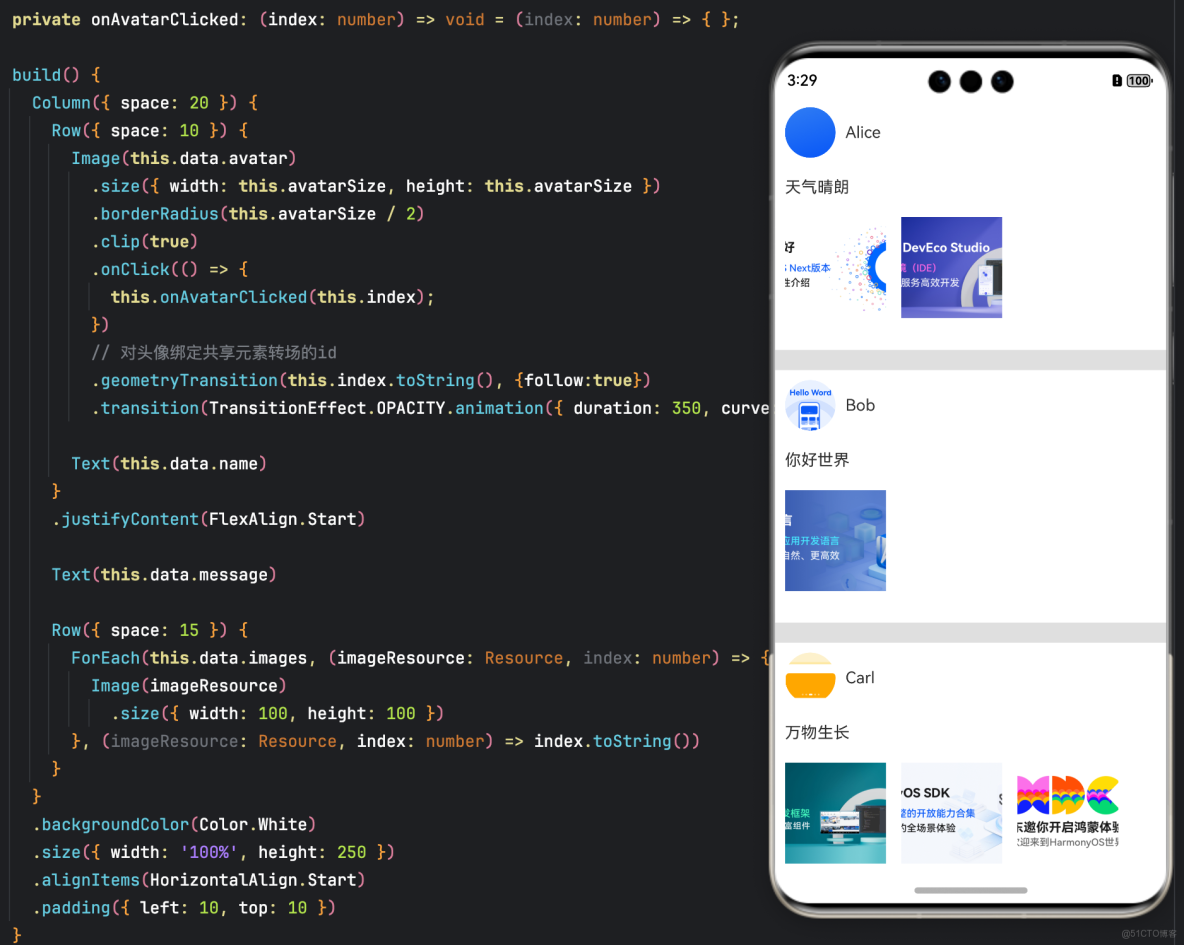

@Component
export default struct  Post {
  @Prop data: PostData;
  @Prop index: number;

  @State expandImageSize: number = 100;
  @State avatarSize: number = 50;

  private onAvatarClicked: (index: number) => void = (index: number) => { };

  build() {
    Column({ space: 20 }) {
      Row({ space: 10 }) {
        Image(this.data.avatar)
          .size({ width: this.avatarSize, height: this.avatarSize })
          .borderRadius(this.avatarSize / 2)
          .clip(true)
          .onClick(() => {
            this.onAvatarClicked(this.index);
          })
          // 對頭像綁定共享元素轉場的id
          .geometryTransition(this.index.toString(), {follow:true})
          .transition(TransitionEffect.OPACITY.animation({ duration: 350, curve: Curve.Friction }))

        Text(this.data.name)
      }
      .justifyContent(FlexAlign.Start)

      Text(this.data.message)

      Row({ space: 15 }) {
        ForEach(this.data.images, (imageResource: Resource, index: number) => {
          Image(imageResource)
            .size({ width: 100, height: 100 })
        }, (imageResource: Resource, index: number) => index.toString())
      }
    }
    .backgroundColor(Color.White)
    .size({ width: '100%', height: 250 })
    .alignItems(HorizontalAlign.Start)
    .padding({ left: 10, top: 10 })
  }
}
