温馨提示此內容版本在 ttr-2.2.1 已經修復,低於該版本需要手動處理。有任何問題可以聯繫作者，或者訪問 TTBigdata知識庫獲取其他技術支持。

一、問題背景

在編譯 Ambari Views 模塊時，常會遇到以下錯誤：

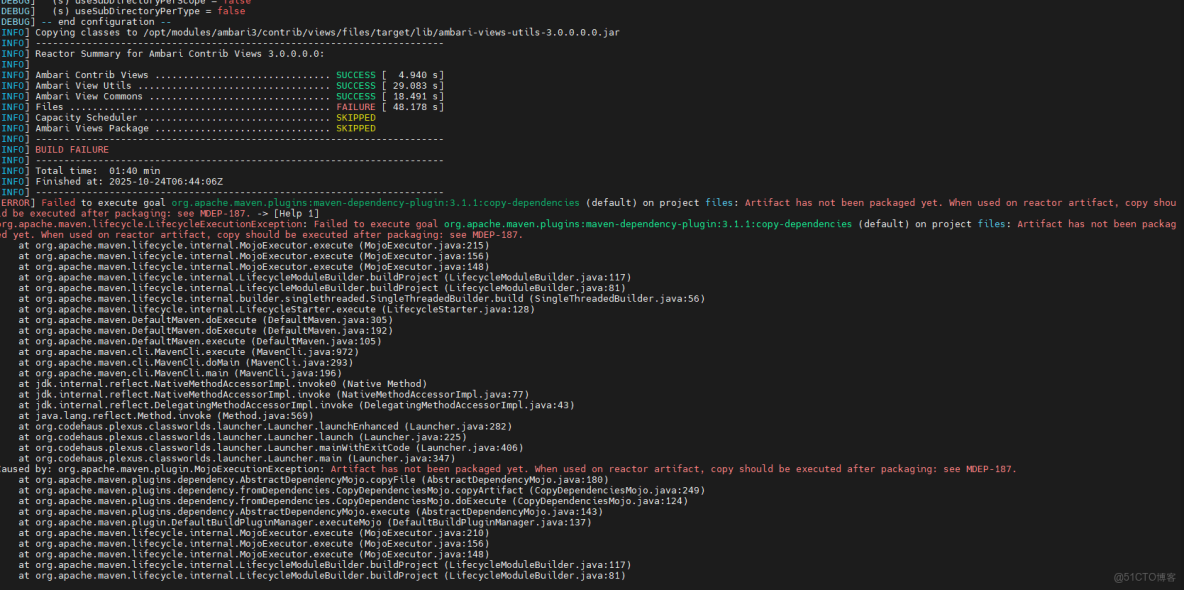

MDEP-187 從根因到修復_開源大數據

典型報錯信息如下：

[DEBUG]   (f) session = org.apache.maven.execution.MavenSession@518cf84a
[DEBUG]   (s) silent = false
[DEBUG]   (s) skip = false
[DEBUG]   (f) stripClassifier = false
[DEBUG]   (s) stripVersion = false
[DEBUG]   (f) useBaseVersion = true
[DEBUG]   (s) useRepositoryLayout = false
[DEBUG]   (s) useSubDirectoryPerArtifact = false
[DEBUG]   (s) useSubDirectoryPerScope = false
[DEBUG]   (s) useSubDirectoryPerType = false
[DEBUG] -- end configuration --
[INFO] Copying classes to /opt/modules/ambari3/contrib/views/files/target/lib/ambari-views-utils-3.0.0.0.0.jar
[INFO] ------------------------------------------------------------------------
[INFO] Reactor Summary for Ambari Contrib Views 3.0.0.0.0:
[INFO]
[INFO] Ambari Contrib Views ............................... SUCCESS [  4.940 s]
[INFO] Ambari View Utils .................................. SUCCESS [ 29.083 s]
[INFO] Ambari View Commons ................................ SUCCESS [ 18.491 s]
[INFO] Files .............................................. FAILURE [ 48.178 s]
[INFO] Capacity Scheduler ................................. SKIPPED
[INFO] Ambari Views Package ............................... SKIPPED
[INFO] ------------------------------------------------------------------------
[INFO] BUILD FAILURE
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  01:40 min
[INFO] Finished at: 2025-10-24T06:44:06Z
[INFO] ------------------------------------------------------------------------
[ERROR] Failed to execute goal org.apache.maven.plugins:maven-dependency-plugin:3.1.1:copy-dependencies (default) on project files: Artifact has not been packaged yet. When used on reactor artifact, copy shou
ld be executed after packaging: see MDEP-187. -> [Help 1]
org.apache.maven.lifecycle.LifecycleExecutionException: Failed to execute goal org.apache.maven.plugins:maven-dependency-plugin:3.1.1:copy-dependencies (default) on project files: Artifact has not been packag
ed yet. When used on reactor artifact, copy should be executed after packaging: see MDEP-187.
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:215)
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:156)
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:148)
    at org.apache.maven.lifecycle.internal.LifecycleModuleBuilder.buildProject (LifecycleModuleBuilder.java:117)
    at org.apache.maven.lifecycle.internal.LifecycleModuleBuilder.buildProject (LifecycleModuleBuilder.java:81)
    at org.apache.maven.lifecycle.internal.builder.singlethreaded.SingleThreadedBuilder.build (SingleThreadedBuilder.java:56)
    at org.apache.maven.lifecycle.internal.LifecycleStarter.execute (LifecycleStarter.java:128)
    at org.apache.maven.DefaultMaven.doExecute (DefaultMaven.java:305)
    at org.apache.maven.DefaultMaven.doExecute (DefaultMaven.java:192)
    at org.apache.maven.DefaultMaven.execute (DefaultMaven.java:105)
    at org.apache.maven.cli.MavenCli.execute (MavenCli.java:972)
    at org.apache.maven.cli.MavenCli.doMain (MavenCli.java:293)
    at org.apache.maven.cli.MavenCli.main (MavenCli.java:196)
    at jdk.internal.reflect.NativeMethodAccessorImpl.invoke0 (Native Method)
    at jdk.internal.reflect.NativeMethodAccessorImpl.invoke (NativeMethodAccessorImpl.java:77)
    at jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke (DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke (Method.java:569)
    at org.codehaus.plexus.classworlds.launcher.Launcher.launchEnhanced (Launcher.java:282)
    at org.codehaus.plexus.classworlds.launcher.Launcher.launch (Launcher.java:225)
    at org.codehaus.plexus.classworlds.launcher.Launcher.mainWithExitCode (Launcher.java:406)
    at org.codehaus.plexus.classworlds.launcher.Launcher.main (Launcher.java:347)
Caused by: org.apache.maven.plugin.MojoExecutionException: Artifact has not been packaged yet. When used on reactor artifact, copy should be executed after packaging: see MDEP-187.
    at org.apache.maven.plugins.dependency.AbstractDependencyMojo.copyFile (AbstractDependencyMojo.java:180)
    at org.apache.maven.plugins.dependency.fromDependencies.CopyDependenciesMojo.copyArtifact (CopyDependenciesMojo.java:249)
    at org.apache.maven.plugins.dependency.fromDependencies.CopyDependenciesMojo.doExecute (CopyDependenciesMojo.java:124)
    at org.apache.maven.plugins.dependency.AbstractDependencyMojo.execute (AbstractDependencyMojo.java:143)
    at org.apache.maven.plugin.DefaultBuildPluginManager.executeMojo (DefaultBuildPluginManager.java:137)
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:210)
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:156)
    at org.apache.maven.lifecycle.internal.MojoExecutor.execute (MojoExecutor.java:148)
    at org.apache.maven.lifecycle.internal.LifecycleModuleBuilder.buildProject (LifecycleModuleBuilder.java:117)
    at org.apache.maven.lifecycle.internal.LifecycleModuleBuilder.buildProject (LifecycleModuleBuilder.java:81)
    at org.apache.maven.lifecycle.internal.builder.singlethreaded.SingleThreadedBuilder.build (SingleThreadedBuilder.java:56)
    at org.apache.maven.lifecycle.internal.LifecycleStarter.execute (LifecycleStarter.java:128)
    at org.apache.maven.DefaultMaven.doExecute (DefaultMaven.java:305)
    at org.apache.maven.DefaultMaven.doExecute (DefaultMaven.java:192)
    at org.apache.maven.DefaultMaven.execute (DefaultMaven.java:105)
    at org.apache.maven.cli.MavenCli.execute (MavenCli.java:972)
    at org.apache.maven.cli.MavenCli.doMain (MavenCli.java:293)
    at org.apache.maven.cli.MavenCli.main (MavenCli.java:196)
    at jdk.internal.reflect.NativeMethodAccessorImpl.invoke0 (Native Method)
    at jdk.internal.reflect.NativeMethodAccessorImpl.invoke (NativeMethodAccessorImpl.java:77)
    at jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke (DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke (Method.java:569)
    at org.codehaus.plexus.classworlds.launcher.Launcher.launchEnhanced (Launcher.java:282)
    at org.codehaus.plexus.classworlds.launcher.Launcher.launch (Launcher.java:225)
    at org.codehaus.plexus.classworlds.launcher.Launcher.mainWithExitCode (Launcher.java:406)
    at org.codehaus.plexus.classworlds.launcher.Launcher.main (Launcher.java:347)
[ERROR]
[ERROR]
[ERROR] For more information about the errors and possible solutions, please read the following articles:
[ERROR] [Help 1] http://cwiki.apache.org/confluence/display/MAVEN/MojoExecutionException
[ERROR]
[ERROR] After correcting the problems, you can resume the build with the command
[ERROR]   mvn <args> -rf :files
(base) [root@rocky8 views]#

問題説明報錯關鍵字 MDEP-187 表示在多模塊構建時，maven-dependency-plugin 試圖複製尚未打包的依賴，導致當前模塊找不到目標 artifact 文件（即 jar 未生成），從而觸發構建失敗。

其根因是 copy-dependencies 階段執行得過早，還沒到 artifact 打包完畢的生命週期階段。

二、問題根因分析

1、執行階段錯誤

在原始配置中，copy-dependencies 位於 generate-resources 階段：

<execution>
    <phase>generate-resources</phase>
    <goals>
        <goal>copy-dependencies</goal>
    </goals>
    <configuration>
        <outputDirectory>${project.build.directory}/lib</outputDirectory>
        <includeScope>runtime</includeScope>
    </configuration>
</execution>

而 Maven 的生命週期順序中：

validate → compile → test → package → verify → install → deploy

在 generate-resources 階段執行 copy-dependencies，意味着此時依賴 jar 尚未打包生成，因此出現：

Artifact has not been packaged yet

即：maven-dependency-plugin 在嘗試複製目標 jar 時發現文件不存在。

三、修復點一：修改 capacity-scheduler 模塊

contrib/views/capacity-scheduler/pom.xml

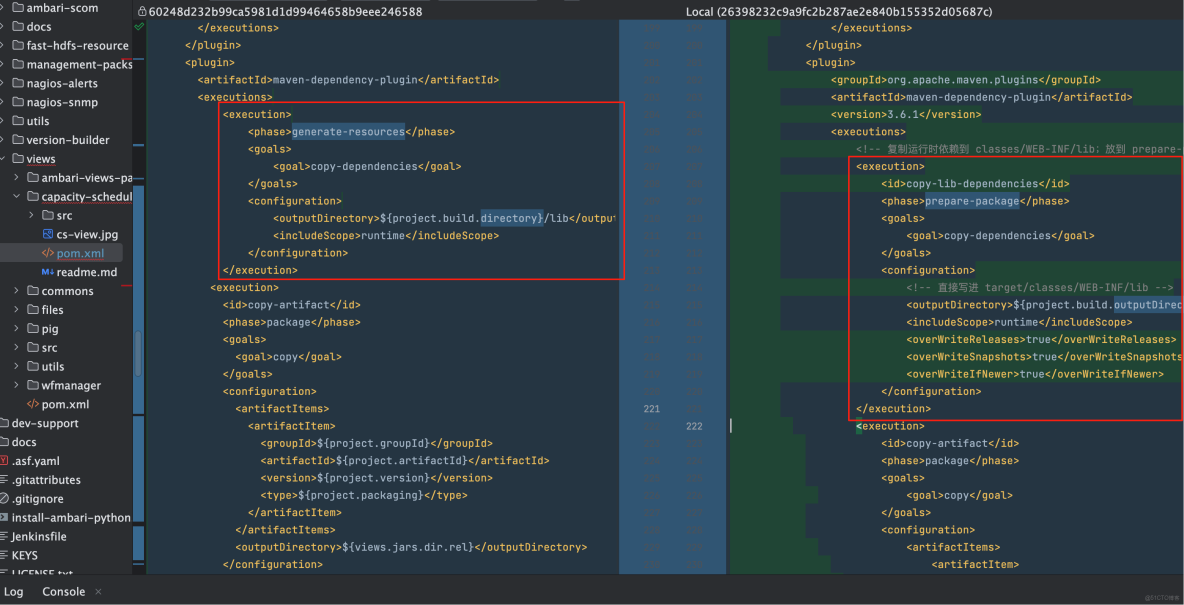

MDEP-187 從根因到修復_運維_02

1、原始配置（錯誤示例）

<execution>
    <phase>generate-resources</phase>
    <goals>
        <goal>copy-dependencies</goal>
    </goals>
    <configuration>
        <outputDirectory>${project.build.directory}/lib</outputDirectory>
        <includeScope>runtime</includeScope>
    </configuration>
</execution>

2、修改方案

將執行階段調整為 prepare-package，同時指定輸出目錄到 classes/WEB-INF/lib：

<!-- 複製運行時依賴到 classes/WEB-INF/lib；放到 prepare-package，避免 MDEP-187 -->
<execution>
    <id>copy-lib-dependencies</id>
    <phase>prepare-package</phase>
    <goals>
        <goal>copy-dependencies</goal>
    </goals>
    <configuration>
        <!-- 直接寫進 target/classes/WEB-INF/lib -->
        <outputDirectory>${project.build.outputDirectory}/WEB-INF/lib</outputDirectory>
        <includeScope>runtime</includeScope>
        <overWriteReleases>true</overWriteReleases>
        <overWriteSnapshots>true</overWriteSnapshots>
        <overWriteIfNewer>true</overWriteIfNewer>
    </configuration>
</execution>

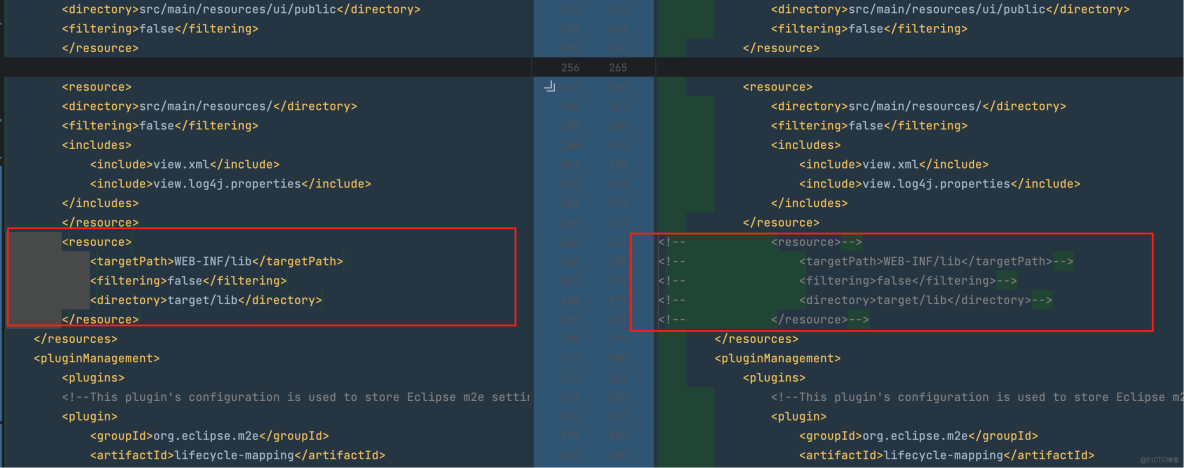

MDEP-187 從根因到修復_Bigtop_03

3、註釋掉原 lib 拷貝資源段

<!-- 註釋掉舊資源拷貝段 -->
<!--
<resource>
    <targetPath>WEB-INF/lib</targetPath>
    <filtering>false</filtering>
    <directory>target/lib</directory>
</resource>
-->

四、修復點二：修改 files 模塊

contrib/views/files/pom.xml

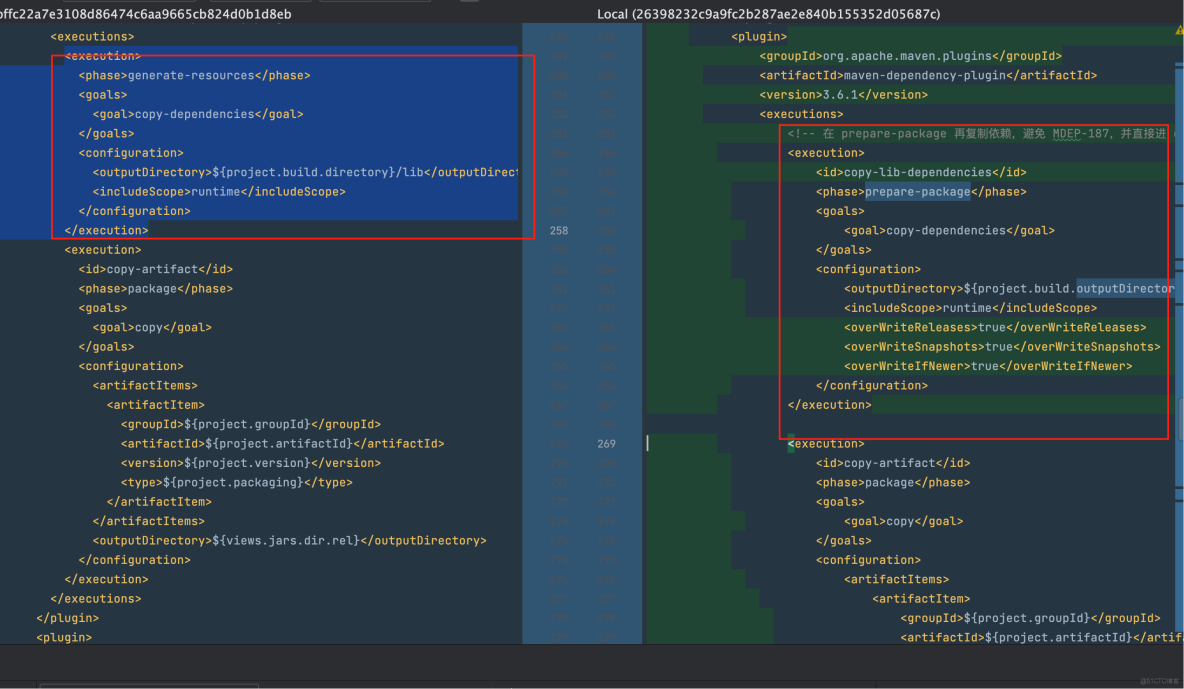

MDEP-187 從根因到修復_開源大數據_04

1、原始配置

<execution>
    <phase>generate-resources</phase>
    <goals>
        <goal>copy-dependencies</goal>
    </goals>
    <configuration>
        <outputDirectory>${project.build.directory}/lib</outputDirectory>
        <includeScope>runtime</includeScope>
    </configuration>
</execution>

2、替換後的正確寫法

<!-- 在 prepare-package 再複製依賴，避免 MDEP-187，並直接進 classes/WEB-INF/lib -->
<execution>
    <id>copy-lib-dependencies</id>
    <phase>prepare-package</phase>
    <goals>
        <goal>copy-dependencies</goal>
    </goals>
    <configuration>
        <outputDirectory>${project.build.outputDirectory}/WEB-INF/lib</outputDirectory>
        <includeScope>runtime</includeScope>
        <overWriteReleases>true</overWriteReleases>
        <overWriteSnapshots>true</overWriteSnapshots>
        <overWriteIfNewer>true</overWriteIfNewer>
    </configuration>
</execution>

五、驗證與重新編譯

兩處修改完成後，重新執行編譯命令：

# 使用 JDK 17
export JAVA_HOME=/opt/modules/jdk-17.0.2
export PATH=$JAVA_HOME/bin:$PATH

java -version

# 編譯 Views 子模塊
cd /opt/modules/ambari3/contrib/views
mvn clean install -DskipTests

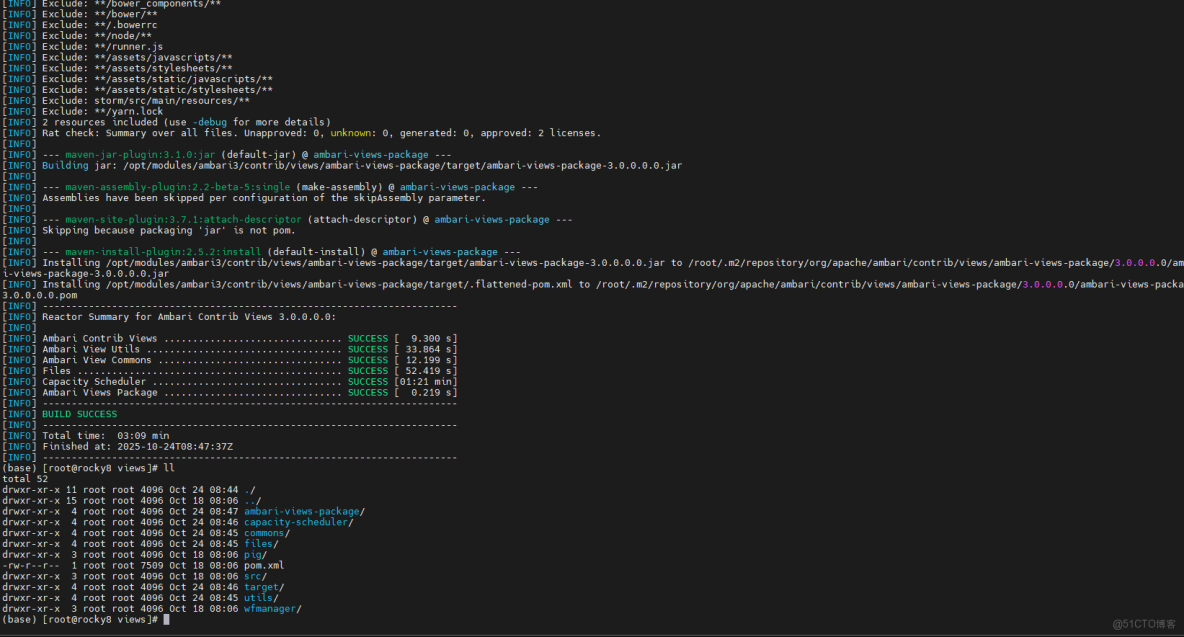

MDEP-187 從根因到修復_Ambari_05

編譯結果當日志顯示 所有 Views 模塊 SUCCESS，即代表 MDEP-187 已修復。

六、補丁方式自動修復（推薦）

如果你使用的是 ambari-env 環境，可以直接使用補丁腳本修復：

https://github.com/TtBigdata/ambari-env/blob/dev/scripts/build/ambari3/common/patch2_2_1/patch2-VIEWS-COMPILE-FIXED.diff

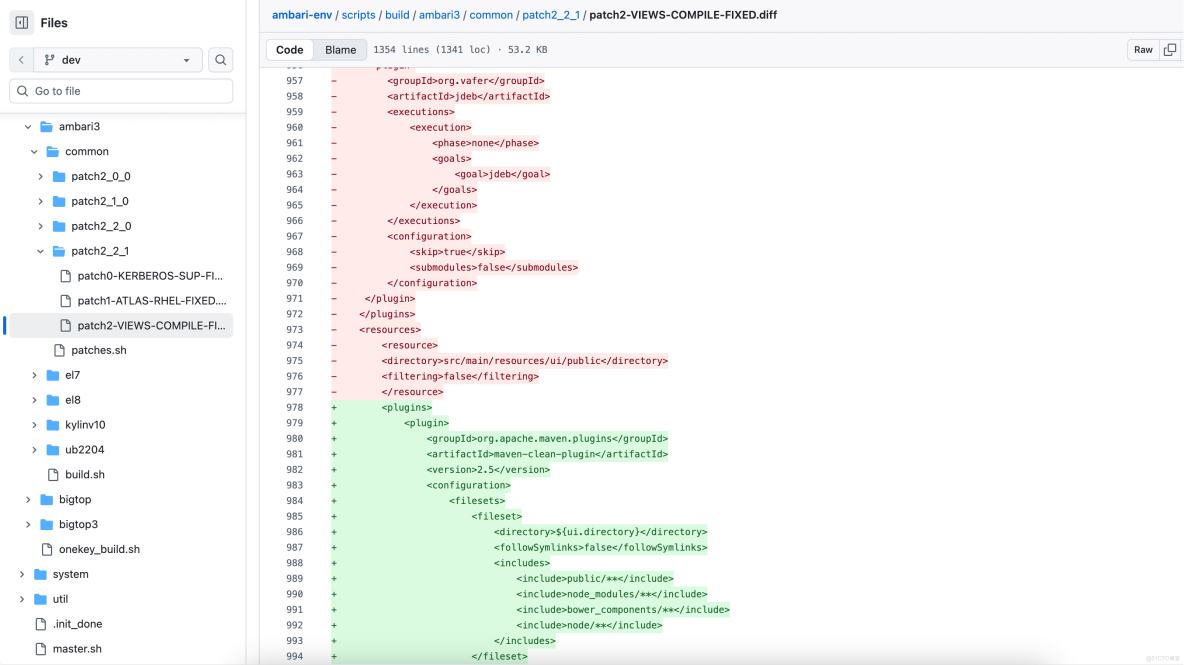

MDEP-187 從根因到修復_開源大數據_06

該補丁會自動調整兩個 POM 文件中的執行階段與路徑，確保後續構建穩定。
