docker run -p 3307:3306 --name mysql-master #3307映射到3306，容器名為mysql-master
-v /app/mysql/mydata/mysql-master/log:/var/log/mysql #容器數據卷
-v /app/mysql/mydata/mysql-master/data:/var/lib/mysql
-v /app/mysql/mydata/mysql-master/conf:/etc/mysql
-e MYSQL_ROOT_PASSWORD=root # -e配置環境，配置了root的密碼為root
-d mysql:5.7

完整命令
docker run -p 3307:3306 --name mysql-master -v /app/mysql/mydata/mysql-master/log:/var/log/mysql -v /app/mysql/mydata/mysql-master/data:/var/lib/mysql -v /app/mysql/mydata/mysql-master/conf:/etc/mysql -e MYSQL_ROOT_PASSWORD=root -d mysql:5.7
2、進入/app/mysql/mydata/mysql-master/conf目錄下新建my.cnf
[mysqld]
## 設置server_id，同一局域網中需要唯一
server_id=101
## 指定不需要同步的數據庫名稱
binlog-ignore-db=mysql
## 開啓二進制日誌功能
log-bin=mall-mysql-bin
## 設置二進制日誌使用內存大小（事務）
binlog_cache_size=1M
## 設置使用的二進制日誌格式（mixed,statement,row）
binlog_format=mixed
## 二進制日誌過期清理時間。默認值為0，表示不自動清理。
expire_logs_days=7
## 跳過主從複製中遇到的所有錯誤或指定類型的錯誤，避免slave端複製中斷。
## 如：1062錯誤是指一些主鍵重複，1032錯誤是因為主從數據庫數據不一致
slave_skip_errors=1062
3、修改完配置之後重啓master實例
docker restart mysql-master
4、進入mysql-master容器
[root@centos100 conf]# docker exec -it mysql-master /bin/bash
root@b58afbb1ac1a:/# mysql -uroot -p
Enter password:
...
mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |		<--上面配置不需要同步的數據庫名稱mysql，指的就是這個庫
| performance_schema |
| sys                |
+--------------------+
4 rows in set (0.00 sec)
5、master容器實例內創建數據同步用户
#創建一個用户
mysql> create user 'slave'@'%' identified by '123456';
Query OK, 0 rows affected (0.03 sec)

#授權
mysql> grant replication slave,replication client on *.* to 'slave'@'%';
Query OK, 0 rows affected (0.00 sec)

docker run -p 3308:3306 --name mysql-slave #端口映射，3308映射到3306，修改容器名為mysql-slave
-v /app/mysql/mydata/mysql-slave/log:/var/log/mysql #添加容器卷
-v /app/mysql/mydata/mysql-slave/data:/var/lib/mysql
-v /app/mysql/mydata/mysql-slave/conf:/etc/mysql
-e MYSQL_ROOT_PASSWORD=root #創建root密碼為root
-d mysql:5.7 #鏡像名

完整命令
docker run -p 3308:3306 --name mysql-slave -v /app/mysql/mydata/mysql-slave/log:/var/log/mysql -v /app/mysql/mydata/mysql-slave/data:/var/lib/mysql -v /app/mysql/mydata/mysql-slave/conf:/etc/mysql -e MYSQL_ROOT_PASSWORD=root -d mysql:5.7
7、進入/app/mysql/mydata/mysql-slave/conf目錄下新建my.cnf
[mysqld]
## 設置server_id，同一局域網中需要唯一
server_id=102
## 指定不需要同步的數據庫名稱
binlog-ignore-db=mysql
## 開啓二進制日誌功能，以備Slave作為其它數據庫實例的Master時使用
log-bin=mall-mysql-slave1-bin
## 設置二進制日誌使用內存大小（事務）
binlog_cache_size=1M
## 設置使用的二進制日誌格式（mixed,statement,row）
binlog_format=mixed
## 二進制日誌過期清理時間。默認值為0，表示不自動清理。
expire_logs_days=7
## 跳過主從複製中遇到的所有錯誤或指定類型的錯誤，避免slave端複製中斷。
## 如：1062錯誤是指一些主鍵重複，1032錯誤是因為主從數據庫數據不一致
slave_skip_errors=1062
## relay_log配置中繼日誌
relay_log=mall-mysql-relay-bin
## log_slave_updates表示slave將複製事件寫進自己的二進制日誌
log_slave_updates=1
## slave設置為只讀（具有super權限的用户除外）
read_only=1
8、修改完配置後重啓slave實例
docker restart mysql-slave
9、在主數據庫中查看主從同步狀態
[root@centos100 conf]# docker exec -it mysql-master /bin/bash
root@b58afbb1ac1a:/# mysql -uroot -p
Enter password:
...
mysql> show master status;
+-----------------------+----------+--------------+------------------+-------------------+
| File                  | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+-----------------------+----------+--------------+------------------+-------------------+
| mall-mysql-bin.000001 |      617 |              | mysql            |                   |
+-----------------------+----------+--------------+------------------+-------------------+
1 row in set (0.00 sec)
10、進入mysql-slave容器
[root@centos100 conf]# docker exec -it mysql-slave /bin/bash
root@ee7d461daf7f:/# mysql -uroot -p
Enter password:
11、在從數據庫中配置主從複製
change master to master_host='宿主機ip', master_user='slave', master_password='123456', master_port=3307, master_log_file='mall-mysql-bin.000001', master_log_pos=617, master_connect_retry=30;

主從複製命令參數説明
master_host：主數據庫的IP地址；
master_port：主數據庫的運行端口；
master_user：在主數據庫創建的用於同步數據的用户賬號；
master_password：在主數據庫創建的用於同步數據的用户密碼；
master_log_file：指定從數據庫要複製數據的日誌文件，通過查看主數據的狀態，獲取File參數；
master_log_pos：指定從數據庫從哪個位置開始複製數據，通過查看主數據的狀態，獲取Position參數；
master_connect_retry：連接失敗重試的時間間隔，單位為秒。
12、在從數據庫中查看主從同步狀態
show slave status\G;
13、在從數據庫開啓主從同步
mysql> start slave;
Query OK, 0 rows affected (0.01 sec)

執行這個命令之前，在12步時可以看到
         Slave_IO_Running: No
         Slave_SQL_Running: No
當執行成功後
         Slave_IO_Running: Yes
         Slave_SQL_Running: Yes
14、查看從數據庫狀態發現已經同步
15、主從複製測試
主機創建庫、表
mysql> create database db01;
Query OK, 1 row affected (0.00 sec)

mysql> use db01;
Database changed
mysql> create table t1(id int,name varchar(12));
Query OK, 0 rows affected (0.00 sec)
mysql> insert into t1 values (1,'zhangsan');
Query OK, 1 row affected (0.01 sec)

mysql> select * from t1;
+------+----------+
| id   | name     |
+------+----------+
|    1 | zhangsan |
+------+----------+
1 row in set (0.00 sec)
從機
mysql> use db01;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Database changed
mysql> select * from t1;
+------+----------+
| id   | name     |
+------+----------+
|    1 | zhangsan |
+------+----------+
1 row in set (0.00 sec)

1、新建6個docker容器實例
docker run -d	#創建並運行docker容器實例
--name redis-node-1	#容器名字

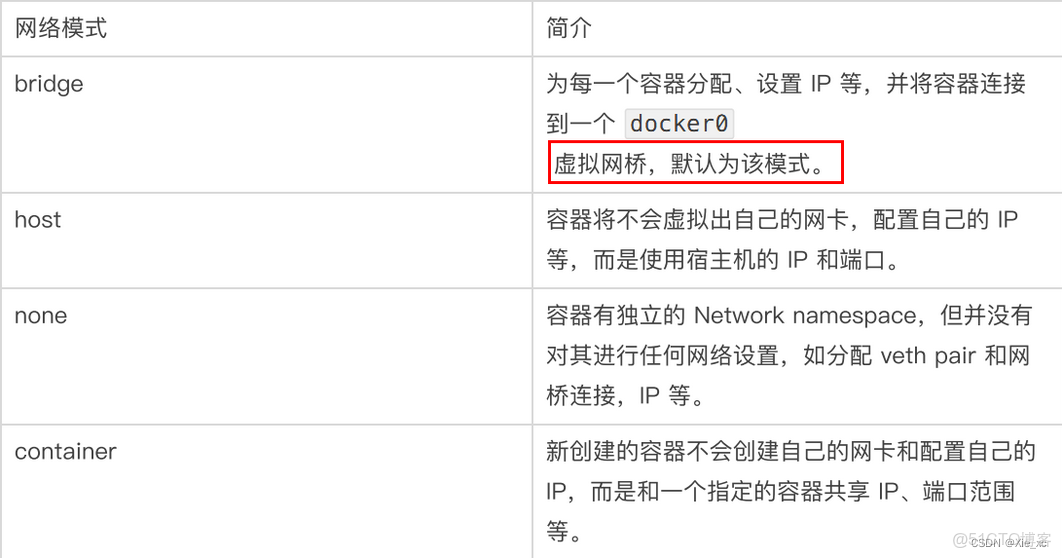

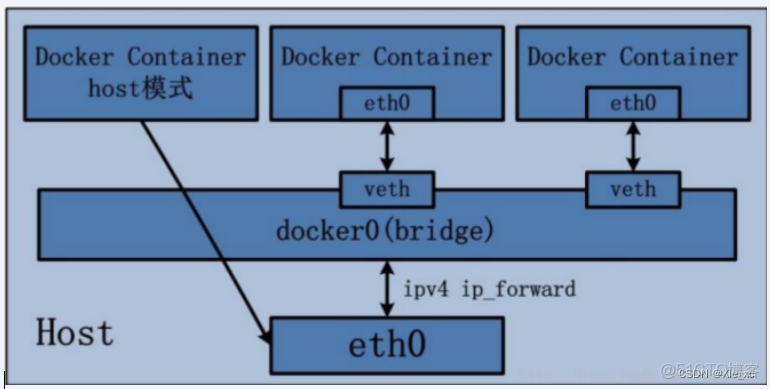

--net host	#使用宿主機的ip端口，默認
--privileged=true	#獲取宿主機的用户權限
-v /app/redis/share/redis-node-1:/data	#容器卷  宿主機地址：docker內部地址
redis #redis鏡像
--cluster-enabled yes	#開啓redis集羣
--appendonly yes	#開啓持久化
--port 6381	#redis端口


docker run -d --name redis-node-1 --net host --privileged=true -v /app/redis/share/redis-node-1:/data redis --cluster-enabled yes --appendonly yes --port 6381

docker run -d --name redis-node-2 --net host --privileged=true -v /app/redis/share/redis-node-2:/data redis --cluster-enabled yes --appendonly yes --port 6382

docker run -d --name redis-node-3 --net host --privileged=true -v /app/redis/share/redis-node-3:/data redis --cluster-enabled yes --appendonly yes --port 6383

docker run -d --name redis-node-4 --net host --privileged=true -v /app/redis/share/redis-node-4:/data redis --cluster-enabled yes --appendonly yes --port 6384

docker run -d --name redis-node-5 --net host --privileged=true -v /app/redis/share/redis-node-5:/data redis --cluster-enabled yes --appendonly yes --port 6385

docker run -d --name redis-node-6 --net host --privileged=true -v /app/redis/share/redis-node-6:/data redis --cluster-enabled yes --appendonly yes --port 6386
2、進入容器redis-node-1併為6台機器構建集羣關係
//注意，進入docker容器後才能執行一下命令，且注意自己的真實IP地址
redis-cli --cluster create 192.168.75.100:6381 192.168.75.100:6382 192.168.75.100:6383 192.168.75.100:6384 192.168.75.100:6385 192.168.75.100:6386 --cluster-replicas 1

--cluster-replicas 1 表示為每個master創建一個slave節點[root@centos100 ~]# docker exec -it redis-node-1 /bin/bash
root@centos100:/data# redis-cli --cluster create 192.168.75.100:6381 192.168.75.100:6382 192.168.75.100:6383 192.168.75.100:6384 192.168.75.100:6385 192.168.75.100:6386 --cluster-replicas 1
>>> Performing hash slots allocation on 6 nodes...
Master[0] -> Slots 0 - 5460
Master[1] -> Slots 5461 - 10922
Master[2] -> Slots 10923 - 16383
Adding replica 192.168.75.100:6385 to 192.168.75.100:6381
Adding replica 192.168.75.100:6386 to 192.168.75.100:6382
Adding replica 192.168.75.100:6384 to 192.168.75.100:6383
>>> Trying to optimize slaves allocation for anti-affinity
[WARNING] Some slaves are in the same host as their master
M: 08df796c1908646c721bf261d01604cfcde0bdec 192.168.75.100:6381
slots:[0-5460] (5461 slots) master
M: c71627fc6d20b9ca61fca76d1fd7e0adab02ec48 192.168.75.100:6382
slots:[5461-10922] (5462 slots) master
M: 1f37845789f52b4713200bbc4bc89dbad1fdfdf5 192.168.75.100:6383
slots:[10923-16383] (5461 slots) master
S: 16da45b459ba780926566fcda4407cf0798f01ca 192.168.75.100:6384
replicates c71627fc6d20b9ca61fca76d1fd7e0adab02ec48
S: 7ea18ad035fd83d1e6828022832915ffd7c1d89c 192.168.75.100:6385
replicates 1f37845789f52b4713200bbc4bc89dbad1fdfdf5
S: 1240de80a446da678036b886d11beddee60c6ba3 192.168.75.100:6386
replicates 08df796c1908646c721bf261d01604cfcde0bdec
Can I set the above configuration? (type 'yes' to accept): yes
>>> Nodes configuration updated
>>> Assign a different config epoch to each node
>>> Sending CLUSTER MEET messages to join the cluster
Waiting for the cluster to join
....
>>> Performing Cluster Check (using node 192.168.75.100:6381)
M: 08df796c1908646c721bf261d01604cfcde0bdec 192.168.75.100:6381
slots:[0-5460] (5461 slots) master
1 additional replica(s)
S: 16da45b459ba780926566fcda4407cf0798f01ca 192.168.75.100:6384
slots: (0 slots) slave
replicates c71627fc6d20b9ca61fca76d1fd7e0adab02ec48
M: c71627fc6d20b9ca61fca76d1fd7e0adab02ec48 192.168.75.100:6382
slots:[5461-10922] (5462 slots) master
1 additional replica(s)
S: 1240de80a446da678036b886d11beddee60c6ba3 192.168.75.100:6386
slots: (0 slots) slave
replicates 08df796c1908646c721bf261d01604cfcde0bdec
S: 7ea18ad035fd83d1e6828022832915ffd7c1d89c 192.168.75.100:6385
slots: (0 slots) slave
replicates 1f37845789f52b4713200bbc4bc89dbad1fdfdf5
M: 1f37845789f52b4713200bbc4bc89dbad1fdfdf5 192.168.75.100:6383
slots:[10923-16383] (5461 slots) master
1 additional replica(s)
[OK] All nodes agree about slots configuration.
>>> Check for open slots...
>>> Check slots coverage...
[OK] All 16384 slots covered.
root@centos100:/data#
3、鏈接進入6381作為切入點，查看集羣狀態
root@centos100:/data# redis-cli -p 6381
127.0.0.1:6381> cluster info
cluster_state:ok
cluster_slots_assigned:16384
cluster_slots_ok:16384
cluster_slots_pfail:0
cluster_slots_fail:0
cluster_known_nodes:6	#6個節點
cluster_size:3
cluster_current_epoch:6
cluster_my_epoch:1
cluster_stats_messages_ping_sent:188
cluster_stats_messages_pong_sent:198
cluster_stats_messages_sent:386
cluster_stats_messages_ping_received:193
cluster_stats_messages_pong_received:188
cluster_stats_messages_meet_received:5
cluster_stats_messages_received:386

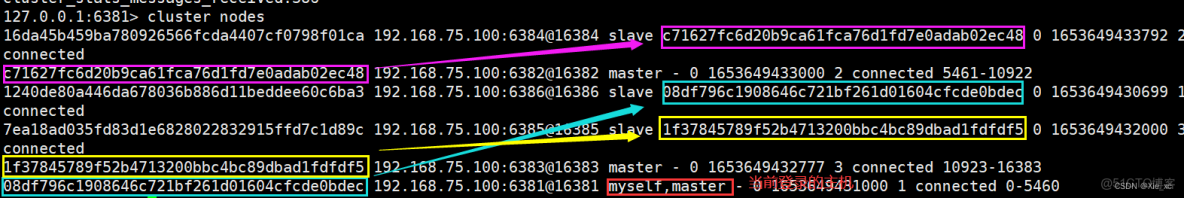

127.0.0.1:6381> cluster nodes
16da45b459ba780926566fcda4407cf0798f01ca 192.168.75.100:6384@16384 slave c71627fc6d20b9ca61fca76d1fd7e0adab02ec48 0 1653649433792 2 connected
c71627fc6d20b9ca61fca76d1fd7e0adab02ec48 192.168.75.100:6382@16382 master - 0 1653649433000 2 connected 5461-10922
1240de80a446da678036b886d11beddee60c6ba3 192.168.75.100:6386@16386 slave 08df796c1908646c721bf261d01604cfcde0bdec 0 1653649430699 1 connected
7ea18ad035fd83d1e6828022832915ffd7c1d89c 192.168.75.100:6385@16385 slave 1f37845789f52b4713200bbc4bc89dbad1fdfdf5 0 1653649432000 3 connected
1f37845789f52b4713200bbc4bc89dbad1fdfdf5 192.168.75.100:6383@16383 master - 0 1653649432777 3 connected 10923-16383
08df796c1908646c721bf261d01604cfcde0bdec 192.168.75.100:6381@16381 myself,master - 0 1653649431000 1 connected 0-5460

#根據輸出結果來看 1 -> 6  2 -> 4  3 -> 5
127.0.0.1:6381>

1、主6381和從機切換，先停止6381
[root@centos100 ~]# docker stop redis-node-1
redis-node-1
2、再次查看集羣信息
[root@centos100 ~]# docker exec -it redis-node-2 /bin/bash
root@centos100:/data# redis-cli -p 6382 -c

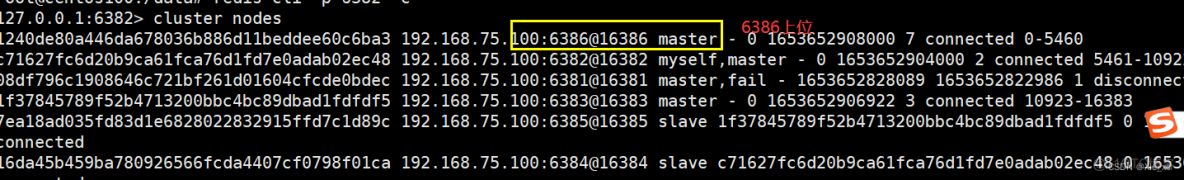

127.0.0.1:6382> cluster nodes
1240de80a446da678036b886d11beddee60c6ba3 192.168.75.100:6386@16386 master - 0 1653652908000 7 connected 0-5460
c71627fc6d20b9ca61fca76d1fd7e0adab02ec48 192.168.75.100:6382@16382 myself,master - 0 1653652904000 2 connected 5461-10922
08df796c1908646c721bf261d01604cfcde0bdec 192.168.75.100:6381@16381 master,fail - 1653652828089 1653652822986 1 disconnected
1f37845789f52b4713200bbc4bc89dbad1fdfdf5 192.168.75.100:6383@16383 master - 0 1653652906922 3 connected 10923-16383
7ea18ad035fd83d1e6828022832915ffd7c1d89c 192.168.75.100:6385@16385 slave 1f37845789f52b4713200bbc4bc89dbad1fdfdf5 0 1653652908000 3 connected
16da45b459ba780926566fcda4407cf0798f01ca 192.168.75.100:6384@16384 slave c71627fc6d20b9ca61fca76d1fd7e0adab02ec48 0 1653652908967 2 connected

[root@centos100 ~]# docker start redis-node-1
redis-node-1
[root@centos100 ~]# docker exec -it redis-node-1 /bin/bash
root@centos100:/data# redis-cli -p 6381 -c
127.0.0.1:6381> cluster nodes
16da45b459ba780926566fcda4407cf0798f01ca 192.168.75.100:6384@16384 slave c71627fc6d20b9ca61fca76d1fd7e0adab02ec48 0 1653653200093 2 connected
7ea18ad035fd83d1e6828022832915ffd7c1d89c 192.168.75.100:6385@16385 slave 1f37845789f52b4713200bbc4bc89dbad1fdfdf5 0 1653653202126 3 connected
1f37845789f52b4713200bbc4bc89dbad1fdfdf5 192.168.75.100:6383@16383 master - 0 1653653203142 3 connected 10923-16383
c71627fc6d20b9ca61fca76d1fd7e0adab02ec48 192.168.75.100:6382@16382 master - 0 1653653201111 2 connected 5461-10922
1240de80a446da678036b886d11beddee60c6ba3 192.168.75.100:6386@16386 master - 0 1653653200000 7 connected 0-5460
08df796c1908646c721bf261d01604cfcde0bdec 192.168.75.100:6381@16381 myself,slave 1240de80a446da678036b886d11beddee60c6ba3 0 1653653201000 7 connected

1、新建6387、6388兩個節點，新建後啓動，檢查是否8個節點
docker run -d --name redis-node-7 --net host --privileged=true -v /data/redis/share/redis-node-7:/data redis --cluster-enabled yes --appendonly yes --port 6387

docker run -d --name redis-node-8 --net host --privileged=true -v /data/redis/share/redis-node-8:/data redis --cluster-enabled yes --appendonly yes --port 6388
2、進入到6387容器內部
3、將新增的6387節點（空槽位）作為master節點加入原集羣
將新增的6387作為master節點加入集羣
redis-cli --cluster add-node 自己實際IP地址:6387 自己實際IP地址:6381
6387 就是將要作為master新增節點
6381 就是原來集羣節點裏面的領路人，相當於6387拜拜6381的碼頭從而找到組織加入集羣

redis-cli --cluster add-node 192.168.75.100:6387 192.168.75.100:6381

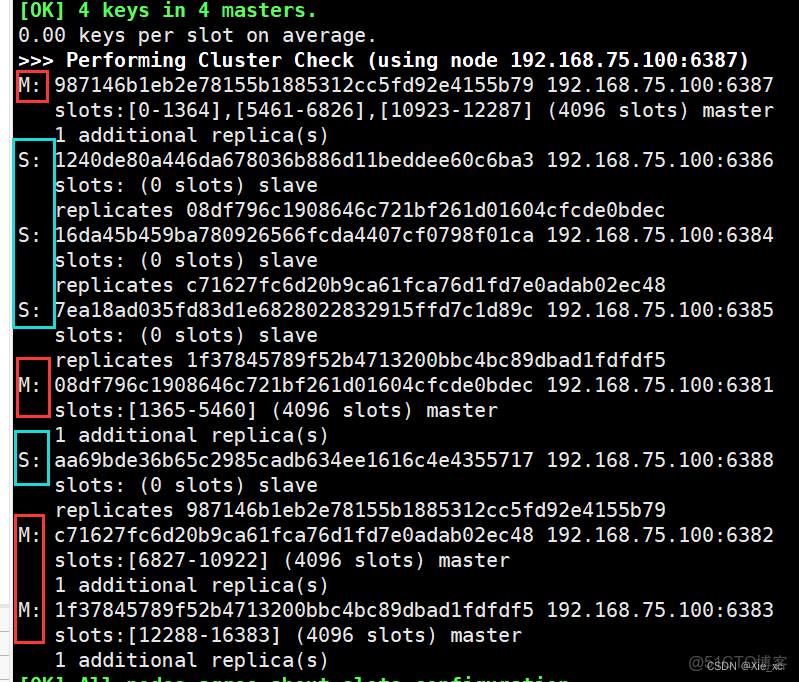

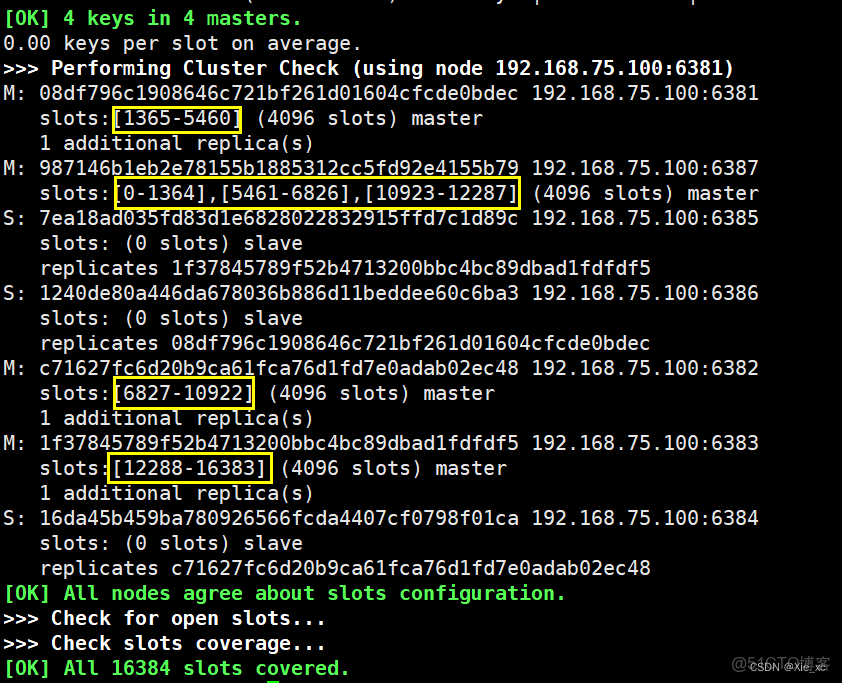

4、檢查集羣的情況第一次
root@centos100:/data# redis-cli --cluster check 192.168.75.100:6381
192.168.75.100:6381 (08df796c...) -> 2 keys | 5461 slots | 1 slaves.
192.168.75.100:6387 (987146b1...) -> 0 keys | 0 slots | 0 slaves.
192.168.75.100:6382 (c71627fc...) -> 2 keys | 5462 slots | 1 slaves.
192.168.75.100:6383 (1f378457...) -> 0 keys | 5461 slots | 1 slaves.
[OK] 4 keys in 4 masters.
0.00 keys per slot on average.
>>> Performing Cluster Check (using node 192.168.75.100:6381)
M: 08df796c1908646c721bf261d01604cfcde0bdec 192.168.75.100:6381
slots:[0-5460] (5461 slots) master
1 additional replica(s)
M: 987146b1eb2e78155b1885312cc5fd92e4155b79 192.168.75.100:6387
slots: (0 slots) master
S: 7ea18ad035fd83d1e6828022832915ffd7c1d89c 192.168.75.100:6385
slots: (0 slots) slave
replicates 1f37845789f52b4713200bbc4bc89dbad1fdfdf5
S: 1240de80a446da678036b886d11beddee60c6ba3 192.168.75.100:6386
slots: (0 slots) slave
replicates 08df796c1908646c721bf261d01604cfcde0bdec
M: c71627fc6d20b9ca61fca76d1fd7e0adab02ec48 192.168.75.100:6382
slots:[5461-10922] (5462 slots) master
1 additional replica(s)
M: 1f37845789f52b4713200bbc4bc89dbad1fdfdf5 192.168.75.100:6383
slots:[10923-16383] (5461 slots) master
1 additional replica(s)
S: 16da45b459ba780926566fcda4407cf0798f01ca 192.168.75.100:6384
slots: (0 slots) slave
replicates c71627fc6d20b9ca61fca76d1fd7e0adab02ec48

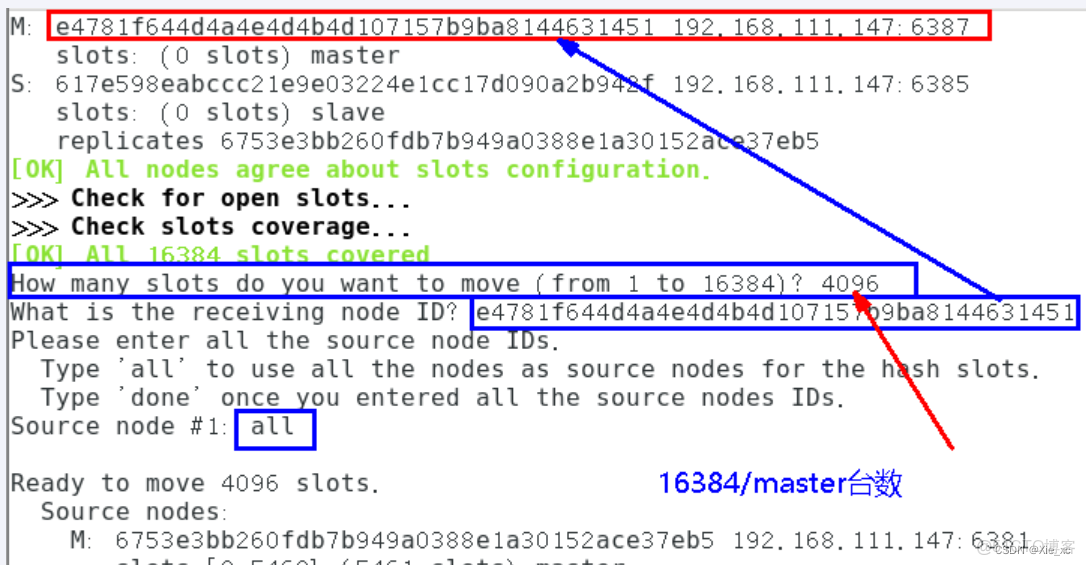

[OK] All nodes agree about slots configuration.
>>> Check for open slots...
>>> Check slots coverage...
[OK] All 16384 slots covered.

運行啓動容器時指定
docker run -p 3306:3306 --restart=always -d mysql:5.7

restart具體參數值詳細信息：
	no 容器退出時，不重啓容器；
	on-failure 只有在非0狀態退出時才從新啓動容器；
	always 無論退出狀態是如何，都重啓容器；

創建時未指定
docker update --restart=always xxx

FROM centos
#FROM centos:centos7
#實際操作時，centos最新版有問題，這裏改成centos7就可以執行成功了
MAINTAINER xie<xie@126.com>

ENV MYPATH /usr/local
WORKDIR $MYPATH

#安裝vim編輯器
RUN yum -y install vim
#安裝ifconfig命令查看網絡IP
RUN yum -y install net-tools
#安裝java8及lib庫
RUN yum -y install glibc.i686
RUN mkdir /usr/local/java
#ADD 是相對路徑jar,把jdk-8u171-linux-x64.tar.gz添加到容器中,安裝包必須要和Dockerfile文件在同一位置
ADD jdk-8u171-linux-x64.tar.gz /usr/local/java/
#配置java環境變量
ENV JAVA_HOME /usr/local/java/jdk1.8.0_171
ENV JRE_HOME $JAVA_HOME/jre
ENV CLASSPATH $JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar:$JRE_HOME/lib:$CLASSPATH
ENV PATH $JAVA_HOME/bin:$PATH

EXPOSE 80

CMD echo $MYPATH
CMD echo "success--------------ok"
CMD /bin/bash

from ubuntu
maintainer xie<xie@163.com>
env MYPATH /usr/local
workdir $MYPATH

run apt-get update
run apt-get install -y vim
run apt-get install -y net-tools
run mkdir /usr/local/java
add jdk-8u171-linux-x64.tar.gz /usr/local/java

env JAVA_HOME /usr/local/java/jdk1.8.0_171
env JRE_HOME $JAVA_HOME/jre
env CLASSPATH $JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar:$JRE_HOME/lib:$CLASSPATH
env PATH $JAVA_HOME/bin:$PATH

expose 80
cmd echo $MYPATH
CMD echo "success--------------ok"
CMD /bin/bash

yml配置
server:
port: 6001
創建一個簡單的Controller
@RestController
public class OrderController {
 @Value("${server.port}")
 private String port;
 Random random = new Random();

 @RequestMapping("/order/docker")
 public String helloDocker() {
     return "hello docker " + "\t" + port + random.nextInt(1000000);
 }

 @RequestMapping(value = "/order/index", method = RequestMethod.GET)
 public String index() {
     return "端口號：" + port + "\t" + random.nextInt(1000000);
 }
}
其餘部分都是springboot自動生成的代碼
之後通過maven打包，上傳到centos上

Compose常用命令
docker-compose -h                           # 查看幫助
docker-compose up                           # 啓動所有docker-compose服務
docker-compose up -d                        # 啓動所有docker-compose服務並後台運行
docker-compose down                         # 停止並刪除容器、網絡、卷、鏡像。
docker-compose exec  yml裏面的服務id          # 進入容器實例內部  docker-compose exec docker-compose.yml文件中寫的服務id /bin/bash
docker-compose ps                      # 展示當前docker-compose編排過的運行的所有容器
docker-compose top                     # 展示當前docker-compose編排過的容器進程

docker-compose logs  yml裏面的服務id     # 查看容器輸出日誌
docker-compose config     # 檢查配置
docker-compose config -q  # 檢查配置，有問題才有輸出
docker-compose restart   # 重啓服務
docker-compose start     # 啓動服務
docker-compose stop      # 停止服務

version: "3"

services:
  microService:
    image: zzyy_docker:1.6
    container_name: ms01
    ports:
      - "6001:6001"
    volumes:
      - /app/microService:/data
    networks:
      - atguigu_net
    depends_on:
      - redis
      - mysql

  redis:
    image: redis:6.0.8
    ports:
      - "6379:6379"
    volumes:
      - /app/redis/redis.conf:/etc/redis/redis.conf
      - /app/redis/data:/data
    networks:
      - atguigu_net
    command: redis-server /etc/redis/redis.conf

  mysql:
    image: mysql:5.7
    environment:
      MYSQL_ROOT_PASSWORD: '123456'
      MYSQL_ALLOW_EMPTY_PASSWRD: 'no'

      MYSQL_DATABASE: 'db2021'
      MYSQL_USER: 'zzyy'
      MYSQL_PASSWORD: 'zzyy123'
    ports:
       - "3306:3306"
    volumes:
       - /app/mysql/db:/var/lib/mysql
       - /app/mysql/conf/my.cnf:/etc/my.cnf
       - /app/mysql/init:/docker-entrypoint-initdb.d
    networks:
      - atguigu_net
    command: --default-authentication-plugin=mysql_native_password #解決外部無法訪問

networks:
   atguigu_net:
執行docker-compose up -d
[root@centos100 testpackage]# docker-compose up -d
Creating testpackage_mysql_1 ... done
Creating testpackage_redis_1 ... done
Creating ms01                ... done
測試
關停docker-compose stop
[root@centos100 testpackage]# docker-compose stop
Stopping ms01                ... done
Stopping testpackage_redis_1 ... done
Stopping testpackage_mysql_1 ... done

version: '3.1'

volumes:
  grafana_data: {}

services:

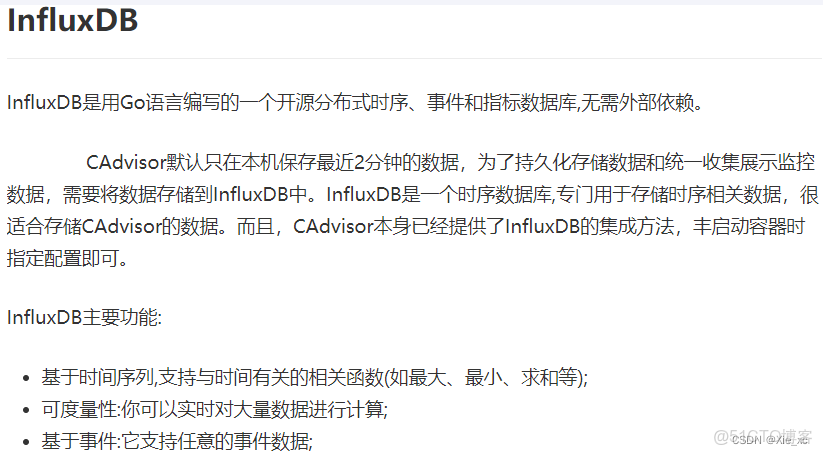

 influxdb:
  image: tutum/influxdb:0.9
  restart: always
  environment:
    - PRE_CREATE_DB=cadvisor
  ports:
    - "8083:8083"
    - "8086:8086"
  volumes:
    - ./data/influxdb:/data

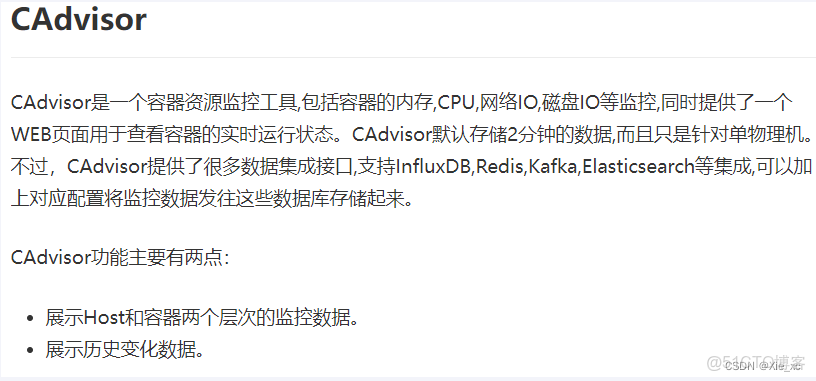

 cadvisor:
  image: google/cadvisor
  links:
    - influxdb:influxsrv
  command: -storage_driver=influxdb -storage_driver_db=cadvisor -storage_driver_host=influxsrv:8086
  restart: always
  ports:
    - "8080:8080"
  volumes:
    - /:/rootfs:ro
    - /var/run:/var/run:rw
    - /sys:/sys:ro
    - /var/lib/docker/:/var/lib/docker:ro

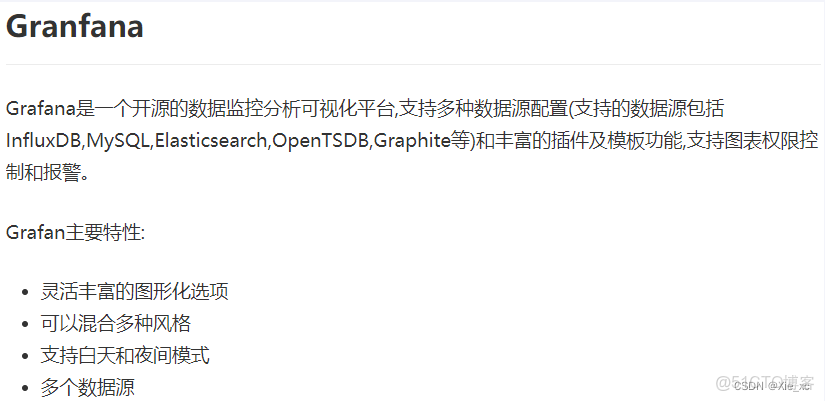

 grafana:
  user: "104"
  image: grafana/grafana
  user: "104"
  restart: always
  links:
    - influxdb:influxsrv
  ports:
    - "3000:3000"
  volumes:
    - grafana_data:/var/lib/grafana
  environment:
    - HTTP_USER=admin
    - HTTP_PASS=admin
    - INFLUXDB_HOST=influxsrv
    - INFLUXDB_PORT=8086
    - INFLUXDB_NAME=cadvisor
    - INFLUXDB_USER=root
    - INFLUXDB_PASS=root
