教程背景：
第一部分 Hopper disassember動態調試： 3
第二部分 LLDB動態調試 14
第三部分 使用Radare2動態調試 27
第四部分 分析整理算法 32
第五部分 使用Python編寫keygen 34
第六部分 使用Swift編寫keygen 36
教程背景：

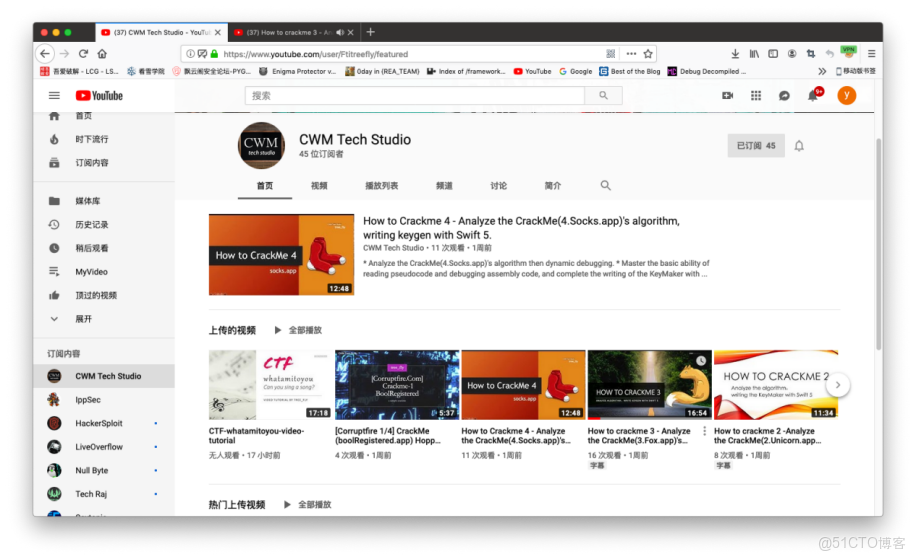

在Youtube閒逛時，無意間發現了飄雲閣飛樹大神(tree_fly)的頻道，地址如下：
其中一個教程感覺挺經典，鏈接地址為：https://www.youtube.com/watch?v=pfteHwOmQIM
教程中使用的Crackme地址為：https://reverse.put.as/wp-content/uploads/2010/05/3-Fox.zip
此教程中詳細介紹了使用Hopper和LLDB來動態調試程序，爆破註冊流程，並且給出如何提取算法以及編寫註冊機，因為算法相對來講比較簡單，所以適合菜鳥練手使用。於是乎我親自操作了一遍，覺得有必要分享給菜菜們，本教程中Hopper和LLDB動態調試以及使用Swift編寫註冊機屬完全拷貝大神的操作，如果飛樹大神覺得我有侵權行為，請提示刪帖。
第一部分 Hopper disassember動態調試：

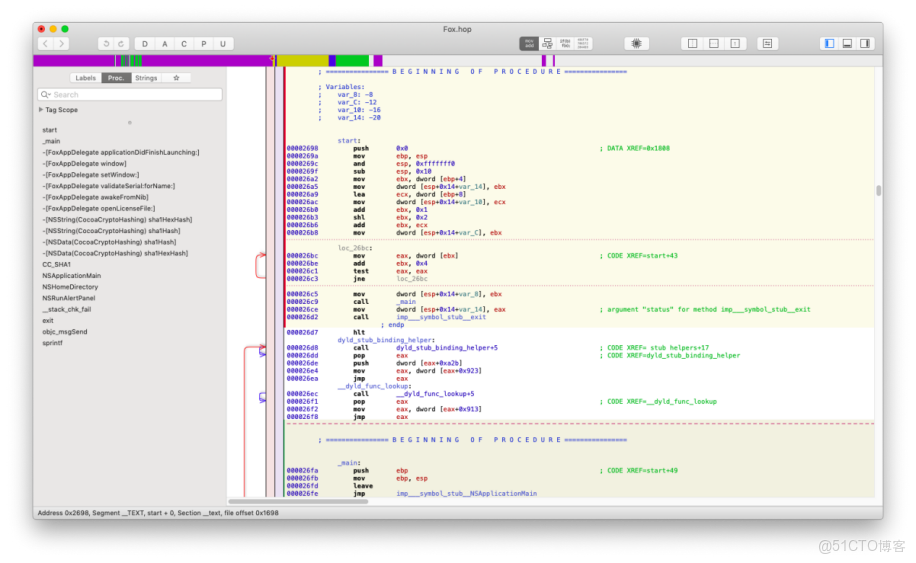

使用hopper載入程序如圖所示：
點擊本地調試器按鈕調出動態調試工具，如圖所示：
大概介紹一下調試工具的幾個控制按鈕如圖所示：
我們這裏主要用到執行和單步跟蹤按鈕以及運行到指針位置的按鈕，在寄存器選項卡中可以實時觀察寄存器值的變化，在命令調試選項卡中我們可以使用命令來查看寄存器的信息。
在動態調試之前，我們必須先分析下程序的執行流程，找到合理的斷點位置，設置好斷點才可以進行下一步的動態調試。
首先我們運行程序，點擊“Open License File”按鈕，選擇crackme自帶的演示license文件，然後點擊”Open”按鈕，出現如圖所示的信息提示。
我們在Hopper中搜索字符串“The license is not valid”,
右擊該字符串選擇“References to...”，在出現的窗口中點擊地址跳轉到調用處“cfstring_The_license_is_not_valid”，繼續使用同樣的方法找到調用該字符串的源頭，
找到-[FoxAppDelegate openLicenseFile:]這個函數。內容如下：
0000279c push ebp ; Objective C Implementation defined at 0x40f4 (instance method)
0000279d mov ebp, esp
0000279f push edi
000027a0 push esi
000027a1 push ebx
000027a2 sub esp, 0x3c
000027a5 mov eax, dword [ebp+self]
000027a8 mov dword [ebp+var_1C], eax
000027ab mov dword [esp+0x48+var_40], 0x3048 ; @"foxlicense"
000027b3 mov eax, dword [objc_msg_arrayWithObject_] ; @selector(arrayWithObject:)
000027b8 mov dword [esp+0x48+var_44], eax ; argument "selector" for method imp___symbol_stub__objc_msgSend
000027bc mov eax, dword [cls_NSArray] ; cls_NSArray
000027c1 mov dword [esp+0x48+var_48], eax ; argument "instance" for method imp___symbol_stub__objc_msgSend
000027c4 call imp___symbol_stub__objc_msgSend
000027c9 mov esi, eax
000027cb mov eax, dword [objc_msg_openPanel] ; @selector(openPanel)
000027d0 mov dword [esp+0x48+var_44], eax ; argument "selector" for method imp___symbol_stub__objc_msgSend
000027d4 mov eax, dword [cls_NSOpenPanel] ; cls_NSOpenPanel
000027d9 mov dword [esp+0x48+var_48], eax ; argument "instance" for method imp___symbol_stub__objc_msgSend
000027dc call imp___symbol_stub__objc_msgSend
000027e1 mov ebx, eax
000027e3 mov dword [esp+0x48+var_40], 0x0
000027eb mov eax, dword [objc_msg_setAllowsMultipleSelection_] ; @selector(setAllowsMultipleSelection:)
000027f0 mov dword [esp+0x48+var_44], eax ; argument "selector" for method imp___symbol_stub__objc_msgSend
000027f4 mov dword [esp+0x48+var_48], ebx ; argument "instance" for method imp___symbol_stub__objc_msgSend
000027f7 call imp___symbol_stub__objc_msgSend
000027fc call imp___symbol_stub__NSHomeDirectory
00002801 mov dword [esp+0x48+var_38], esi
00002805 mov dword [esp+0x48+var_3C], 0x0
0000280d mov dword [esp+0x48+var_40], eax
00002811 mov eax, dword [objc_msg_runModalForDirectory_file_types_] ; @selector(runModalForDirectory:file:types:)
00002816 mov dword [esp+0x48+var_44], eax ; argument "selector" for method imp___symbol_stub__objc_msgSend
0000281a mov dword [esp+0x48+var_48], ebx ; argument "instance" for method imp___symbol_stub__objc_msgSend
0000281d call imp___symbol_stub__objc_msgSend
00002822 mov eax, dword [objc_msg_filename] ; @selector(filename)
00002827 mov dword [esp+0x48+var_44], eax ; argument "selector" for method imp___symbol_stub__objc_msgSend
0000282b mov dword [esp+0x48+var_48], ebx ; argument "instance" for method imp___symbol_stub__objc_msgSend
0000282e call imp___symbol_stub__objc_msgSend
00002833 mov dword [esp+0x48+var_40], eax
00002837 mov eax, dword [objc_msg_dictionaryWithContentsOfFile_] ; @selector(dictionaryWithContentsOfFile:)
0000283c mov dword [esp+0x48+var_44], eax ; argument "selector" for method imp___symbol_stub__objc_msgSend
00002840 mov eax, dword [cls_NSDictionary] ; cls_NSDictionary
00002845 mov dword [esp+0x48+var_48], eax ; argument "instance" for method imp___symbol_stub__objc_msgSend
00002848 call imp___symbol_stub__objc_msgSend
0000284d mov edi, eax
0000284f mov dword [esp+0x48+var_40], 0x3058 ; @"regName"
00002857 mov edx, dword [objc_msg_objectForKey_] ; @selector(objectForKey:)
0000285d mov dword [esp+0x48+var_44], edx ; argument "selector" for method imp___symbol_stub__objc_msgSend
00002861 mov dword [esp+0x48+var_48], eax ; argument "instance" for method imp___symbol_stub__objc_msgSend
00002864 call imp___symbol_stub__objc_msgSend
00002869 mov ebx, eax
0000286b mov dword [esp+0x48+var_40], 0x3068 ; @"regNumber"
00002873 mov eax, dword [objc_msg_objectForKey_] ; @selector(objectForKey:)
00002878 mov dword [esp+0x48+var_44], eax ; argument "selector" for method imp___symbol_stub__objc_msgSend
0000287c mov dword [esp+0x48+var_48], edi ; argument "instance" for method imp___symbol_stub__objc_msgSend
0000287f call imp___symbol_stub__objc_msgSend
00002884 mov dword [esp+0x48+var_3C], ebx
00002888 mov dword [esp+0x48+var_40], eax
0000288c mov eax, dword [objc_msg_validateSerial_forName_] ; @selector(validateSerial:forName:)
00002891 mov dword [esp+0x48+var_44], eax ; argument "selector" for method imp___symbol_stub__objc_msgSend
00002895 mov edx, dword [ebp+var_1C]
00002898 mov dword [esp+0x48+var_48], edx ; argument "instance" for method imp___symbol_stub__objc_msgSend
0000289b call imp___symbol_stub__objc_msgSend
000028a0 test al, al
000028a2 jne loc_2908
Pseudo-code 如下：
void -[FoxAppDelegate openLicenseFile:](void * self, void * _cmd, void * arg_8) {
stack[2049] = _cmd;
stack[2048] = self;
var_1C = self;
esi = [NSArray arrayWithObject:@"foxlicense", stack[2032], stack[2033], stack[2034], stack[2035], stack[2036], stack[2037], stack[2038], stack[2039], stack[2040], stack[2041], stack[2042], stack[2043], stack[2044], stack[2045], stack[2046], stack[2047], stack[2048]];
ebx = [NSOpenPanel openPanel];
[ebx setAllowsMultipleSelection:0x0];
eax = NSHomeDirectory();
[ebx runModalForDirectory:eax file:0x0 types:esi];
eax = [ebx filename];
eax = [NSDictionary dictionaryWithContentsOfFile:eax];
edi = eax;
validateSerial:[edi objectForKey:@"regNumber"] forName:[eax objectForKey:@"regName"]] == 0x0) {
NSRunAlertPanel(@"Error!", @"The license is not valid.", @"Try again", 0x0, 0x0);
eax = *(var_1C + 0x8);
[eax setStringValue:@""];
}
else {
NSRunAlertPanel(@"Success!", @"The license is valid.", @"OK", 0x0, 0x0);
ebx = *(var_1C + 0x8);
eax = [edi objectForKey:@"regName"];
[ebx setStringValue:eax];
ebx = *(var_1C + 0xc);
[NSString stringWithFormat:@"%@...", [[edi objectForKey:@"regNumber"] substringToIndex:0xf]];
}
objc_msgSend(stack[2048], stack[2049]);
return;
}
分析得到這個函數調用一個函數名包含validateSerial的判斷函數，在函數列表中搜索包含此字符串的函數，得到如下函數信息，此函數為判斷序列號的關鍵函數。

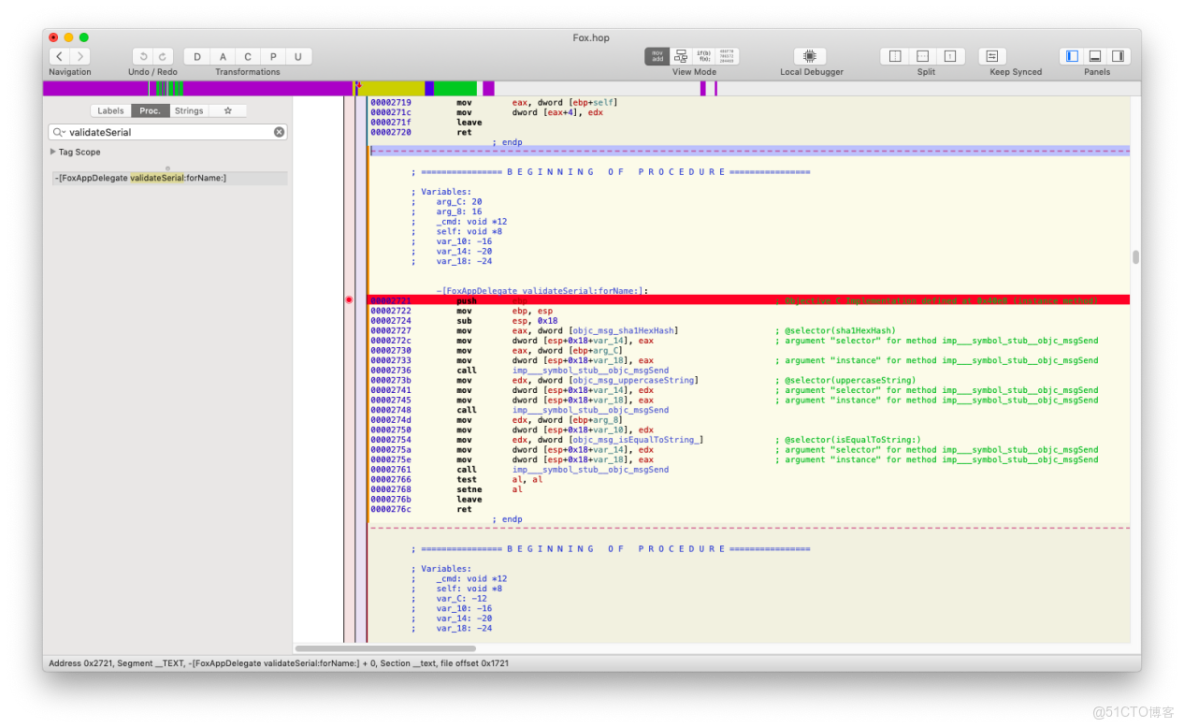

在此函數的開始位置使用F9下一個斷點，如圖所示：
下面我們開始動態調試

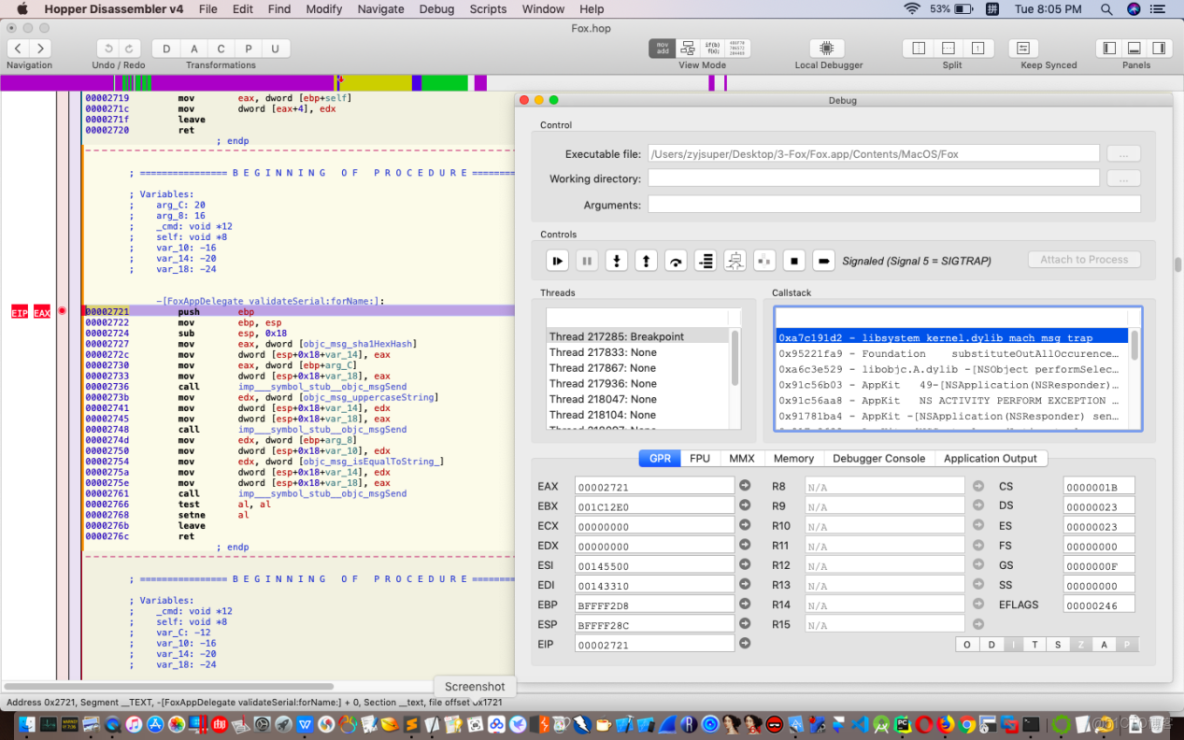

點擊“執行”按鈕，會有幾次系統中斷，我們繼續點擊“執行”按鈕，直到程序運行起來，然後打開license文件後，程序會停到我們設置的斷點位置，如圖：

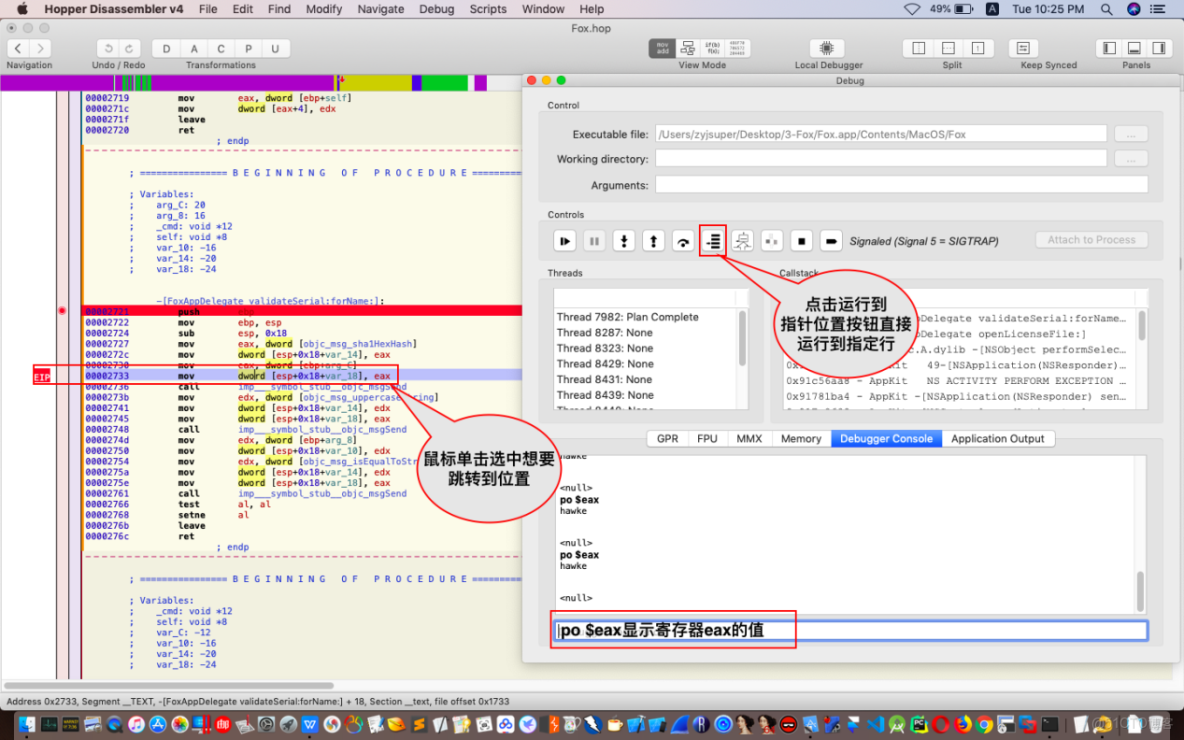

我們可以單步跟蹤到想要到位置，也可以選中我們要跳轉的位置然後點擊“運行到指針位置”按鈕直接跳轉到該位置，使用po $eax顯示用户名的內容，如圖所示：

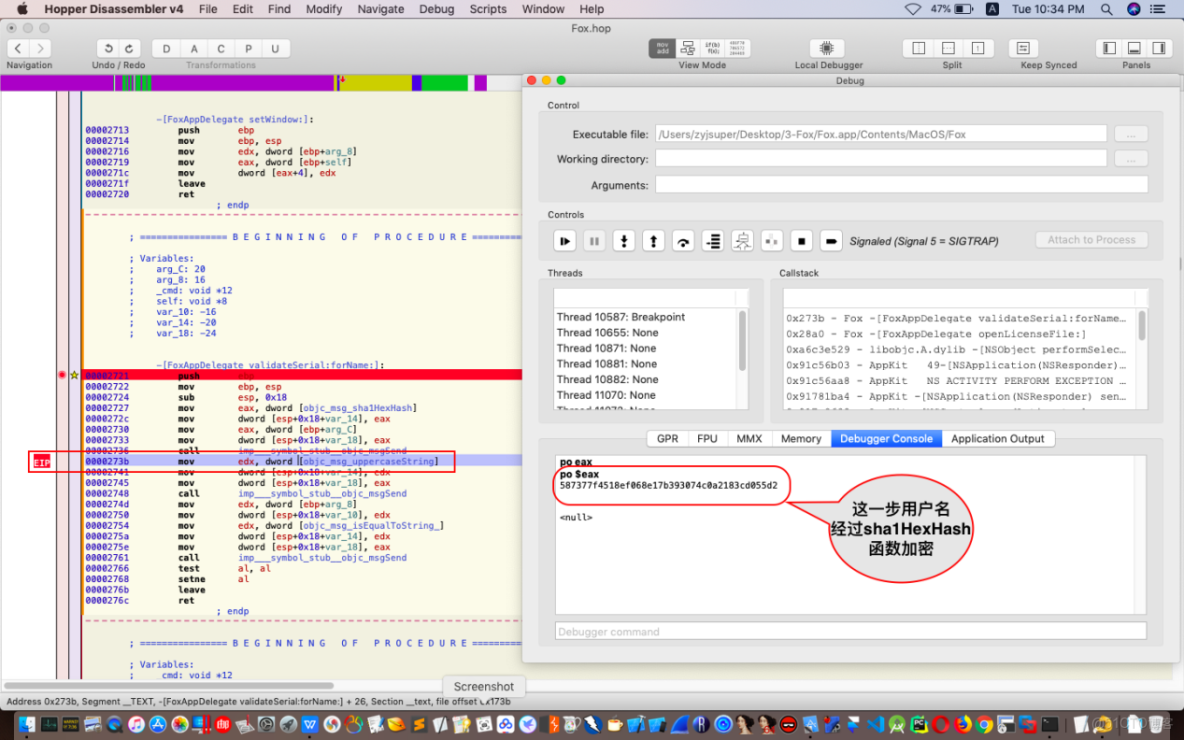

繼續單步執行或者跳轉到特定指針位置，來到下圖位置：

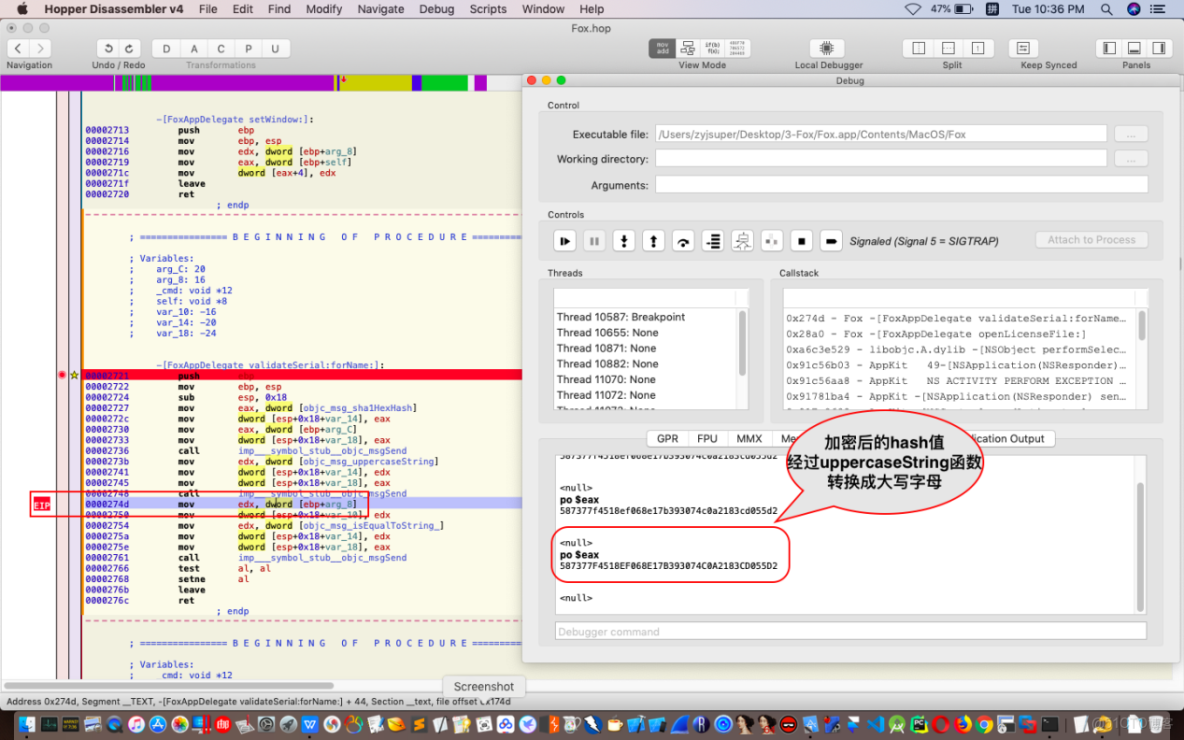

繼續單步跟蹤或者運行到指定位置，如圖：

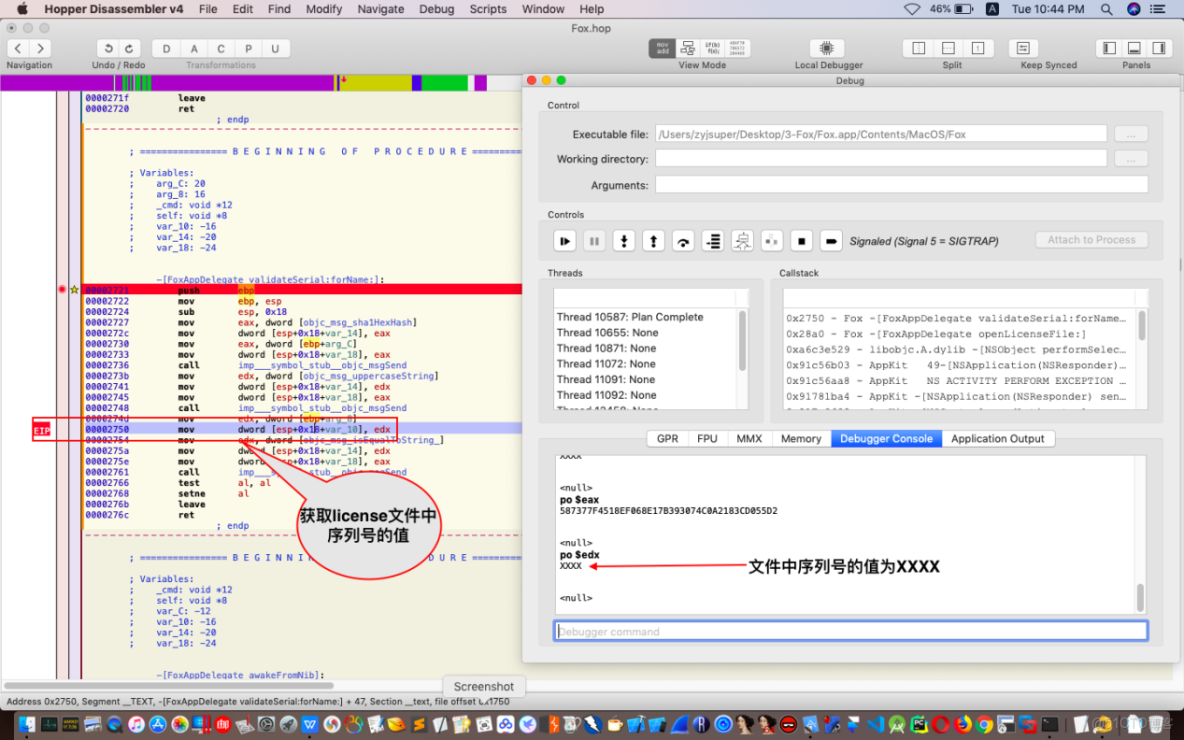

繼續單步跟蹤，來到如圖位置：
繼續單步跟蹤或者按F6，來到如圖位置：

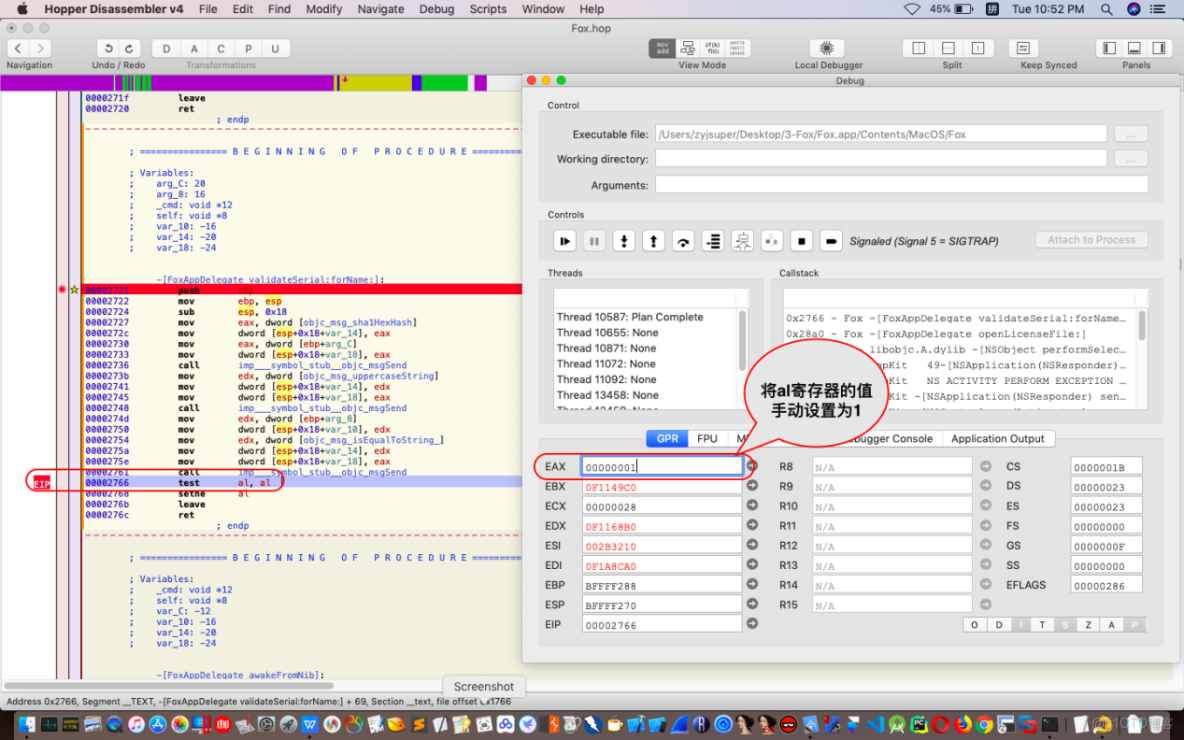

切換GPR選項卡，手動將eax的值設置為1，即al值為1，如圖所示：
點擊執行按鈕，程序提示license有效，如圖：
使用Hopper動態調試並且爆破成功。
第二部分 LLDB動態調試
使用lldb命令加載目標程序，重要的一步當然是設置斷點，參考hopper分析出的函數名，我們在函數-[FoxAppDelegate validateSerial:forName:]的起始位置下個斷點，操作如下：
zyjsupers-MacBook-Air:~ zyjsuper$ lldb ~/Desktop/3-Fox/Fox.app #加載目標程序
(lldb) target create "/Users/zyjsuper/Desktop/3-Fox/Fox.app"
Current executable set to '/Users/zyjsuper/Desktop/3-Fox/Fox.app' (i386).
(lldb) r #運行目標程序
Process 995 launched: '/Users/zyjsuper/Desktop/3-Fox/Fox.app/Contents/MacOS/Fox' (i386)
/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleFSCompression/AppleFSCompression-96.200.3/Common/ChunkCompression.cpp:49: Error: unsupported compressor 8
/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleFSCompression/AppleFSCompression-96.200.3/Libraries/CompressData/CompressData.c:353: Error: Unknown compression scheme encountered for file '/System/Library/CoreServices/CoreTypes.bundle/Contents/Resources/Exceptions.plist'
/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleFSCompression/AppleFSCompression-96.200.3/Common/ChunkCompression.cpp:49: Error: unsupported compressor 8
/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleFSCompression/AppleFSCompression-96.200.3/Libraries/CompressData/CompressData.c:353: Error: Unknown compression scheme encountered for file '/System/Library/CoreServices/CoreTypes.bundle/Contents/Library/AppExceptions.bundle/Exceptions.plist'
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = signal SIGSTOP #Ctrl+C中斷運行，程序暫停。
frame #0: 0xa7c191d2 libsystem_kernel.dylib`mach_msg_trap + 10
libsystem_kernel.dylib`mach_msg_trap:
-> 0xa7c191d2 <+10>: retl
0xa7c191d3 <+11>: nop
libsystem_kernel.dylib`mach_msg_overwrite_trap:
0xa7c191d4 <+0>: movl $0xffffffe0, %eax ; imm = 0xFFFFFFE0
0xa7c191d9 <+5>: calll 0xa7c20a9c ; _sysenter_trap
Target 0: (Fox) stopped.
(lldb) b -[FoxAppDelegate validateSerial:forName:] #設置斷點
Breakpoint 1: where = Fox`-[FoxAppDelegate validateSerial:forName:], address = 0x00002721
(lldb) br list #列出斷點
Current breakpoints:
1: name = '-[FoxAppDelegate validateSerial:forName:]', locations = 1, resolved = 1, hit count = 0
1.1: where = Fox`-[FoxAppDelegate validateSerial:forName:], address = 0x00002721, resolved, hit count = 0
(lldb) c #繼續執行程序
程序重新運行，點擊打開license文件按鈕，選擇license文件路徑後點擊打開按鈕，
.......................
/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleFSCompression/AppleFSCompression-96.200.3/Common/ChunkCompression.cpp:49: Error: unsupported compressor 8
/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleFSCompression/AppleFSCompression-96.200.3/Libraries/CompressData/CompressData.c:353: Error: Unknown compression scheme encountered for file '/System/Library/PrivateFrameworks/FinderKit.framework/Resources/Base.lproj/ColumnPreview.nib'
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = breakpoint 1.1 #程序中斷在我們設置的斷點位置。
frame #0: 0x00002721 Fox`-[FoxAppDelegate validateSerial:forName:]
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x2721 <+0>: pushl %ebp
0x2722 <+1>: movl %esp, %ebp
0x2724 <+3>: subl $0x18, %esp
0x2727 <+6>: movl 0x4008, %eax
Target 0: (Fox) stopped.
(lldb)
Process 995 resuming
(lldb) dis #反彙編-[FoxAppDelegate validateSerial:forName:]這個函數
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x2721 <+0>: pushl %ebp
0x2722 <+1>: movl %esp, %ebp
0x2724 <+3>: subl $0x18, %esp
0x2727 <+6>: movl 0x4008, %eax
0x272c <+11>: movl %eax, 0x4(%esp)
0x2730 <+15>: movl 0x14(%ebp), %eax
0x2733 <+18>: movl %eax, (%esp)
0x2736 <+21>: calll 0x2bda ; symbol stub for: objc_msgSend
0x273b <+26>: movl 0x4004, %edx
0x2741 <+32>: movl %edx, 0x4(%esp)
0x2745 <+36>: movl %eax, (%esp)
0x2748 <+39>: calll 0x2bda ; symbol stub for: objc_msgSend
0x274d <+44>: movl 0x10(%ebp), %edx
0x2750 <+47>: movl %edx, 0x8(%esp)
0x2754 <+51>: movl 0x4000, %edx
0x275a <+57>: movl %edx, 0x4(%esp)
0x275e <+61>: movl %eax, (%esp)
0x2761 <+64>: calll 0x2bda ; symbol stub for: objc_msgSend
0x2766 <+69>: testb %al, %al
0x2768 <+71>: setne %al
0x276b <+74>: leave
0x276c <+75>: retl
(lldb) po (char *)*(int *)0x4008 #將0x4008這個地址的內容轉化為字符串
"sha1HexHash" #此處對應為調用sha1HexHash
(lldb) po (char *)*(int *)0x4004
"uppercaseString" #此處對應為調用uppercaseString
(lldb) po (char *)*(int *)0x4000
"isEqualToString:" #此處對應為調用isEqualToString
按照Hopper分析的流程，我們需要分析這個驗證序列號的函數每一步都在做什麼，那麼我在關鍵位置設置幾個斷點，下面我就一步步分析來決定斷點設置在什麼位置。
(lldb) si #單步步進跟蹤
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = instruction step into
frame #0: 0x00002722 Fox`-[FoxAppDelegate validateSerial:forName:] + 1
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x2722 <+1>: movl %esp, %ebp
0x2724 <+3>: subl $0x18, %esp
0x2727 <+6>: movl 0x4008, %eax
0x272c <+11>: movl %eax, 0x4(%esp)
Target 0: (Fox) stopped.
(lldb) si
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = instruction step into
frame #0: 0x00002724 Fox`-[FoxAppDelegate validateSerial:forName:] + 3
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x2724 <+3>: subl $0x18, %esp
0x2727 <+6>: movl 0x4008, %eax
0x272c <+11>: movl %eax, 0x4(%esp)
0x2730 <+15>: movl 0x14(%ebp), %eax
Target 0: (Fox) stopped.
(lldb) si
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = instruction step into
frame #0: 0x00002727 Fox`-[FoxAppDelegate validateSerial:forName:] + 6
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x2727 <+6>: movl 0x4008, %eax
0x272c <+11>: movl %eax, 0x4(%esp)
0x2730 <+15>: movl 0x14(%ebp), %eax
0x2733 <+18>: movl %eax, (%esp)
Target 0: (Fox) stopped.
(lldb) po $eax
10017
(lldb) si
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = instruction step into
frame #0: 0x0000272c Fox`-[FoxAppDelegate validateSerial:forName:] + 11
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x272c <+11>: movl %eax, 0x4(%esp)
0x2730 <+15>: movl 0x14(%ebp), %eax
0x2733 <+18>: movl %eax, (%esp)
0x2736 <+21>: calll 0x2bda ; symbol stub for: objc_msgSend
Target 0: (Fox) stopped.
(lldb) po $eax
11782
(lldb) si
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = instruction step into
frame #0: 0x00002730 Fox`-[FoxAppDelegate validateSerial:forName:] + 15
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x2730 <+15>: movl 0x14(%ebp), %eax
0x2733 <+18>: movl %eax, (%esp)
0x2736 <+21>: calll 0x2bda ; symbol stub for: objc_msgSend
0x273b <+26>: movl 0x4004, %edx
Target 0: (Fox) stopped.
(lldb) po $eax
11782
(lldb) si
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = instruction step into
frame #0: 0x00002733 Fox`-[FoxAppDelegate validateSerial:forName:] + 18
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x2733 <+18>: movl %eax, (%esp)
0x2736 <+21>: calll 0x2bda ; symbol stub for: objc_msgSend
0x273b <+26>: movl 0x4004, %edx
0x2741 <+32>: movl %edx, 0x4(%esp)
Target 0: (Fox) stopped.
(lldb) po $eax #這一步得到license文件用户名信息
hawke
(lldb) dis
Fox`-[FoxAppDelegate validateSerial:forName:]:
0x2721 <+0>: pushl %ebp
0x2722 <+1>: movl %esp, %ebp
0x2724 <+3>: subl $0x18, %esp
0x2727 <+6>: movl 0x4008, %eax
0x272c <+11>: movl %eax, 0x4(%esp)
0x2730 <+15>: movl 0x14(%ebp), %eax
-> 0x2733 <+18>: movl %eax, (%esp)
0x2736 <+21>: calll 0x2bda ; symbol stub for: objc_msgSend
0x273b <+26>: movl 0x4004, %edx
0x2741 <+32>: movl %edx, 0x4(%esp)
0x2745 <+36>: movl %eax, (%esp)
0x2748 <+39>: calll 0x2bda ; symbol stub for: objc_msgSend
0x274d <+44>: movl 0x10(%ebp), %edx
0x2750 <+47>: movl %edx, 0x8(%esp)
0x2754 <+51>: movl 0x4000, %edx
0x275a <+57>: movl %edx, 0x4(%esp)
0x275e <+61>: movl %eax, (%esp)
0x2761 <+64>: calll 0x2bda ; symbol stub for: objc_msgSend
0x2766 <+69>: testb %al, %al
0x2768 <+71>: setne %al
0x276b <+74>: leave
0x276c <+75>: retl
(lldb) b *0x2733 #在0x2733位置設置斷點
Breakpoint 2: where = Fox`-[FoxAppDelegate validateSerial:forName:] + 18, address = 0x00002733
(lldb) si
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = instruction step into
frame #0: 0x00002736 Fox`-[FoxAppDelegate validateSerial:forName:] + 21
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x2736 <+21>: calll 0x2bda ; symbol stub for: objc_msgSend
0x273b <+26>: movl 0x4004, %edx
0x2741 <+32>: movl %edx, 0x4(%esp)
0x2745 <+36>: movl %eax, (%esp)
Target 0: (Fox) stopped.
(lldb) ni #遇到call函數調用使用單步步過跟蹤
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = instruction step over
frame #0: 0x0000273b Fox`-[FoxAppDelegate validateSerial:forName:] + 26
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x273b <+26>: movl 0x4004, %edx
0x2741 <+32>: movl %edx, 0x4(%esp)
0x2745 <+36>: movl %eax, (%esp)
0x2748 <+39>: calll 0x2bda ; symbol stub for: objc_msgSend
Target 0: (Fox) stopped.
(lldb) dis
Fox`-[FoxAppDelegate validateSerial:forName:]:
0x2721 <+0>: pushl %ebp
0x2722 <+1>: movl %esp, %ebp
0x2724 <+3>: subl $0x18, %esp
0x2727 <+6>: movl 0x4008, %eax
0x272c <+11>: movl %eax, 0x4(%esp)
0x2730 <+15>: movl 0x14(%ebp), %eax
0x2733 <+18>: movl %eax, (%esp)
0x2736 <+21>: calll 0x2bda ; symbol stub for: objc_msgSend
-> 0x273b <+26>: movl 0x4004, %edx
0x2741 <+32>: movl %edx, 0x4(%esp)
0x2745 <+36>: movl %eax, (%esp)
0x2748 <+39>: calll 0x2bda ; symbol stub for: objc_msgSend
0x274d <+44>: movl 0x10(%ebp), %edx
0x2750 <+47>: movl %edx, 0x8(%esp)
0x2754 <+51>: movl 0x4000, %edx
0x275a <+57>: movl %edx, 0x4(%esp)
0x275e <+61>: movl %eax, (%esp)
0x2761 <+64>: calll 0x2bda ; symbol stub for: objc_msgSend
0x2766 <+69>: testb %al, %al
0x2768 <+71>: setne %al
0x276b <+74>: leave
0x276c <+75>: retl
(lldb) po $eax #用户名經過sha1HexHash函數加密得到hash值
587377f4518ef068e17b393074c0a2183cd055d2
(lldb) b * 0x273b
Breakpoint 3: no locations (pending).
WARNING: Unable to resolve breakpoint to any actual locations.
(lldb) b *0x273b
Breakpoint 4: where = Fox`-[FoxAppDelegate validateSerial:forName:] + 26, address = 0x0000273b
(lldb) si
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = instruction step into
frame #0: 0x00002741 Fox`-[FoxAppDelegate validateSerial:forName:] + 32
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x2741 <+32>: movl %edx, 0x4(%esp)
0x2745 <+36>: movl %eax, (%esp)
0x2748 <+39>: calll 0x2bda ; symbol stub for: objc_msgSend
0x274d <+44>: movl 0x10(%ebp), %edx
Target 0: (Fox) stopped.
(lldb) po $edx
2437303558
(lldb) si
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = instruction step into
frame #0: 0x00002745 Fox`-[FoxAppDelegate validateSerial:forName:] + 36
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x2745 <+36>: movl %eax, (%esp)
0x2748 <+39>: calll 0x2bda ; symbol stub for: objc_msgSend
0x274d <+44>: movl 0x10(%ebp), %edx
0x2750 <+47>: movl %edx, 0x8(%esp)
Target 0: (Fox) stopped.
(lldb) po $edx
2437303558
(lldb) po $eax
587377f4518ef068e17b393074c0a2183cd055d2
(lldb) po $eax
587377f4518ef068e17b393074c0a2183cd055d2
(lldb) po $edx
2437303558
(lldb) si
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = instruction step into
frame #0: 0x00002748 Fox`-[FoxAppDelegate validateSerial:forName:] + 39
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x2748 <+39>: calll 0x2bda ; symbol stub for: objc_msgSend
0x274d <+44>: movl 0x10(%ebp), %edx
0x2750 <+47>: movl %edx, 0x8(%esp)
0x2754 <+51>: movl 0x4000, %edx
Target 0: (Fox) stopped.
(lldb) po $edx
2437303558
(lldb) po $eax
587377f4518ef068e17b393074c0a2183cd055d2
(lldb) ni
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = instruction step over
frame #0: 0x0000274d Fox`-[FoxAppDelegate validateSerial:forName:] + 44
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x274d <+44>: movl 0x10(%ebp), %edx
0x2750 <+47>: movl %edx, 0x8(%esp)
0x2754 <+51>: movl 0x4000, %edx
0x275a <+57>: movl %edx, 0x4(%esp)
Target 0: (Fox) stopped.
(lldb) po $eax #得到的hash值轉換成大寫
587377F4518EF068E17B393074C0A2183CD055D2
(lldb) dis
Fox`-[FoxAppDelegate validateSerial:forName:]:
0x2721 <+0>: pushl %ebp
0x2722 <+1>: movl %esp, %ebp
0x2724 <+3>: subl $0x18, %esp
0x2727 <+6>: movl 0x4008, %eax
0x272c <+11>: movl %eax, 0x4(%esp)
0x2730 <+15>: movl 0x14(%ebp), %eax
0x2733 <+18>: movl %eax, (%esp)
0x2736 <+21>: calll 0x2bda ; symbol stub for: objc_msgSend
0x273b <+26>: movl 0x4004, %edx
0x2741 <+32>: movl %edx, 0x4(%esp)
0x2745 <+36>: movl %eax, (%esp)
0x2748 <+39>: calll 0x2bda ; symbol stub for: objc_msgSend
-> 0x274d <+44>: movl 0x10(%ebp), %edx
0x2750 <+47>: movl %edx, 0x8(%esp)
0x2754 <+51>: movl 0x4000, %edx
0x275a <+57>: movl %edx, 0x4(%esp)
0x275e <+61>: movl %eax, (%esp)
0x2761 <+64>: calll 0x2bda ; symbol stub for: objc_msgSend
0x2766 <+69>: testb %al, %al
0x2768 <+71>: setne %al
0x276b <+74>: leave
0x276c <+75>: retl
(lldb) b *0x274d
Breakpoint 5: where = Fox`-[FoxAppDelegate validateSerial:forName:] + 44, address = 0x0000274d
(lldb) po $edx
<nil>
(lldb) si
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = instruction step into
frame #0: 0x00002750 Fox`-[FoxAppDelegate validateSerial:forName:] + 47
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x2750 <+47>: movl %edx, 0x8(%esp)
0x2754 <+51>: movl 0x4000, %edx
0x275a <+57>: movl %edx, 0x4(%esp)
0x275e <+61>: movl %eax, (%esp)
Target 0: (Fox) stopped.
(lldb) po $edx #獲取license文件中序列號的值
XXXX
(lldb) b *0x2750
Breakpoint 6: where = Fox`-[FoxAppDelegate validateSerial:forName:] + 47, address = 0x00002750
(lldb) br list
Current breakpoints:
1: name = '-[FoxAppDelegate validateSerial:forName:]', locations = 1, resolved = 1, hit count = 3
1.1: where = Fox`-[FoxAppDelegate validateSerial:forName:], address = 0x00002721, resolved, hit count = 3
2: address = Fox[0x00002733], locations = 1, resolved = 1, hit count = 0
2.1: where = Fox`-[FoxAppDelegate validateSerial:forName:] + 18, address = 0x00002733, resolved, hit count = 0
3: name = '* 0x273b', locations = 0 (pending)
4: address = Fox[0x0000273b], locations = 1, resolved = 1, hit count = 0
4.1: where = Fox`-[FoxAppDelegate validateSerial:forName:] + 26, address = 0x0000273b, resolved, hit count = 0
5: address = Fox[0x0000274d], locations = 1, resolved = 1, hit count = 0
5.1: where = Fox`-[FoxAppDelegate validateSerial:forName:] + 44, address = 0x0000274d, resolved, hit count = 0
6: address = Fox[0x00002750], locations = 1, resolved = 1, hit count = 0
6.1: where = Fox`-[FoxAppDelegate validateSerial:forName:] + 47, address = 0x00002750, resolved, hit count = 0
經過一步步分析，我添加了上述5個斷點，方便重新運行分析。
繼續分析..........
(lldb) dis
Fox`-[FoxAppDelegate validateSerial:forName:]:
0x2721 <+0>: pushl %ebp
0x2722 <+1>: movl %esp, %ebp
0x2724 <+3>: subl $0x18, %esp
0x2727 <+6>: movl 0x4008, %eax
0x272c <+11>: movl %eax, 0x4(%esp)
0x2730 <+15>: movl 0x14(%ebp), %eax
0x2733 <+18>: movl %eax, (%esp)
0x2736 <+21>: calll 0x2bda ; symbol stub for: objc_msgSend
0x273b <+26>: movl 0x4004, %edx
0x2741 <+32>: movl %edx, 0x4(%esp)
0x2745 <+36>: movl %eax, (%esp)
0x2748 <+39>: calll 0x2bda ; symbol stub for: objc_msgSend
0x274d <+44>: movl 0x10(%ebp), %edx
-> 0x2750 <+47>: movl %edx, 0x8(%esp)
0x2754 <+51>: movl 0x4000, %edx
0x275a <+57>: movl %edx, 0x4(%esp)
0x275e <+61>: movl %eax, (%esp)
0x2761 <+64>: calll 0x2bda ; symbol stub for: objc_msgSend
0x2766 <+69>: testb %al, %al
0x2768 <+71>: setne %al
0x276b <+74>: leave
0x276c <+75>: retl
(lldb) b *0x2766 #在比較license序列號函數之後設置斷點
Breakpoint 7: where = Fox`-[FoxAppDelegate validateSerial:forName:] + 69, address = 0x00002766
(lldb) c
Process 995 resuming
Process 995 stopped
* thread #1, queue = 'com.apple.main-thread', stop reason = breakpoint 7.1
frame #0: 0x00002766 Fox`-[FoxAppDelegate validateSerial:forName:] + 69
Fox`-[FoxAppDelegate validateSerial:forName:]:
-> 0x2766 <+69>: testb %al, %al
0x2768 <+71>: setne %al
0x276b <+74>: leave
0x276c <+75>: retl
Target 0: (Fox) stopped.
(lldb) register read al #讀取寄存器al的值
al = 0x00
(lldb) register write al 1 #手動將寄存器al的值置為1
(lldb) c
license驗證成功，使用lldb動態調試加手動爆破成功，如圖所示：
第三部分 使用Radare2動態調試
使用r2命令調試程序，-d參數進入調試模式。
-A run 'aaa' command to analyze all referenced code
-d debug the executable 'file' or running process 'pid'
zyjsupers-MacBook-Air:~ zyjsuper$ r2 -Ad ~/Desktop/3-Fox/Fox.app/Contents/MacOS/Fox
= attach 2181 2181
bin.baddr 0x00001000
Using 0x1000
asm.bits 32
[x] Analyze all flags starting with sym. and entry0 (aa)
[Warning: Invalid range. Use different search.in=? or anal.in=dbg.maps.x
Warning: Invalid range. Use different search.in=? or anal.in=dbg.maps.x
[x] Analyze function calls (aac)
[x] Analyze len bytes of instructions for references (aar)
[x] Check for objc references
[x] Check for vtables
[TOFIX: aaft can't run in debugger mode.ions (aaft)
[x] Type matching analysis for all functions (aaft)
[x] Use -AA or aaaa to perform additional experimental analysis.
-- ♥ --
[0x0001101c]> afl #顯示函數列表
0x00002698 3 63 entry0
0x000026fa 1 9 main
0x00002bd4 1 6 sym.imp.exit
0x00004068 99 4716 -> 4803 sym..objc_class_name_FoxAppDelegate
0x00003104 6 3924 sym._NXArgc
0x00003100 6 3928 sym._NXArgv
0x000030f8 6 3936 sym.___progname
0x00001000 1 1 map.Fox.r_x
0x000026d8 1 20 sym.dyld_stub_binding_helper
0x000026ec 1 14 sym.__dyld_func_lookup
0x00002703 1 5 sym.public_int_FoxAppDelegate::applicationDidFinishLaunching_int
0x00002708 1 11 sym.public_int_FoxAppDelegate::window
0x00002713 1 14 sym.public_int_FoxAppDelegate::setWindow_int
0x00002721 1 76 sym.public_int_FoxAppDelegate::validateSerial_int__int
0x00002bda 1 6 sym.imp.objc_msgSend
0x0000276d 1 47 sym.public_int_FoxAppDelegate::awakeFromNib
0x0000279c 4 575 sym.public_int_FoxAppDelegate::openLicenseFile_int
0x000029db 1 60 sym.public_int_NSString_CocoaCryptoHashing_::sha1HexHash
0x00002a17 1 60 sym.public_int_NSString_CocoaCryptoHashing_::sha1Hash
0x00002a53 3 143 sym.public_int_NSData_CocoaCryptoHashing_::sha1Hash
0x00002bb6 1 6 sym.imp.CC_SHA1
0x00002bce 1 6 sym.imp.__stack_chk_fail
0x00002ae2 5 211 sym.public_int_NSData_CocoaCryptoHashing_::sha1HexHash
0x00002be0 1 6 sym.imp.sprintf
0x00002be6 3 36 sym._stub_helpers
0x00002bbc 1 6 sym.imp.NSApplicationMain
0x00002bc2 1 6 sym.imp.NSHomeDirectory
0x00002bc8 1 6 sym.imp.NSRunAlertPanel
[0x0001101c]> db sym.public_int_FoxAppDelegate::validateSerial_int__int #在函數起始位置設置斷點。
[0x0001101c]> dc #運行程序
程序運行起來，打開license文件驗證..........
.....................
/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleFSCompression/AppleFSCompression-96.200.3/Libraries/CompressData/CompressData.c:353: Error: Unknown compression scheme encountered for file '/System/Library/PrivateFrameworks/FinderKit.framework/Resources/Base.lproj/ColumnPreview.nib'
hit breakpoint at: 2721
[0x00002721]> pdf #顯示函數內容
;-- eax:
;-- eip:
┌ (fcn) sym.public_int_FoxAppDelegate::validateSerial_int__int 76
│ sym.public_int_FoxAppDelegate::validateSerial_int__int (int32_t arg_10h, int32_t arg_14h);
│ ; arg int32_t arg_10h @ ebp+0x10
│ ; arg int32_t arg_14h @ ebp+0x14
│ ; var int32_t var_4h @ esp+0x4
│ ; var int32_t var_8h @ esp+0x8
│ 0x00002721 b 55 push ebp
│ 0x00002722 89e5 mov ebp, esp
│ 0x00002724 83ec18 sub esp, 0x18
│ 0x00002727 a108400000 mov eax, dword str.sha1HexHash ; [0x4008:4]=0x2e06 str.sha1HexHash
│ ; DATA XREF from segment.LINKEDIT (+0x9599)
│ 0x0000272c 89442404 mov dword [var_4h], eax
│ 0x00002730 8b4514 mov eax, dword [arg_14h] ; [0x14:4]=-1 ; 20
│ 0x00002733 890424 mov dword [esp], eax
│ 0x00002736 e89f040000 call sym.imp.objc_msgSend ; void *objc_msgSend(void *instance, char *selector)
│ 0x0000273b 8b1504400000 mov edx, dword [0x4004] ; [0x4004:4]=0x91464d06
│ 0x00002741 89542404 mov dword [var_4h], edx
│ 0x00002745 890424 mov dword [esp], eax
│ 0x00002748 e88d040000 call sym.imp.objc_msgSend ; void *objc_msgSend(void *instance, char *selector)
│ 0x0000274d 8b5510 mov edx, dword [arg_10h] ; [0x10:4]=-1 ; 16
│ 0x00002750 89542408 mov dword [var_8h], edx
│ 0x00002754 8b1500400000 mov edx, dword map.Fox.rw ; [0x4000:4]=0x9018aad3
│ 0x0000275a 89542404 mov dword [var_4h], edx
│ 0x0000275e 890424 mov dword [esp], eax
│ 0x00002761 e874040000 call sym.imp.objc_msgSend ; void *objc_msgSend(void *instance, char *selector)
│ 0x00002766 84c0 test al, al
│ 0x00002768 0f95c0 setne al
│ 0x0000276b c9 leave
└ 0x0000276c c3 ret
[0x00002721]> db 0x00002733 #在合適位置設置以下幾個斷點
[0x00002721]> db 0x0000273b
[0x00002721]> db 0x0000274d
[0x00002721]> db 0x00002750
[0x00002721]> db 0x00002766
[0x00002721]> db #顯示斷點列表
0x00002721 - 0x00002722 1 --x sw break enabled cmd="" cnotallow="" name="sym.public_int_FoxAppDelegate::validateSerial_int__int" module="/Users/zyjsuper/Desktop/3-Fox/Fox.app/Contents/MacOS/Fox"
0x00002733 - 0x00002734 1 --x sw break enabled cmd="" cnotallow="" name="0x00002733" module="/Users/zyjsuper/Desktop/3-Fox/Fox.app/Contents/MacOS/Fox"
0x0000273b - 0x0000273c 1 --x sw break enabled cmd="" cnotallow="" name="0x0000273b" module="/Users/zyjsuper/Desktop/3-Fox/Fox.app/Contents/MacOS/Fox"
0x0000274d - 0x0000274e 1 --x sw break enabled cmd="" cnotallow="" name="0x0000274d" module="/Users/zyjsuper/Desktop/3-Fox/Fox.app/Contents/MacOS/Fox"
0x00002750 - 0x00002751 1 --x sw break enabled cmd="" cnotallow="" name="0x00002750" module="/Users/zyjsuper/Desktop/3-Fox/Fox.app/Contents/MacOS/Fox"
0x00002766 - 0x00002767 1 --x sw break enabled cmd="" cnotallow="" name="0x00002766" module="/Users/zyjsuper/Desktop/3-Fox/Fox.app/Contents/MacOS/Fox"
[0x00002721]> dc
hit breakpoint at: 2733
[0x00002721]> pf xxS @eax #顯示eax寄存器的內存數據
0x08d7b2c0 = 0xa83f7870
0x08d7b2c4 = 0x0100078c
0x08d7b2c8 = 0x08d7b2c8 -> 0x77616805
[0x00002721]> psz @ 0x08d7b2c8 #顯示此參數的值，即用户名
hawke
[0x00002721]> dc
hit breakpoint at: 273b
[0x00002721]> pf xxS @ eax
0x00209f90 = 0xa83f7870
0x00209f94 = 0x0100078c
0x00209f98 = 0x00209f98 -> 0x37383528
[0x00002721]> psz @ 0x00209f98 #用户名經過sha1HexHash 函數加密後的字符串
(587377f4518ef068e17b393074c0a2183cd055d2
[0x00002721]> dc
hit breakpoint at: 274d
[0x00002721]> pf xxS @eax
0x006569a0 = 0xa83f7870
0x006569a4 = 0x010007ad
0x006569a8 = 0x006569a8 -> 0x006cd3e0
[0x00002721]> psz @ 0x006cd3e0
(587377F4518EF068E17B393074C0A2183CD055D2 #轉換成大寫字母
[0x00002721]> dc
hit breakpoint at: 2750
[0x00002721]> pf xxS @ edx
0x08da1180 = 0xa83f7870
0x08da1184 = 0x0100078c
0x08da1188 = 0x08da1188 -> 0x58585804
[0x00002721]> psz @ 0x08da1188 #顯示license文件中的序列號
XXXX
[0x00002721]> dc
hit breakpoint at: 2766
[0x00002766]> dr al
0x00000000
[0x00002766]> dr al=1 #手動將寄存器al的值改成1
0x00000000 ->0x00000001
[0x00002766]> dr al
0x00000001
[0x00002766]> dc程序驗證license通過，至此，使用radare2動態調試分析爆破成功。
第四部分 分析整理算法
算法比較簡單，此處引用加密與解密第四版中的介紹如下：
序列號保護的本質就是驗證用户名和序列號之間的映射關係，越複雜的映射關係越難破解，根據映射關係的不同，程序檢測序列號有以下幾種方式：
序列號 = F (用户名)
如果把這個過程看作加密解密並進行密文對比的過程，那麼用户名就是明文，而序列號則是密文，F函數就是加密算法了。這種保護方法雖然簡單，但極為不安全，因為在程序運行的某一時刻，內存中一定會出現正確的序列號，也就是加密函數結束後。只要找到正確的時間點，甚至完全不用關心算法就可以完成驗證。
用户名 = F (序列號)
這裏是把序列號作為明文，用户名作為密文了，這種方式通常需要F函數是一種對稱加密算法的解密函數，而官方生成序列號時則使用加密函數對用户名進行加密得到的，這樣就不會出現內存中有正確序列號的情況。這種保護方式的關鍵就是解密算法了，一旦得到解密算法就有機會逆向出加密算法，這樣也就完成了驗證。
F1 (用户名) = F2 (序列號)
這種方式是上一種的擴展，它相當於多套了幾層加密而已。驗證方式是：用户名 = F( F2(序列號) )
特殊值 = F (用户名, 序列號)
這種保護方式的數學原理就比較複雜了，但保護效果相比前幾種有了很大提升。不過在設計上有難度，並且可能出現用户名與序列號映射不唯一的情況。
此Crackme使用的算法邏輯為： 序列號 = F (用户名)
即Serial(序列號)=uppercaseString(sha1HexHash(name))，將用户名經過sha1算法加密得到的hash值，再將hash值中的字母轉化成大寫，就得到了用户名對應的序列號。得到了算法邏輯，我們就可以按照此算法去編寫註冊機。
第五部分 使用Python編寫keygen
#!/usr/bin/env python2
#-*-coding:utf-8-*-
'''
@version: python2.7
@author: ‘zyjsuper‘
@license: Apache Licence
@software: PyCharm
@file: Crackme3.py
@time: $2019-08-06 18:27
'''
import string
import random
from hashlib import sha1
ch = string.ascii_letters
#生成一個5到8位長度的隨機用户名
def gen_name():
result = ""
for i in range(random.randint(5,8)):
result = result+random.choice(ch)
return result
name = gen_name()
#將用户名使用sha1加密
psw=sha1()
psw.update(name.encode('utf8'))
#將加密後的hash值轉化大寫字母
serial=string.upper(psw.hexdigest())
#生成對應的license文件內容
license = ('''
<?xml versinotallow="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist versinotallow="1.0">
<dict>
<key>regName</key>
<string>%s</string>
<key>regNumber</key>
<string>%s</string>
</dict>
</plist>
''' %(name,serial))
#將license寫入文件
with open("reg.foxlicense","w") as file:
file.write(license)
print '*'*55
print "Valid license file has been generated successfully!"
print '*'*55第六部分 使用Swift編寫keygen
zyjsupers-MacBook-Air:CrackMe3 zyjsuper$ cd ~/Desktop/3-Fox/
zyjsupers-MacBook-Air:3-Fox zyjsuper$ mkdir CrackMe3
zyjsupers-MacBook-Air:3-Fox zyjsuper$ cd CrackMe3
zyjsupers-MacBook-Air:CrackMe3 zyjsuper$ swift package init --type executable
Creating executable package: CrackMe3
Creating Package.swift
Creating README.md
Creating .gitignore
Creating Sources/
Creating Sources/CrackMe3/main.swift
Creating Tests/
Creating Tests/LinuxMain.swift
Creating Tests/CrackMe3Tests/
Creating Tests/CrackMe3Tests/CrackMe3Tests.swift
Creating Tests/CrackMe3Tests/XCTestManifests.swift
zyjsupers-MacBook-Air:CrackMe3 zyjsuper$ swift package generate-xcodeproj
generated: ./CrackMe3.xcodeproj
zyjsupers-MacBook-Air:CrackMe3 zyjsuper$ xed .因為需要用到sha1加密函數，我們需要導入一個包cryptoswift，官方網址為：
https://cryptoswift.io/
關於此包管理的介紹如下：
Swift Package Manager
You can use Swift Package Manager and specify dependency in Package.swift by adding this:
dependencies: [
.package(url: "https://github.com/krzyzanowskim/CryptoSwift.git", .upToNextMinor(from: "1.0.0"))]將Package.swift文件內容改成如下：
// swift-tools-version:5.0
// The swift-tools-version declares the minimum version of Swift required to build this package.
import PackageDescription
let package = Package(
name: "CrackMe3",
dependencies: [
// Dependencies declare other packages that this package depends on.
.package(url: "https://github.com/krzyzanowskim/CryptoSwift.git", .upToNextMinor(from: "1.0.0")) //添加此行
],
targets: [
// Targets are the basic building blocks of a package. A target can define a module or a test suite.
// Targets can depend on other targets in this package, and on products in packages which this package depends on.
.target(
name: "CrackMe3",
dependencies: ["CryptoSwift"]),
.testTarget(
name: "CrackMe3Tests",
dependencies: ["CrackMe3"]),
]
)運行一次編譯操作
zyjsupers-MacBook-Air:CrackMe3 zyjsuper$ swift run
Fetching https://github.com/krzyzanowskim/CryptoSwift.git //需要下載CryptoSwift包
[2/2] Linking /Users/zyjsuper/Desktop/3-Fox/CrackMe3/.build/x86_64-apple-macosx/debug/CrackMe3
Hello, world!
將main.swift文件內容改成如下：
import CryptoSwift
let chars = "ABCDEFGHIJKLMNOPQRSTUVWXYZ" +
"abcdefghijklmnopqrstuvwxyz"
let name = (1...6)
_ in chars.randomElement()!.description }
.reduce("", +)
let serial = name
.sha1()
.uppercased()
let xmlstring = """
<?xml versinotallow="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist versinotallow="1.0">
<dict>
<key>regName</key>
<string>\(name)</string>
<key>regNumber</key>
<string>\(serial)</string>
</dict>
</plist>
"""
print(xmlstring)
zyjsupers-MacBook-Air:CrackMe3 zyjsuper$ swift run > ~/Desktop/Reg.Foxlicense
生成註冊license文件，驗證通過。
