概述
Java 支持好幾種文件讀取方法，本文要説的是小眾的 mmap(MappedByteBuffer) 以及它與 Safepoint、JVM 服務卡頓之間的關係。本文嘗試用 eBPF 等分析方法，去證明具體環境下，問題的存在與否。
審誤和發佈本文時，我才是二陽後活過來數小時而已，寫了數週的文章實在不想再拖延發布了。如文章有錯漏，還請多多包涵和指正。
引
Java 服務卡頓，是 Java 世界永恆的話題之王。想到 Java 卡頓，大部分人的第一反應是以下關鍵詞：
- GC
- Safepoint / Stop the world(STW)
而説訪問 mmap(MappedByteBuffer) 導致 Java 卡頓可能是個小眾話題。但如果你瞭解了一些基於 Java 的重 IO 的開源項目後，就會發現，這其實不是個小眾話題。如曾經大熱的 NoSQL 數據庫 Cassandra 默認就是重度使用 mmap 去讀取數據文件和寫 commit log 的。
基本原理
JVM 寫 GC 日誌時機分析
Safepoint

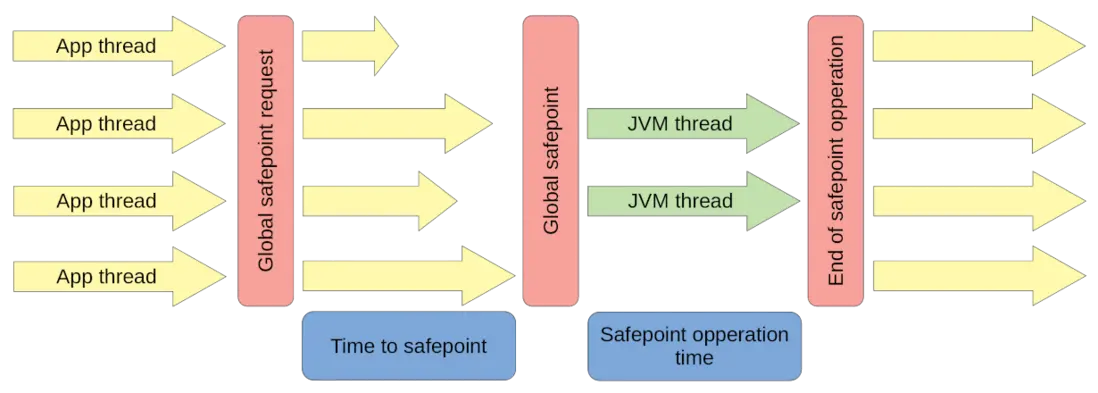

[From https://krzysztofslusarski.github.io/2022/12/12/async-manual....]
上圖大概説明了 safepoint 的主要流程。有興趣同學可以看看上面鏈接，或搜索一下，網上很多好文章説明過了。我就不搬門弄斧了。
一點需要注意的是，safepoint STOP THE WORLD(STW) 的使用者不只有 GC。還有其它。
這裏只簡單説明一下（我不是 JVM 專家，所以請謹慎使用以下觀點）：
-
Global safepoint request
1.1 有一個線程提出了進入 safepoint 的請求，其中帶上
safepoint operation參數，參數其實是 STOP THE WORLD(STW) 後要執行的 Callback 操作 。可能是分配內存不足，觸發 GC。也可能是其它原因。1.2 一個叫 “
VM Thread” 的線程在收到 safepoint request 後，修改一個 JVM 全局的safepoint flag為 true（這裏只為簡單説明，如果你是行家，那麼這個 flag 其實是操作系統的內存缺頁標識） 。1.3 然後這個 “VM Thread” 就開始等待其它應用線程（App thread） 到達（進入） safepoint 。
1.4 其它應用線程（App thread）其實會高頻檢查這個 safepoint flag ，當發現為 true 時，就到達（進入） safepoint 狀態。
源碼鏈接 SafepointSynchronize::begin()
本文主要關注這裏的 “等待其它應用線程（App thread） 到達（進入） safepoint”。
-
Global safepoint
當 “
VM Thread” 發現所有 App thread 都到達 safepoint （真實的 STW 的開始） 。就開始執行safepoint operation。GC 操作是safepoint operation其中一種可能類型。源碼鏈接 RuntimeService::record_safepoint_synchronized()
-
End of safepoint operation
safepoint operation執行完畢， “VM Thread” 結束 STW 。源碼鏈接 SafepointSynchronize::end()
症狀
假設已經加入 java 命令參數：
-XX:+PrintGCApplicationStoppedTime
-XX:+PrintGCDetails
-XX:+PrintSafepointStatistics
-XX:PrintSafepointStatisticsCount=1
-XX:+SafepointTimeout
-XX:SafepointTimeoutDelay=<ms before timeout log is printed>GC log：
# 大部分時間，花在 Global safepoint request 與 Global safepoint 這間的“等待其它應用線程（App thread） 到達（進入） safepoint”
2023-09-07T13:19:50.029+0000: 58103.440: Total time for which application threads were stopped: 3.4971808 seconds, Stopping threads took: 3.3050644 seconds或 safepoint log:
[safepoint ] Application time: 0.1950250 seconds
[safepoint ] Entering safepoint region: RevokeBias
[safepoint ] Leaving safepoint region
[safepoint ] Total time for which application threads were stopped: 0.0003424 seconds, Stopping threads took: 0.0000491 seconds
///////
# SafepointSynchronize::begin: Timeout detected:
# SafepointSynchronize::begin: Timed out while spinning to reach a
# safepoint.
# SafepointSynchronize::begin: Threads which did not reach the
# safepoint:
# "SharedPool-Worker-5" #468 daemon prio=5 os_prio=0
# tid=0x00007f8785bb1f30 nid=0x4e14 runnable [0x0000000000000000]
java.lang.Thread.State: RUNNABLE
>> >
# SafepointSynchronize::begin: (End of list)
vmop [threads: total initially_running
wait_to_block] [time: spin block sync cleanup vmop]
page_trap_count
58099.941: G1IncCollectionPause [ 447 1
1 ] [ 3304 0 3305 1 190 ] 1
>>這個問題已經在 Cassandra 界有了個朵：
- JVM safepoints, mmap, and slow disks 或這裏
- Use of MappedByteBuffer could cause long STW due to TTSP (time to safepoint)
- Long unexplained time-to-safepoint (TTSP) in the JVM
那麼問題來了，怎麼證明你的環境的 java 應用存在或不存在這個問題？
診斷
環境準備
IO 卡頓的模擬方法見 [Linux 如何模擬 IO 卡頓] 一節。
生成測試文件：
sudo dd if=/dev/urandom of=/mnt/dm1/mapped.file bs=1G count=1
cp /mnt/dm1/mapped.file /tmp/mapped.file測試的目標 java 程序
// TestMMap.java
import java.util.*;
import java.io.IOException;
import java.io.RandomAccessFile;
import java.nio.MappedByteBuffer;
import java.nio.channels.FileChannel;
import java.util.concurrent.ThreadLocalRandom;
public class TestMMap {
public static void main(String[] arg) throws Exception {
TestGCLog l = new TestGCLog();
l.start();
TestMMap t = new TestMMap();
t.test(arg[0]);
}
void test(String mapfile) throws Exception {
long startTime = System.currentTimeMillis();
RandomAccessFile file = new RandomAccessFile(mapfile, "r");
FileChannel channel = file.getChannel();
// Read file into mapped buffer
MappedByteBuffer mbb =
channel.map(FileChannel.MapMode.READ_ONLY,
0, // position
channel.size());
long lastprint = System.currentTimeMillis();
while(true) {
// for (int i = 0; i < channel.size(); i++) {
long now = System.currentTimeMillis();
// System.out.print((char) mbb.get());
long p = ThreadLocalRandom.current().nextLong(0, channel.size() - 1);
mbb.position((int)p);
mbb.get();
if( System.currentTimeMillis() - now > 1 * 1000 ) {
System.out.println( new Date() + " - Read MMap: read slow: " + mbb.position() + "@" + mbb.limit() + " ," + (System.currentTimeMillis() - now) + "ms" );
}
else if( now - lastprint > 5 * 1000 ) {
System.out.println( new Date() + " - Read MMap:" + mbb.position() + "/" + mbb.limit() );
lastprint = now;
}
Thread.sleep(10);
// }
// mbb.position(0);
if(false)
break;
}
channel.close();
file.close();
System.out.println("Total read and print time: " + (System.currentTimeMillis() - startTime));
}
static class TestGCLog extends Thread {
List objList = new ArrayList();
byte[] m = new byte[100*1024];
public TestGCLog() {
super("TestGCLog");
}
@Override
public void run() {
try {
test();
} catch (Exception e) {
e.printStackTrace();
}
}
void test() throws Exception {
long lastprint = System.currentTimeMillis();
while(true) {
objList.clear();
long start = System.currentTimeMillis();
TestGCLog newObj = new TestGCLog();
long end = System.currentTimeMillis();
if( end - start > 10 ) {
System.out.println( new Date() + " - TestGCLog: slow new object: " + (end - start) + "ms" );
}
objList.add( newObj );
Thread.sleep(5);
long now = System.currentTimeMillis();
if( now - lastprint > 5 * 1000 ) {
System.out.println( new Date() + " - TestGCLog" );
lastprint = now;
}
}
}
}
}程序的主要邏輯是在 TestGCLog 線程中觸發 GC 。在 main 線程中隨機訪問 mmap 映射到內存中的文件，以觸發 page fault 和 IO 。
bpftrace 程序
#!/usr/local/bin/bpftrace
// trace-safepoint-mmap2.bt
// 程序假設環境中只有一個 java 進程
BEGIN
{}
uprobe:/usr/lib/jvm/java-17-openjdk-amd64/lib/server/libjvm.so:*SafepointSynchronize*begin*
{
// printf("java elf main. PID=%d", pid);
@java_pid[pid] = pid;
}
uprobe:/usr/lib/jvm/java-17-openjdk-amd64/lib/server/libjvm.so:*SafepointSynchronize*begin*
/@java_pid[pid]/
{
@sp_begin[pid, tid, comm, ustack] = count();
@vm_thread_tid[tid] = tid;
@vm_thread_waiting_sp_sync[tid] = tid;
@vm_thread_in_STW[tid] = tid;
@STWing[pid] = pid;
printf("%d %-6d %-16s SafepointSynchronize::begin \n", elapsed / 1e6, tid, comm);
}
uprobe:/usr/lib/jvm/java-17-openjdk-amd64/lib/server/libjvm.so:*RuntimeService*record_safepoint_synchronized*
/@java_pid[pid]/
{
@sp_synchronized[tid, comm, ustack] = count();
delete (@vm_thread_waiting_sp_sync[tid]);
delete (@STWing[pid]);
printf("%d %-6d %-16s RuntimeService::record_safepoint_synchronized\n", elapsed / 1e6, tid, comm);
}
uretprobe:/usr/lib/jvm/java-17-openjdk-amd64/lib/server/libjvm.so:*SafepointSynchronize*end*
/@java_pid[pid]/
{
delete (@vm_thread_in_STW[tid]);
printf("%d %-6d %-16s SafepointSynchronize::end\n", elapsed / 1e6, tid, comm);
printf("===========\n\n");
}
// tracepoint:exceptions:page_fault_user
// /@java_pid[pid]/
// {
// @page_fault_user[tid, comm, kstack(8)] = count();
// printf("%d page_fault_user(\"%s %d\", address=0x%lX, ip=0x%lX)\n", elapsed / 1e6, comm, tid, args->address, args->ip);
// }
kprobe:filemap_fault
/@java_pid[pid]/
{
@filemap_fault[tid, comm, kstack(8)] = count();
printf("%d %-6d %-16s filemap_fault()\n", elapsed / 1e6, tid, comm);
@filemap_fault_kstack[ tid, comm, kstack(8)] = count();
@filemap_fault_ustack[ tid, comm, ustack(8)] = count();
}
kretfunc:filemap_fault
/@java_pid[pid]/
{
printf("%d %-6d %-16s kretfunc:filemap_fault()\n", elapsed / 1e6, tid, comm);
}
// tracepoint:block:block_rq_complete,
// tracepoint:block:block_bio_complete
// /@java_pid[pid]/
// {
// @block_bio_complete[pid, tid, comm, kstack(8)] = count();
// }
kretfunc:ext4_mpage_readpages
/@java_pid[pid]/
{
$page = args->page;
$node = args->inode;
$rac = args->rac;
$nr_pages = $rac->_nr_pages;
printf ("%d %-6d %-16s kretfunc:ext4_mpage_readpages %ld %s\n", elapsed / 1e6, tid, comm, $rac->_index * 4096, str($rac->file->f_path.dentry->d_name.name));
@ext4_mpage_readpages[ tid, comm, kstack(8)] = count();
// @ext4_mpage_readpages_ustack[ tid, comm, ustack(8)] = count();
}
// kprobe:ext4_mpage_readpages
// /@java_pid[pid]/
// {
// printf ("%d kprobe:ext4_mpage_readpages %d %s\n", elapsed / 1e6, tid, comm);
// }
// tracepoint:syscalls:sys_enter_sync,
// tracepoint:syscalls:sys_enter_syncfs,
// tracepoint:syscalls:sys_enter_fsync,
// tracepoint:syscalls:sys_enter_fdatasync,
// tracepoint:syscalls:sys_enter_sync_file_range*,
// tracepoint:syscalls:sys_enter_msync
// /@java_pid[pid]/
// {
// time("%H:%M:%S ");
// printf("sync syscall: %-6d %-16s %s\n", pid, comm, probe);
// // if( @vm_thread_waiting_sp_sync[tid] ) {
// @sync_call[pid, tid, comm, probe, ustack(6)] = count();
// printf("sp sync_call: %-6d %-16s %s\n", pid, comm, probe);
// // }
// }
END
{}執行
env LD_LIBRARY_PATH=/lib/libc6-prof/x86_64-linux-gnu /usr/lib/jvm/java-17-openjdk-amd64/bin/java '-Xlog:safepoint,gc=info:stdout:level,tags,time,uptime,pid' -XX:+UnlockDiagnosticVMOptions -XX:+PreserveFramePointer -Xms128M -Xmx128M -XX:+AlwaysPreTouch -cp . TestMMap /mnt/dm1/mapped.filesudo bpftrace ./trace-safepoint-mmap2.bt跟蹤輸出：
37507 568704 java filemap_fault()
37507 568704 java kretfunc:ext4_mpage_readpages 1026187264 mapped.file
38521 568704 java kretfunc:filemap_fault()
38531 568704 java filemap_fault()
38531 568704 java kretfunc:ext4_mpage_readpages 116322304 mapped.file
39549 568704 java kretfunc:filemap_fault()
39569 568704 java filemap_fault()
39569 568704 java kretfunc:ext4_mpage_readpages 960757760 mapped.file
40601 568704 java kretfunc:filemap_fault()
40632 568704 java filemap_fault() <--- Page Fault START
40632 568704 java kretfunc:ext4_mpage_readpages 484405248 mapped.file
41386 568719 VM Thread SafepointSynchronize::begin <-- waiting for safepoint reach START
41657 568704 java kretfunc:filemap_fault() <-- Page Fault END
41658 568719 VM Thread RuntimeService::record_safepoint_synchronized <-- waiting for safepoint reach END
41658 568719 VM Thread SafepointSynchronize::end
===========
41669 568704 java filemap_fault()
41669 568704 java kretfunc:ext4_mpage_readpages 43298816 mapped.file
42681 568704 java kretfunc:filemap_fault()
42691 568704 java filemap_fault()
42691 568704 java kretfunc:ext4_mpage_readpages 828358656 mapped.file
43709 568704 java kretfunc:filemap_fault()
43719 568704 java filemap_fault()
43719 568704 java kretfunc:ext4_mpage_readpages 191881216 mapped.file
44732 568704 java kretfunc:filemap_fault()
44743 568704 java filemap_fault() <--- Page Fault START
44743 568704 java kretfunc:ext4_mpage_readpages 905154560 mapped.file
45574 568719 VM Thread SafepointSynchronize::begin <-- waiting for safepoint reach START
45753 568704 java kretfunc:filemap_fault()) <-- Page Fault END
45754 568719 VM Thread RuntimeService::record_safepoint_synchronized <-- waiting for safepoint reach END
45755 568719 VM Thread SafepointSynchronize::end可見隱患的確存在。只是視環境條件是否滿足，爆不爆發而已。
如果用回沒有 IO 卡頓的盤試試：
env LD_LIBRARY_PATH=/lib/libc6-prof/x86_64-linux-gnu /usr/lib/jvm/java-17-openjdk-amd64/bin/java '-Xlog:safepoint,gc=info:stdout:level,tags,time,uptime,pid' -XX:+UnlockDiagnosticVMOptions -XX:+PreserveFramePointer -Xms128M -Xmx128M -XX:+AlwaysPreTouch -cp . TestMMap /tmp/mapped.file問題不存在。
雲原生下可能加劇的問題
-
worker node 共享內存 或 container limit 內存後，Direct Page Reclaim
在雲環境下，一台機器可能運行很多 container 。有的 container 是高 IO 的應用，如寫日誌，這些都會佔用 page cache 和對共享的 disk 產生爭用壓力 。 整機的內存不足，或者是 container 本身的內存不足，都可能觸發 Direct Page Reclaim
- worker node 共享本地磁盤 IO 爭用
- Ceph 等 PV 網絡盤穩定性遠不如本地盤，帶寬與 latency 相對不穩定。
如以下一個配置，多個 container 可能共享了 emptyDir 用的本地盤。然後在 IO 爭用時，寫 GC 日誌就可能出現 STW 下的高 latency ，直接導致服務 API latency 超時。
apiVersion: v1
kind: Pod
metadata:
annotations:
labels:
name: xyz
spec:
containers:
- command: java ... -Xloggc:/usr/share/myapp/logs/gc.log ...
...
volumeMounts:
- mountPath: /usr/share/myapp/logs
name: myapp-logs
volumes:
- emptyDir: {}
name: myapp-logs結語
後面，我會寫另外兩編文章：《eBPF 求證坊間傳聞：Java GC 日誌可導致整個 JVM 服務卡頓？》、《如何測量 進程級別的 IO 延遲》
附錄
Linux 如何模擬 IO 卡頓
網上能搜索到的模擬 IO 卡頓大概有兩個方法：
-
device mapper delay 法
- Emulate a slow block device with dm-delay - Christophe Vu-Brugier
- Emulate a slow block device with dm-delay - flamingbytes
- dm-delay
-
systemtap 注入延遲法
- 巧用Systemtap注入延遲模擬IO設備抖動
- 使用SystemTap給I/O設備註入延遲
本文用的是 device mapper delay 法。device 本身帶了一個 delay。
# load the brd kernel module. rd_nr is the maximum number of ramdisks. rd_size is the ramdisk size in KB.
sudo modprobe brd rd_nr=1 rd_size=1048576
ls -l /dev/ram0
brw-rw---- 1 root disk 1, 0 Aug 24 20:00 /dev/ram0
sudo blockdev --getsize /dev/ram0 # Display the size in 512-byte sectors
2097152
#We specify the read write delay as 200ms, specify the write latency(e.g. 100ms) as below.
size=$(sudo blockdev --getsize /dev/ram0)
sudo dmsetup remove delayed
echo "0 $size delay /dev/ram0 0 200" | sudo dmsetup create delayed
sudo dmsetup table delayed
0 2097152 delay 1:0 0 50
ls -la /dev/mapper/ | grep delayed
lrwxrwxrwx 1 root root 7 May 19 18:37 delayed -> ../dm-0
sudo mkfs.ext4 /dev/dm-0
sudo mkdir /mnt/dm1
sudo mount /dev/dm-0 /mnt/dm1
cd /mnt/dm1另外如果 debug 需要，可以掛起 device ，直接讓 mapper device 的所有 IO 操作進程掛起（uninterruptable_sleep）：
# 掛起
sudo dmsetup suspend /dev/$your_dm_dev
# 恢復
sudo dmsetup resume /dev/$your_dm_devUbuntu 下的 BPF 跟蹤堆棧由於 -fno-omit-frame-pointer 的 glibc 缺失的問題
sudo apt install libc6-prof
env LD_LIBRARY_PATH=/lib/libc6-prof/x86_64-linux-gnu /usr/lib/jvm/java-17-openjdk-amd64/bin/java ...TL;DR :
https://bugs.launchpad.net/ubuntu/+source/glibc/+bug/1908307
