在實時數據處理的完整鏈路中，數據輸出（Sink）是最後一個關鍵環節，它負責將處理後的結果傳遞到外部系統供後續使用。Flink提供了豐富的數據輸出連接器，支持將數據寫入Kafka、Elasticsearch、文件系統、數據庫等各種目標系統。本文將深入探討Flink數據輸出的核心概念、配置方法和最佳實踐，並基於Flink 1.20.1構建一個完整的數據輸出案例。

一、Flink Sink概述

1. 什麼是Sink

Sink（接收器）是Flink數據處理流水線的末端，負責將計算結果輸出到外部存儲系統或下游處理系統。在Flink的編程模型中，Sink是DataStream API中的一個轉換操作，它接收DataStream並將數據寫入指定的外部系統。

2. Sink的分類

Flink的Sink連接器可以分為以下幾類：

內置Sink：如print()、printToErr()等用於調試的內置輸出
文件系統Sink：支持寫入本地文件系統、HDFS等
消息隊列Sink：如Kafka、RabbitMQ等
數據庫Sink：如JDBC、Elasticsearch等
自定義Sink：通過實現SinkFunction接口自定義輸出邏輯

3. 輸出語義保證

Flink為Sink提供了三種輸出語義保證：

最多一次（At-most-once）：數據可能丟失，但不會重複
至少一次（At-least-once）：數據不會丟失，但可能重複
精確一次（Exactly-once）：數據既不會丟失，也不會重複

這些語義保證與Flink的檢查點（Checkpoint）機制密切相關，我們將在後面詳細討論。

二、環境準備與依賴配置

1. 版本説明

Flink：1.20.1
JDK：17+
Gradle：8.3+
外部系統：Kafka 3.4.0、Elasticsearch 7.17.0、MySQL 8.0

2. 核心依賴

dependencies {
    // Flink核心依賴
    implementation 'org.apache.flink:flink_core:1.20.1'
    implementation 'org.apache.flink:flink-streaming-java:1.20.1'
    implementation 'org.apache.flink:flink-clients:1.20.1'

    // Kafka Connector
    implementation 'org.apache.flink:flink-connector-kafka:3.4.0-1.20'

    // Elasticsearch Connector
    implementation 'org.apache.flink:flink-connector-elasticsearch7:3.1.0-1.20'

    // JDBC Connector
    implementation 'org.apache.flink:flink-connector-jdbc:3.3.0-1.20'
    implementation 'mysql:mysql-connector-java:8.0.33'

    // FileSystem Connector
    implementation 'org.apache.flink:flink-connector-files:1.20.1'

}

三、基礎Sink操作

1. 內置調試Sink

Flink提供了一些內置的Sink用於開發和調試階段：

import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

public class BasicSinkDemo {
    public static void main(String[] args) throws Exception {
        // 創建執行環境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        // 創建數據源
        DataStream<String> stream = env.fromElements("Hello", "Flink", "Sink");

        // 打印到標準輸出
        stream.print("StandardOutput");

        // 打印到標準錯誤輸出
        stream.printToErr("ErrorOutput");

        // 執行作業
        env.execute("Basic Sink Demo");
    }
}

2. 文件系統Sink

Flink支持將數據寫入本地文件系統、HDFS等。下面是一個寫入本地文件系統的示例：

package com.cn.daimajiangxin.flink.sink;

import org.apache.flink.api.common.serialization.SimpleStringEncoder;
import org.apache.flink.configuration.MemorySize;
import org.apache.flink.connector.file.sink.FileSink;
import org.apache.flink.core.fs.Path;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.sink.filesystem.RollingPolicy;
import org.apache.flink.streaming.api.functions.sink.filesystem.rollingpolicies.DefaultRollingPolicy;

import java.time.Duration;

public class FileSystemSinkDemo {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        DataStream<Object> stream = env.fromData("Hello", "Flink", "FileSystem", "Sink");
        RollingPolicy<Object, String> rollingPolicy = DefaultRollingPolicy.<Object, String>builder()
                .withRolloverInterval(Duration.ofMinutes(15))
                .withInactivityInterval(Duration.ofMinutes(5))
                .withMaxPartSize(MemorySize.ofMebiBytes(64))
                .build();

        // 創建文件系統Sink
        FileSink<Object> sink = FileSink
                .forRowFormat(new Path("file:///tmp/flink-output"), new SimpleStringEncoder<>())
                .withRollingPolicy(rollingPolicy)
                .build();
        // 添加Sink
        stream.sinkTo(sink);
        env.execute("File System Sink Demo");
    }
}

四、高級Sink連接器

1. Kafka Sink

Kafka是實時數據處理中常用的消息隊列，Flink提供了強大的Kafka Sink支持：

import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.connector.kafka.sink.KafkaRecordSerializationSchema;
import org.apache.flink.connector.kafka.sink.KafkaSink;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

import java.util.Properties;

public class KafkaSinkDemo {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        // 開啓檢查點以支持Exactly-Once語義
        env.enableCheckpointing(5000);

        DataStream<String> stream = env.fromElements("Hello Kafka", "Flink to Kafka", "Data Pipeline");

        // Kafka配置
        Properties props = new Properties();
        props.setProperty("bootstrap.servers", "localhost:9092");

        // 創建Kafka Sink
        KafkaSink<String> sink = KafkaSink.<String>
                builder()
                .setKafkaProducerConfig(props)
                .setRecordSerializer(KafkaRecordSerializationSchema.builder()
                        .setTopic("flink-output-topic")
                        .setValueSerializationSchema(new SimpleStringSchema())
                        .build())
                .build();

        // 添加Sink
        stream.sinkTo(sink);

        env.execute("Kafka Sink Demo");
    }
}

kafka消息隊列消息：
20250929104749

2. Elasticsearch Sink

Elasticsearch是一個實時的分佈式搜索和分析引擎，非常適合存儲和查詢Flink處理的實時數據：

package com.cn.daimajiangxin.flink.sink;

import com.fasterxml.jackson.databind.ObjectMapper;
import org.apache.flink.connector.elasticsearch.sink.Elasticsearch7SinkBuilder;
import org.apache.flink.connector.elasticsearch.sink.ElasticsearchSink;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.http.HttpHost;
import org.elasticsearch.action.index.IndexRequest;
import org.elasticsearch.client.Requests;

import java.util.Map;

public class ElasticsearchSinkDemo {
    private static final ObjectMapper objectMapper = new ObjectMapper();
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.enableCheckpointing(5000);


        DataStream<String> stream = env.fromData(
                "{\"id\":\"1\",\"name\":\"Flink\",\"category\":\"framework\"}",
                "{\"id\":\"2\",\"name\":\"Elasticsearch\",\"category\":\"database\"}");

        // 配置Elasticsearch節點
        HttpHost httpHost=new HttpHost("localhost", 9200, "http");

        // 創建Elasticsearch Sink
        ElasticsearchSink<String> sink=new Elasticsearch7SinkBuilder<String>()
                .setBulkFlushMaxActions(10)        // 批量操作數量
                .setBulkFlushInterval(5000)          // 批量刷新間隔（毫秒）
                .setHosts(httpHost)
                .setConnectionRequestTimeout(60000)  // 連接請求超時時間
                .setConnectionTimeout(60000)         // 連接超時時間
                .setSocketTimeout(60000)             // Socket 超時時間
                .setEmitter((element, context, indexer) -> {
                    try {
                        Map<String, Object> json = objectMapper.readValue(element, Map.class);
                        IndexRequest request = Requests.indexRequest()
                                .index("flink_documents")
                                .id((String) json.get("id"))
                                .source(json);
                        indexer.add(request);
                    } catch (Exception e) {
                        // 處理解析異常
                        System.err.println("Failed to parse JSON: " + element);
                    }
                })
                .build();

        // 添加Sink
        stream.sinkTo(sink);

        env.execute("Elasticsearch Sink Demo");
    }
}

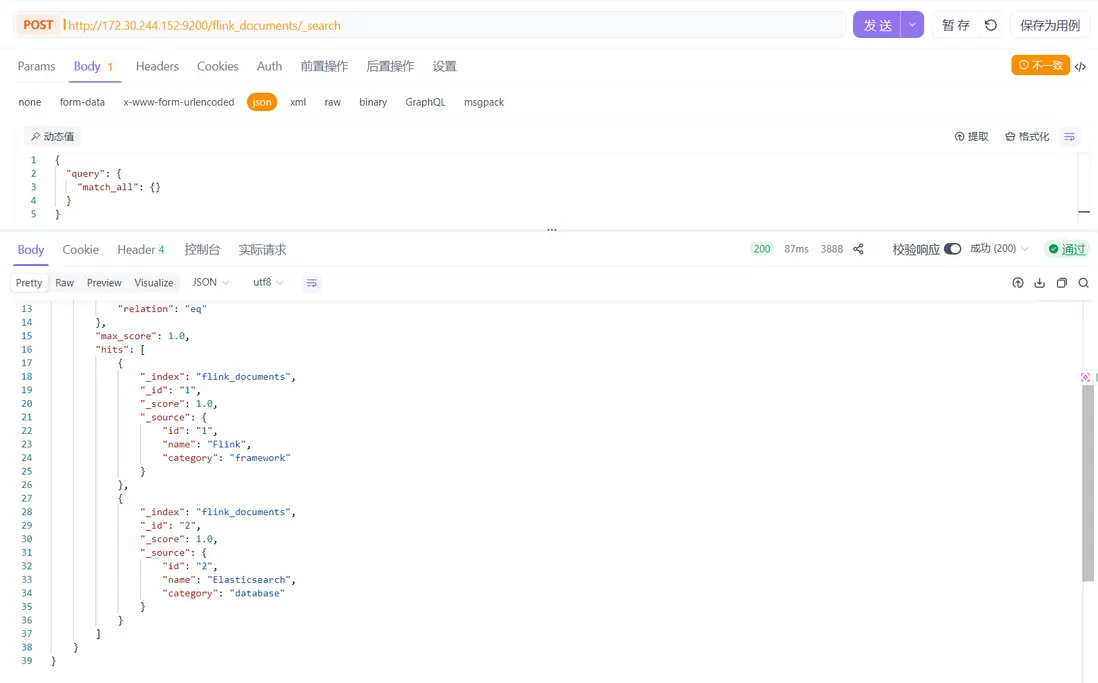

使用post工具查看數據
wechat_2025-09-29_180718_279

3. JDBC Sink

使用JDBC Sink可以將數據寫入各種關係型數據庫：

package com.cn.daimajiangxin.flink.sink;

import org.apache.flink.connector.jdbc.JdbcConnectionOptions;
import org.apache.flink.connector.jdbc.JdbcExecutionOptions;
import org.apache.flink.connector.jdbc.JdbcStatementBuilder;
import org.apache.flink.connector.jdbc.core.datastream.Jdbc;
import org.apache.flink.connector.jdbc.core.datastream.sink.JdbcSink;
import org.apache.flink.connector.jdbc.datasource.statements.SimpleJdbcQueryStatement;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

import java.util.Arrays;
import java.util.List;

public class JdbcSinkDemo {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.enableCheckpointing(5000);
        List<User> userList = Arrays.asList(     new User(1, "Alice", 25,"alice"),
                new User(2, "Bob", 30,"bob"),
                new User(3, "Charlie", 35,"charlie"));
        // 模擬用户數據
        DataStream<User> userStream = env.fromData(userList);

        JdbcExecutionOptions jdbcExecutionOptions = JdbcExecutionOptions.builder()
                .withBatchSize(1000)
                .withBatchIntervalMs(200)
                .withMaxRetries(5)
                .build();
        JdbcConnectionOptions connectionOptions = new JdbcConnectionOptions.JdbcConnectionOptionsBuilder()
                .withUrl("jdbc:mysql://localhost:3306/test")
                .withDriverName("com.mysql.cj.jdbc.Driver")
                .withUsername("username")
                .withPassword("password")
                .build();
        String insertSql = "INSERT INTO user (id, name, age, user_name) VALUES (?, ?, ?, ?)";
        JdbcStatementBuilder<User> statementBuilder = (statement, user) -> {
            statement.setInt(1, user.getId());
            statement.setString(2, user.getName());
            statement.setInt(3, user.getAge());
            statement.setString(4, user.getUserName());
        };
        // 創建JDBC Sink

        JdbcSink<User> jdbcSink = new Jdbc().<User>sinkBuilder()
                .withQueryStatement( new SimpleJdbcQueryStatement<User>(insertSql,statementBuilder))
                .withExecutionOptions(jdbcExecutionOptions)
                .buildAtLeastOnce(connectionOptions);
        // 添加Sink
        userStream.sinkTo(jdbcSink);
        env.execute("JDBC Sink Demo");
    }

    // 用户實體類
    public static class User {
        private int id;
        private String name;
        private String userName;
        private int age;

        public User(int id, String name, int age,String userName) {
            this.id = id;
            this.name = name;
            this.age = age;
            this.userName=userName;
        }

        public int getId() {
            return id;
        }

        public String getName() {
            return name;
        }

        public int getAge() {
            return age;
        }

        public String getUserName() {
            return userName;
        }
    }
}

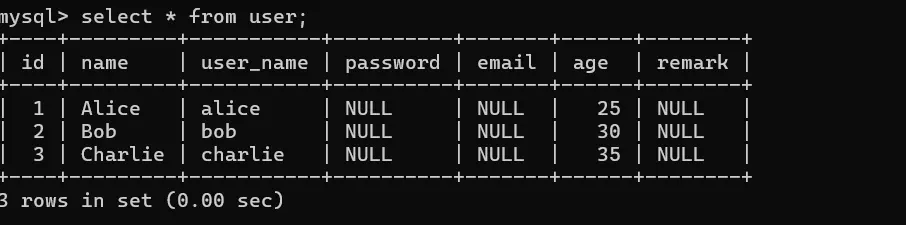

登錄mysql客户端查看數據
20250930113343

五、Sink的可靠性保證機制

1. 檢查點與保存點

Flink的檢查點（Checkpoint）機制是實現精確一次語義的基礎。當開啓檢查點後，Flink會定期將作業的狀態保存到持久化存儲中。如果作業失敗，Flink可以從最近的檢查點恢復，確保數據不會丟失。

// 配置檢查點
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

// 啓用檢查點，間隔5000ms
env.enableCheckpointing(5000);

// 配置檢查點模式為EXACTLY_ONCE（默認）
env.getCheckpointConfig().setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);

// 設置檢查點超時時間
env.getCheckpointConfig().setCheckpointTimeout(60000);

// 設置最大並行檢查點數量
env.getCheckpointConfig().setMaxConcurrentCheckpoints(1);

// 開啓外部化檢查點，作業失敗時保留檢查點
env.getCheckpointConfig().enableExternalizedCheckpoints(
    CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);

2. 事務與二階段提交

對於支持事務的外部系統，Flink使用二階段提交（Two-Phase Commit）協議來實現精確一次語義：

第一階段（預提交）：Flink將數據寫入外部系統的預提交區域，但不提交
第二階段（提交）：所有算子完成預提交後，Flink通知外部系統提交數據

這種機制確保了即使在作業失敗或恢復的情況下，數據也不會被重複寫入或丟失。

3. 不同Sink的語義保證級別

不同的Sink連接器支持不同級別的語義保證：

支持精確一次（Exactly-once）：Kafka、Elasticsearch（版本支持）、文件系統（預寫日誌模式）
支持至少一次（At-least-once）：JDBC、Redis、RabbitMQ
最多一次（At-most-once）：簡單的無狀態輸出

六、自定義Sink實現

當Flink內置的Sink連接器不能滿足需求時，我們可以通過實現SinkFunction接口來自定義Sink：

package com.cn.daimajiangxin.flink.sink;

import org.apache.flink.api.common.functions.RuntimeContext;
import org.apache.flink.api.connector.sink2.Sink;
import org.apache.flink.api.connector.sink2.SinkWriter;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.sink.RichSinkFunction;

import java.io.IOException;

public class CustomSinkDemo {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        DataStream<String> stream = env.fromElements("Custom", "Sink", "Example");

        // 使用自定義Sink
        stream.sinkTo(new CustomSink());

        env.execute("Custom Sink Demo");
    }

    // 自定義Sink實現 - 使用新API
    public static class CustomSink implements Sink<String> {

        @Override
        public SinkWriter<String> createWriter(InitContext context) {
            return new CustomSinkWriter();
        }

        // SinkWriter負責實際的數據寫入邏輯
        private static class CustomSinkWriter implements SinkWriter<String> {

            // 初始化資源
            public CustomSinkWriter() {
                // 初始化連接、客户端等資源
                System.out.println("CustomSink initialized");
            }

            // 處理每個元素
            @Override
            public void write(String value, Context context)  throws IOException, InterruptedException {
                // 實際的寫入邏輯
                System.out.println("Writing to custom sink: " + value);
            }

            // 刷新緩衝區
            @Override
            public void flush(boolean endOfInput) {
                // 刷新邏輯（如果需要）
            }

            // 清理資源
            @Override
            public void close() throws Exception {
                // 關閉連接、客户端等資源
                System.out.println("CustomSink closed");
            }
        }
    }

}

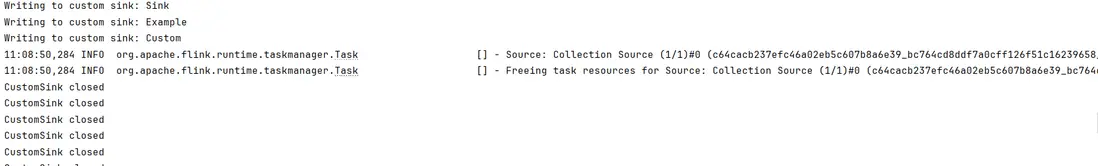

sad20251006111134

七、實戰案例：實時數據處理流水線

下面我們將構建一個完整的實時數據處理流水線，從Kafka讀取數據，進行轉換處理，然後輸出到多個目標系統：

1. 系統架構

Kafka Source -> Flink Processing -> Multiple Sinks
                               |-> Kafka Sink
                               |-> Elasticsearch Sink
                               |-> JDBC Sink

2. 數據模型

我們將使用日誌數據模型，定義一個LogEntry類來表示日誌條目：

package com.cn.daimajiangxin.flink.sink;

public class LogEntry {
    private String timestamp;
    private String logLevel;
    private String source;
    private String message;

    public String getTimestamp() {
        return timestamp;
    }

    public void setTimestamp(String timestamp) {
        this.timestamp = timestamp;
    }

    public String getLogLevel() {
        return logLevel;
    }

    public void setLogLevel(String logLevel) {
        this.logLevel = logLevel;
    }

    public String getSource() {
        return source;
    }

    public void setSource(String source) {
        this.source = source;
    }

    public String getMessage() {
        return message;
    }

    public void setMessage(String message) {
        this.message = message;
    }

    @Override
    public String toString() {
        return String.format("LogEntry{timestamp='%s', logLevel='%s', source='%s', message='%s'}",
                timestamp, logLevel, source, message);
    }
}

定義一個日誌統計實體類LogStats，用於表示每個源的日誌統計信息：

package com.cn.daimajiangxin.flink.sink;

public class LogStats {
    private String source;
    private long count;

    public LogStats() {
    }

    public LogStats(String source, long count) {
        this.source = source;
        this.count = count;
    }

    public String getSource() {
        return source;
    }

    public void setSource(String source) {
        this.source = source;
    }

    public long getCount() {
        return count;
    }

    public void setCount(long count) {
        this.count = count;
    }

    @Override
    public String toString() {
        return String.format("LogStats{source='%s', count=%d}", source, count);
    }
}

3. 完整實現代碼

package com.cn.daimajiangxin.flink.sink;

import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.connector.jdbc.JdbcConnectionOptions;
import org.apache.flink.connector.jdbc.JdbcExecutionOptions;
import org.apache.flink.connector.jdbc.JdbcStatementBuilder;
import org.apache.flink.connector.jdbc.core.datastream.Jdbc;
import org.apache.flink.connector.jdbc.core.datastream.sink.JdbcSink;
import org.apache.flink.connector.jdbc.datasource.statements.SimpleJdbcQueryStatement;
import org.apache.flink.connector.kafka.sink.KafkaRecordSerializationSchema;
import org.apache.flink.connector.kafka.sink.KafkaSink;
import org.apache.flink.connector.kafka.source.KafkaSource;
import org.apache.flink.connector.kafka.source.enumerator.initializer.OffsetsInitializer;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.connector.elasticsearch.sink.Elasticsearch7SinkBuilder;
import org.apache.flink.connector.elasticsearch.sink.ElasticsearchSink;
import org.apache.http.HttpHost;
import org.elasticsearch.action.index.IndexRequest;
import org.elasticsearch.client.Requests;

import java.sql.PreparedStatement;
import java.time.LocalDateTime;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Properties;

public class MultiSinkPipeline {
    public static void main(String[] args) throws Exception {
        // 1. 創建執行環境並配置檢查點
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.enableCheckpointing(5000);

        // 2. 創建Kafka Source
        KafkaSource<String> source = KafkaSource.<String>
                        builder()
                .setBootstrapServers("localhost:9092")
                .setTopics("logs-input-topic")
                .setGroupId("flink-group")
                .setStartingOffsets(OffsetsInitializer.earliest())
                .setValueOnlyDeserializer(new SimpleStringSchema())
                .build();

        // 3. 讀取數據並解析
        DataStream<String> kafkaStream = env.fromSource(source, WatermarkStrategy.noWatermarks(), "Kafka Source");

        // 解析日誌數據
        DataStream<LogEntry> logStream = kafkaStream
                .map(line -> {
                    String[] parts = line.split("\\|");
                    return new LogEntry(parts[0], parts[1], parts[2], parts[3]);
                })
                .name("Log Parser");

        // 4. 過濾錯誤日誌
        DataStream<LogEntry> errorLogStream = logStream
                .filter(log -> "ERROR".equals(log.getLogLevel()))
                .name("Error Log Filter");

        // 5. 配置並添加Kafka Sink - 輸出錯誤日誌
        // Kafka配置
        Properties props = new Properties();
        props.setProperty("bootstrap.servers", "localhost:9092");

        // 創建Kafka Sink
        KafkaSink<LogEntry> kafkaSink = KafkaSink.<LogEntry>builder()
                .setKafkaProducerConfig(props)
                .setRecordSerializer(KafkaRecordSerializationSchema.<LogEntry>builder()
                        .setTopic("error-logs-topic")
                        .setValueSerializationSchema(element -> element.toString().getBytes())
                        .build())
                .build();

        errorLogStream.sinkTo(kafkaSink).name("Error Logs Kafka Sink");

        // 6. 配置並添加Elasticsearch Sink - 存儲所有日誌
        // 配置Elasticsearch節點
        HttpHost httpHost=new HttpHost("localhost", 9200, "http");

        ElasticsearchSink<LogEntry> esSink = new Elasticsearch7SinkBuilder<LogEntry>()
                .setBulkFlushMaxActions(10)        // 批量操作數量
                .setBulkFlushInterval(5000)          // 批量刷新間隔（毫秒）
                .setHosts(httpHost)
                .setConnectionRequestTimeout(60000)  // 連接請求超時時間
                .setConnectionTimeout(60000)         // 連接超時時間
                .setSocketTimeout(60000)             // Socket 超時時間
                .setEmitter((element, context, indexer) -> {
                    Map<String, Object> json = new HashMap<>();
                    json.put("timestamp", element.getTimestamp());
                    json.put("logLevel", element.getLogLevel());
                    json.put("source", element.getSource());
                    json.put("message", element.getMessage());
                    IndexRequest request = Requests.indexRequest()
                            .index("logs_index")
                            .source(json);
                    indexer.add(request);
                })
                .build();

        logStream.sinkTo(esSink).name("Elasticsearch Sink");

        // 7. 配置並添加JDBC Sink - 存儲錯誤日誌統計
        // 先進行統計
        DataStream<LogStats> statsStream = errorLogStream
                .map(log -> new LogStats(log.getSource(), 1))
                .keyBy(LogStats::getSource)
                .sum("count")
                .name("Error Log Stats");
        JdbcExecutionOptions jdbcExecutionOptions = JdbcExecutionOptions.builder()
                .withBatchSize(1000)
                .withBatchIntervalMs(200)
                .withMaxRetries(5)
                .build();
        JdbcConnectionOptions connectionOptions = new JdbcConnectionOptions.JdbcConnectionOptionsBuilder()
                .withUrl("jdbc:mysql://localhost:3306/test")
                .withDriverName("com.mysql.cj.jdbc.Driver")
                .withUsername("mysql用户名")
                .withPassword("mysql密碼")
                .build();
        String insertSql = "INSERT INTO error_log_stats (source, count, last_updated) VALUES (?, ?, ?) " +
               "ON DUPLICATE KEY UPDATE count = count + VALUES(count), last_updated = VALUES(last_updated)";
        JdbcStatementBuilder<LogStats> statementBuilder = (statement, stats) -> {
            statement.setString(1, stats.getSource());
            statement.setLong(2, stats.getCount());
            statement.setTimestamp(3,  java.sql.Timestamp.valueOf(LocalDateTime.now()));
        };
        // 創建JDBC Sink
        JdbcSink<LogStats> jdbcSink = new Jdbc().<LogStats>sinkBuilder()
                .withQueryStatement( new SimpleJdbcQueryStatement<LogStats>(insertSql,statementBuilder))
                .withExecutionOptions(jdbcExecutionOptions)
                .buildAtLeastOnce(connectionOptions);
        statsStream.sinkTo(jdbcSink).name("JDBC Sink");
        // 8. 執行作業
        env.execute("Multi-Sink Data Pipeline");
    }

}

4. 測試與驗證

要測試這個完整的流水線，我們需要：

啓動Kafka並創建必要的主題：

# 創建輸入主題
kafka-topics.sh --create --topic logs-input-topic --bootstrap-server localhost:9092 --partitions 1 --replication-factor 1

# 創建錯誤日誌輸出主題
kafka-topics.sh --create --topic error-logs-topic --bootstrap-server localhost:9092 --partitions 1 --replication-factor 1

啓動Elasticsearch並確保服務正常運行

在MySQL中創建必要的表：

CREATE DATABASE test;
USE test;

CREATE TABLE error_log_stats (
  source VARCHAR(100) PRIMARY KEY,
  count BIGINT NOT NULL,
  last_updated TIMESTAMP NOT NULL
);

向Kafka發送測試數據：

kafka-console-producer.sh --topic logs-input-topic --bootstrap-server localhost:9092

# 輸入以下測試數據
2025-09-29 12:00:00|INFO|application-service|Application started successfully
2025-09-29 12:01:30|ERROR|database-service|Failed to connect to database
2025-09-29 12:02:15|WARN|cache-service|Cache eviction threshold reached
2025-09-29 12:03:00|ERROR|authentication-service|Invalid credentials detected

運行Flink作業並觀察數據流向各個目標系統

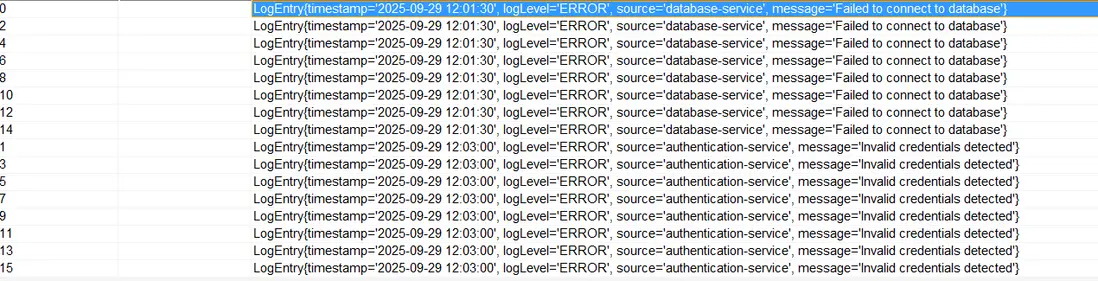

查看Kafka Sink中的數據：

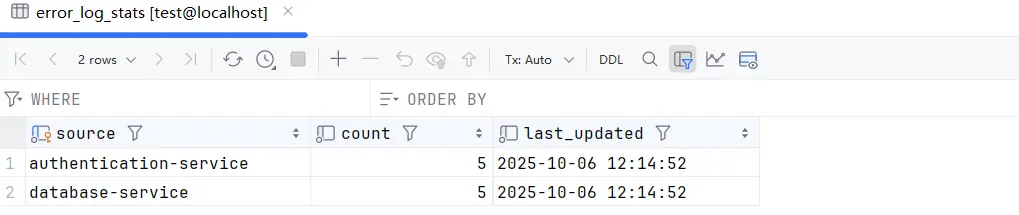

查看MySQL中的數據：

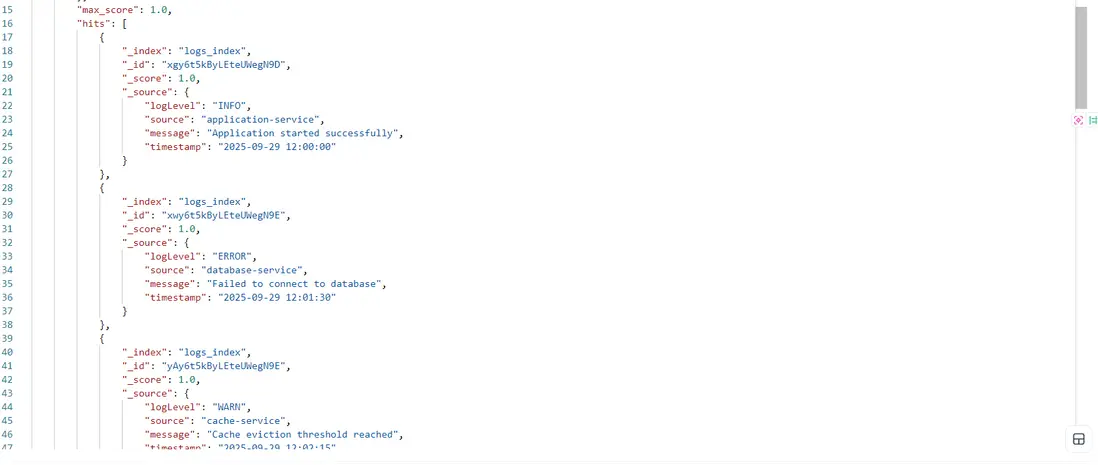

查看Elasticsearch中的數據：

八、性能優化與最佳實踐

1. 並行度配置

合理設置Sink的並行度可以顯著提高吞吐量：

// 為特定Sink設置並行度
stream.addSink(sink).setParallelism(4);

// 或為整個作業設置默認並行度
env.setParallelism(4);

2. 批處理配置

對於支持批處理的Sink，合理配置批處理參數可以減少網絡開銷：

// JDBC批處理示例
JdbcExecutionOptions.builder()
    .withBatchSize(1000)  // 每批次處理的記錄數
    .withBatchIntervalMs(200)  // 批處理間隔
    .withMaxRetries(3)  // 最大重試次數
    .build();

3. 背壓處理

當Sink無法處理上游數據時，會產生背壓。Flink提供了背壓監控和處理機制：

使用Flink Web UI監控背壓情況
考慮使用緩衝機制或調整並行度
對於關鍵路徑，實現自定義的背壓處理邏輯

4. 資源管理

合理管理連接和資源是保證Sink穩定運行的關鍵：

使用連接池管理數據庫連接
在RichSinkFunction的open()方法中初始化資源
在close()方法中正確釋放資源

5. 錯誤處理策略

為Sink配置適當的錯誤處理策略：

// 重試策略配置
env.setRestartStrategy(RestartStrategies.fixedDelayRestart(
    3,  // 最大重試次數
    Time.of(10, TimeUnit.SECONDS)  // 重試間隔
));

九、總結與展望

本文深入探討了Flink數據輸出（Sink）的核心概念、各種連接器的使用方法以及可靠性保證機制。我們學習瞭如何配置和使用內置Sink、文件系統Sink、Kafka Sink、Elasticsearch Sink和JDBC Sink，並通過自定義Sink擴展了Flink的輸出能力。最後，我們構建了一個完整的實時數據處理流水線，將處理後的數據輸出到多個目標系統。

在Flink的數據處理生態中，Sink是連接計算結果與外部世界的橋樑。通過選擇合適的Sink連接器並配置正確的參數，我們可以構建高效、可靠的數據處理系統。

源文來自：http://blog.daimajiangxin.com.cn

源碼地址：https://gitee.com/daimajiangxin/flink-learning

代碼匠心博客

代碼匠心博客

博客 / 詳情
